Lower Back Door: Adjustment

ADJUST DOOR IN FORWARD 7 REARWARD AND VERTICAL DIRECTIONS
Loosen the door side hinge bolts to adjust it.

Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

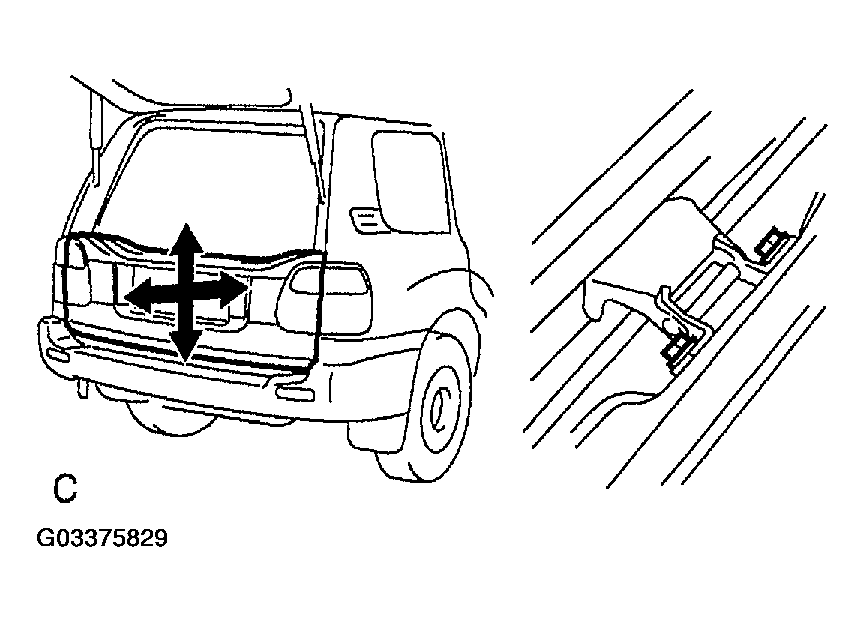

Fig 1: Adjusting Door In Forward/Rearward & Vertical Directions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR IN LEFT/RIGHT AND VERTICAL
DIRECTIONS Loosen the body side hinge bolts and the nuts to adjust it.

Torque: 31 N.m (316 kgf.cm, 23 ft.lbf)

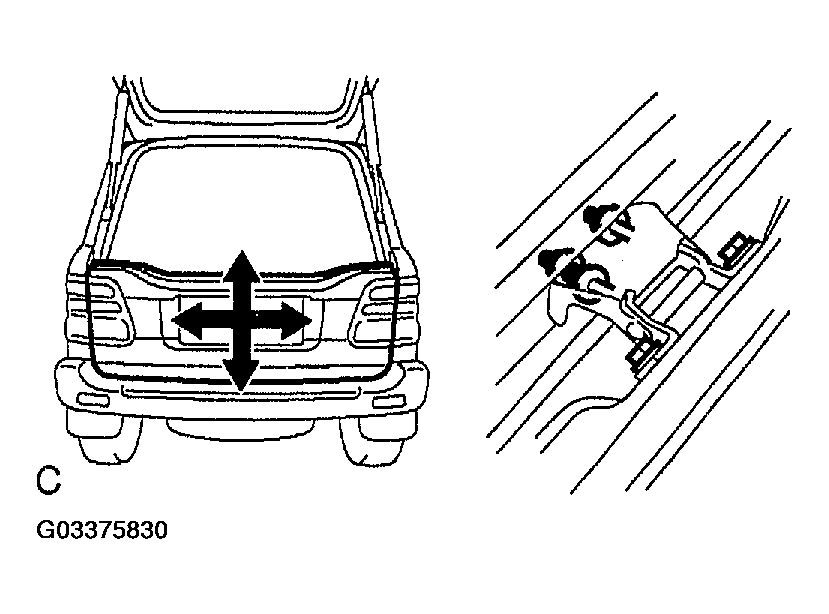

Fig 2: Adjusting Door In Left/Right & Vertical Direction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR LOCK STRIKER
1. Check that the door fits, and door linkages are adjusted correctly.
2. Using a torx wrench, loosen the door lock striker mounting screws.
  Torx wrench: T40 (Part No. 09042-00020 or locally manufactured tool)

  Torque: 11.5 N.m (117 kgf.cm, 8 ft.lbf)
3. Using a plastic hammer, tap the striker to adjust it.

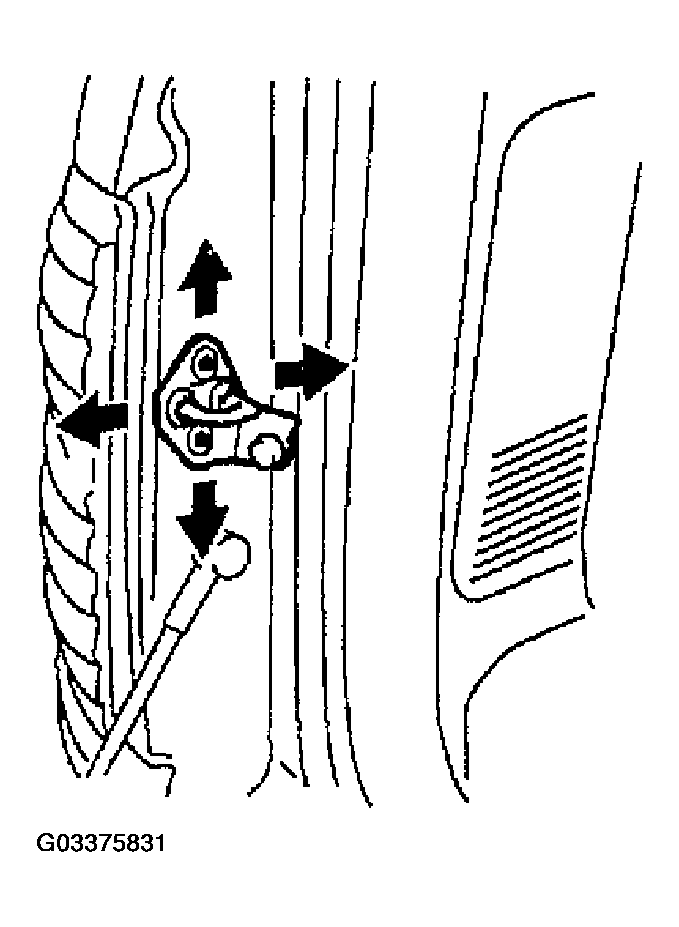

Fig 3: Adjusting Door Lock Striker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
