Wireless Door Lock Control System: Location

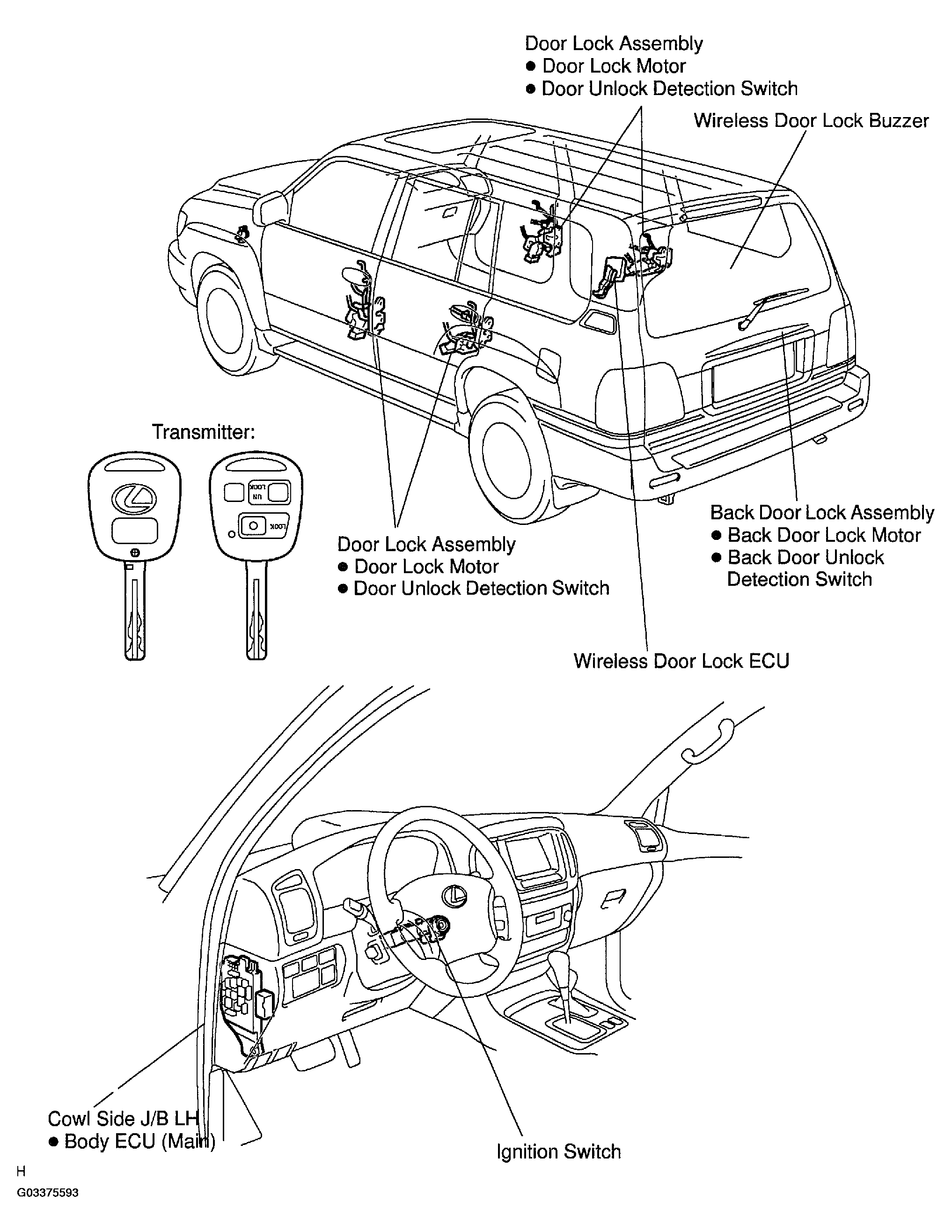

Fig 1: Locating Wireless Door Lock Components

G03375593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
