Automatic Transmission System: Operation

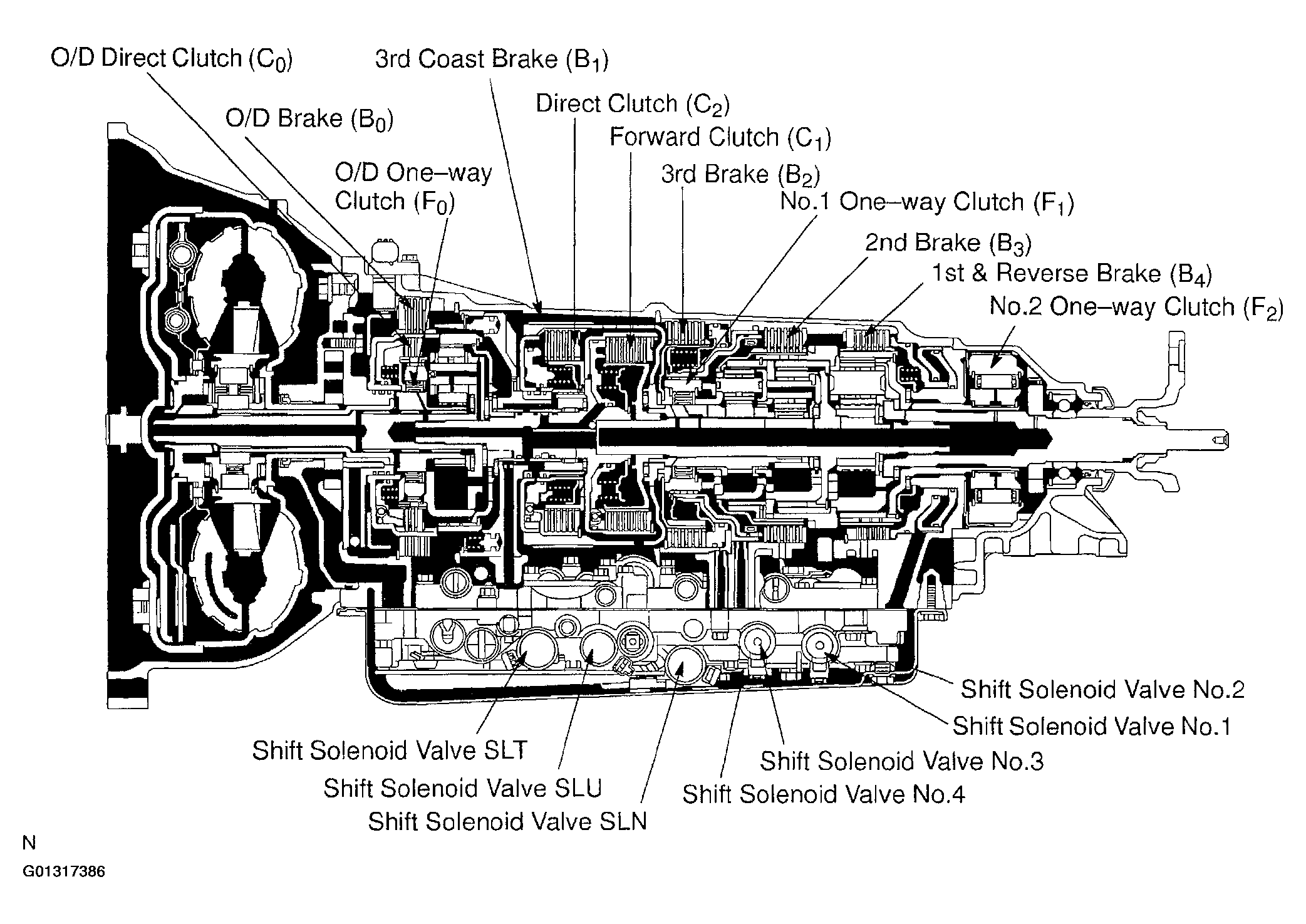

Fig 1: Identifying Operation

G01317386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

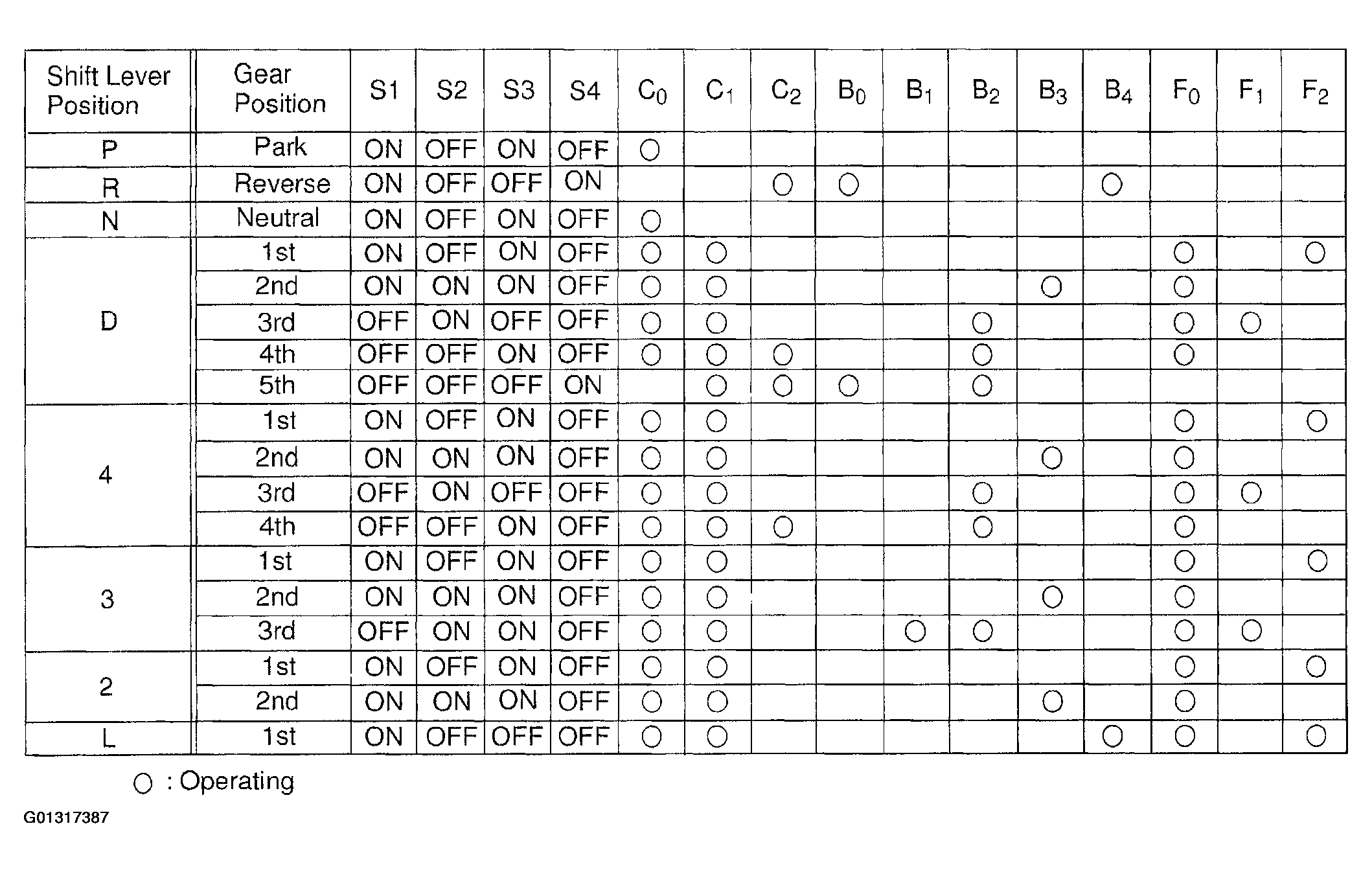

Fig 2: Shift Lever Position Chart

G01317387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
