Name Plate: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

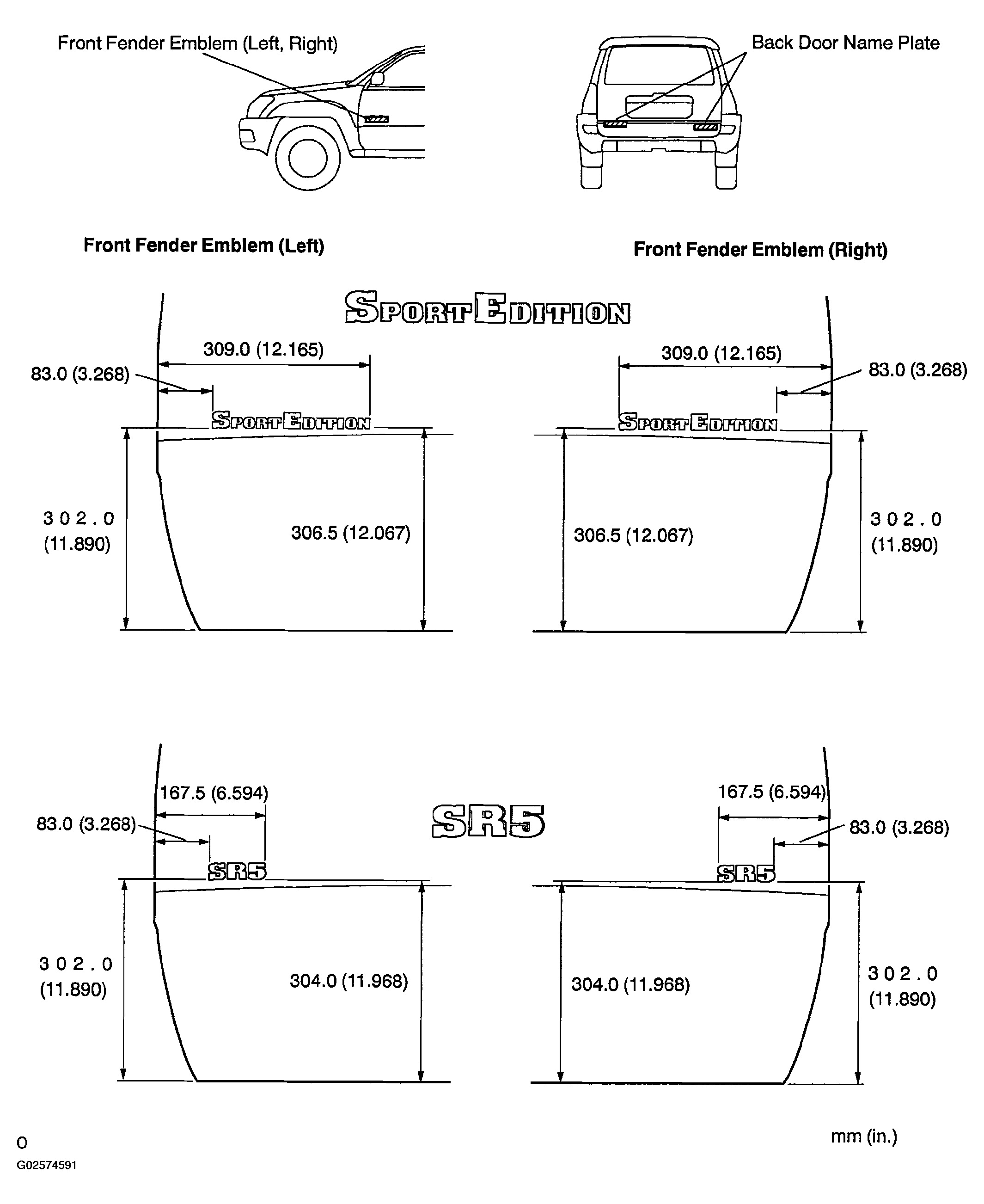

Fig 1: Replacing Name Plate (1 Of 3)
G02574591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

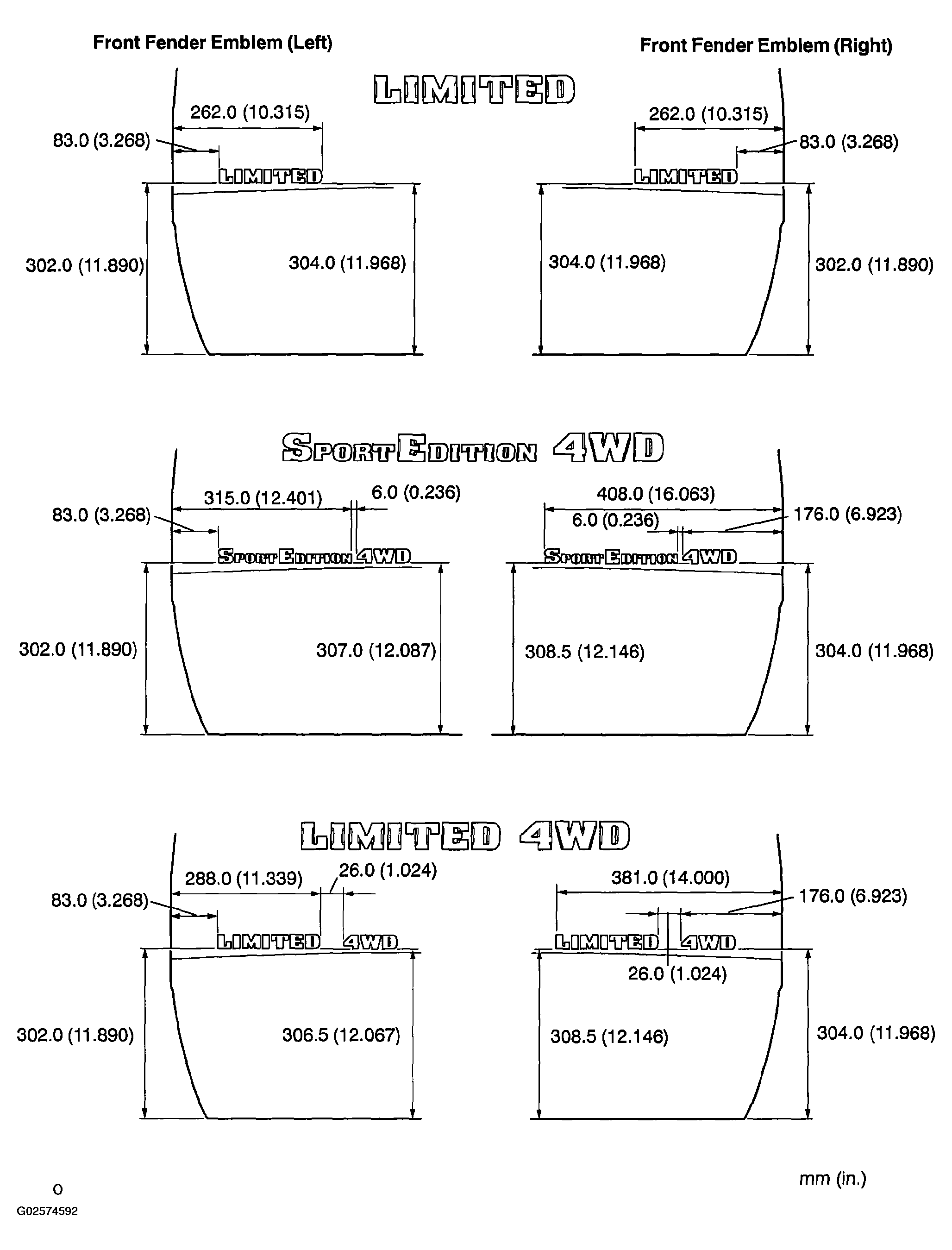

Fig 2: Replacing Name Plate (2 Of 3)
G02574592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

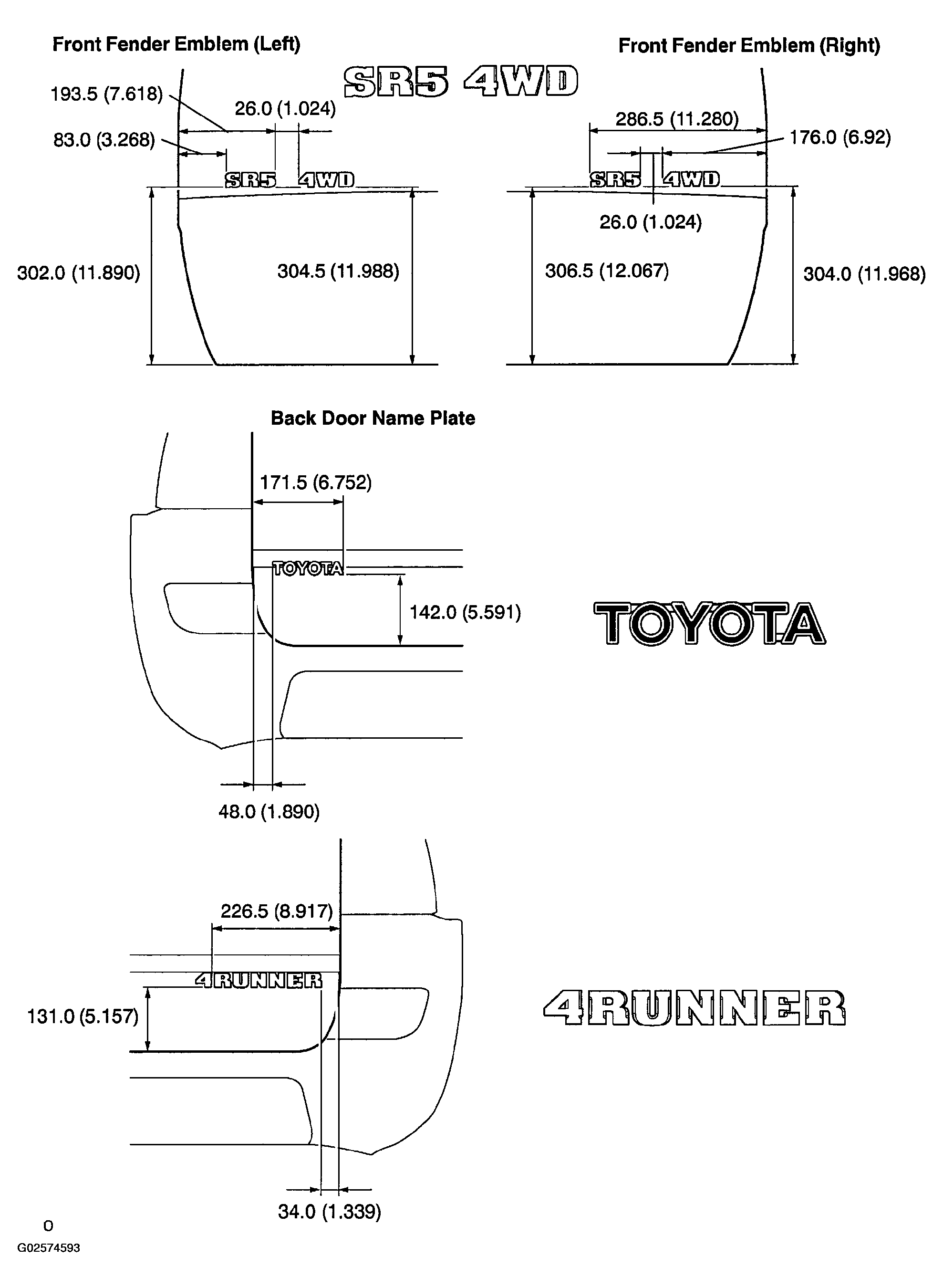

Fig 3: Replacing Name Plate (3 Of 3)
G02574593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
