Sliding Roof System: Inspection

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SLIDING ROOF MOTOR SWITCH ASSY
1. Remove the sliding roof motor switch
  (See REPLACEMENT ).
2. Check the continuity between the terminals when operating the switch.
Standard:

Fig 1: Terminal No Switch Operation And Specified Condition Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch.

Fig 2: Removing Sliding Roof Motor Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT HARNESS AND CONNECTOR (FOR SLIDING ROOF MOTOR ASSY)
1. Disconnect the sliding roof motor connector (See REPLACEMENT ).
2. Check the connector terminals of the wire harness side connector.
Standard:

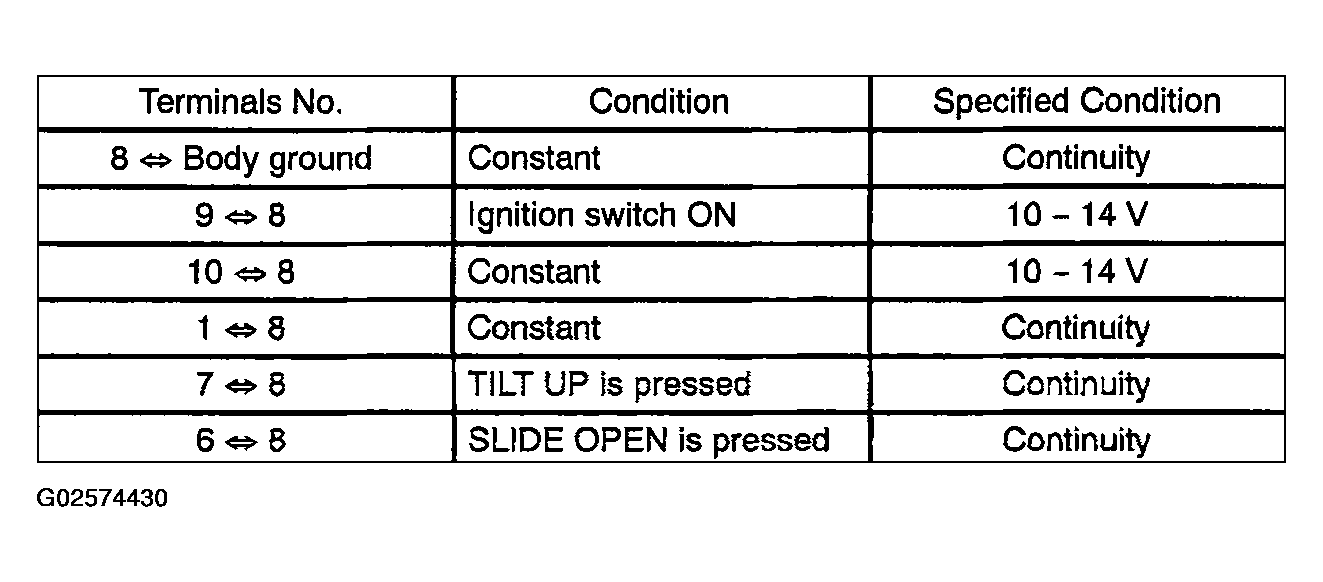

Fig 3: Terminal No Switch Operation And Specified Condition Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, there may be a malfunction on the wire harness side.

Fig 4: Identifying Sliding Roof Motor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
