Headlamp Unit ASSY LH: Replacement

HINT:

COMPONENTS: See HEADLAMP UNIT ASSY LH

1. REMOVE RADIATOR GRILLE LOWER (See  REPLACEMENT  )
2. REMOVE FRONT BUMPER FILLER LH
   1. Remove the screw and front bumper filler LH.
   Fig 1: Removing Screw And Front Bumper Filler LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE LH HEADLAMP ASSY
   1. Disconnect the connector.
   2. Remove the bolt, 3 screws and LH headlamp assy.

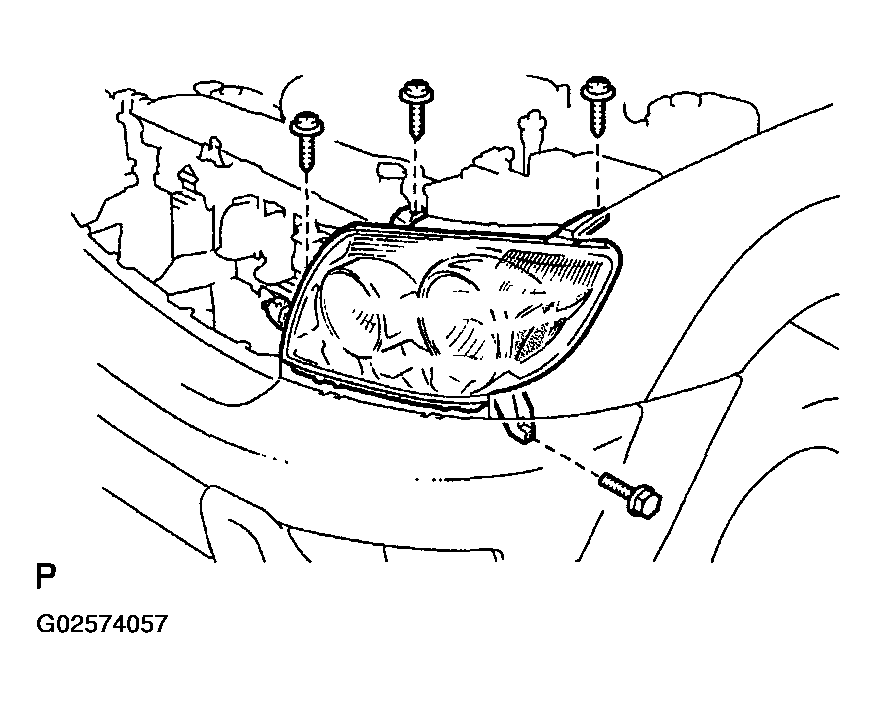

   Fig 2: Removing Bolt Screws And LH Headlamp Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE HEADLAMP, NO. 1 BULB
   1. Remove the headlamp, No.1 bulb as shown in Fig 3 .

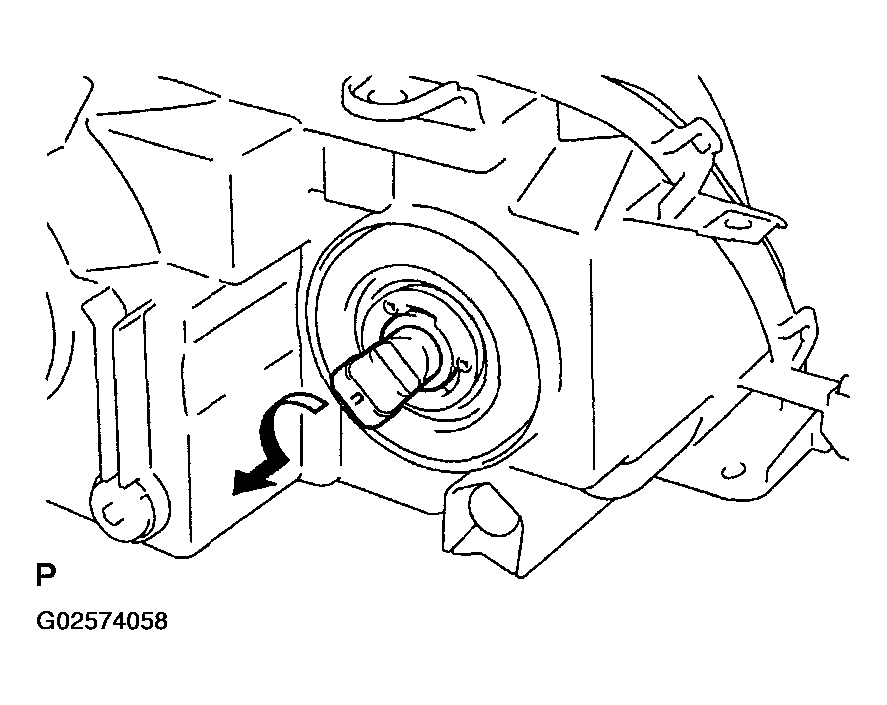

   Fig 3: Removing Headlamp, No.1 Bulb

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE HEADLAMP, NO. 2 BULB
   1. Remove the headlamp, No. 2 bulb as shown in Fig 4 .

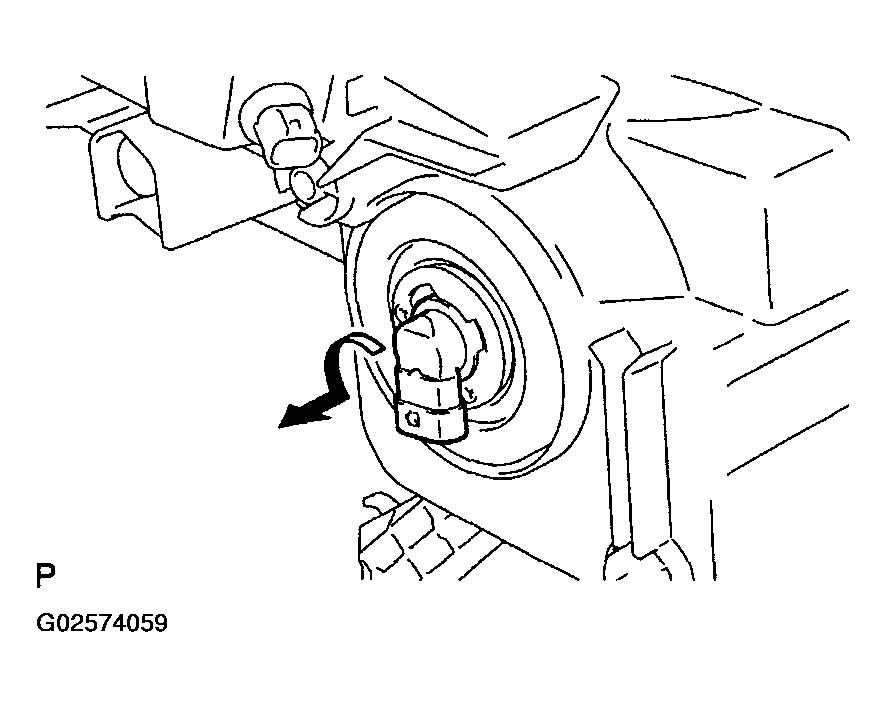

   Fig 4: Removing Headlamp, No. 2 Bulb

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE CLEARANCE LAMP BULB
   1. Remove the clearance lamp socket and clearance lamp bulb as shown in Fig 5 .
   2. Remove the clearance lamp bulb from the clearance lamp socket.
   Fig 5: Removing Clearance Lamp Bulb

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE CLEARANCE LAMP SOCKET
8. REMOVE HOOD TO FRONT END PANEL SEAL NO. 2
   1. Remove the hood to front end panel seal No.2 from the headlamp unit assy LH.

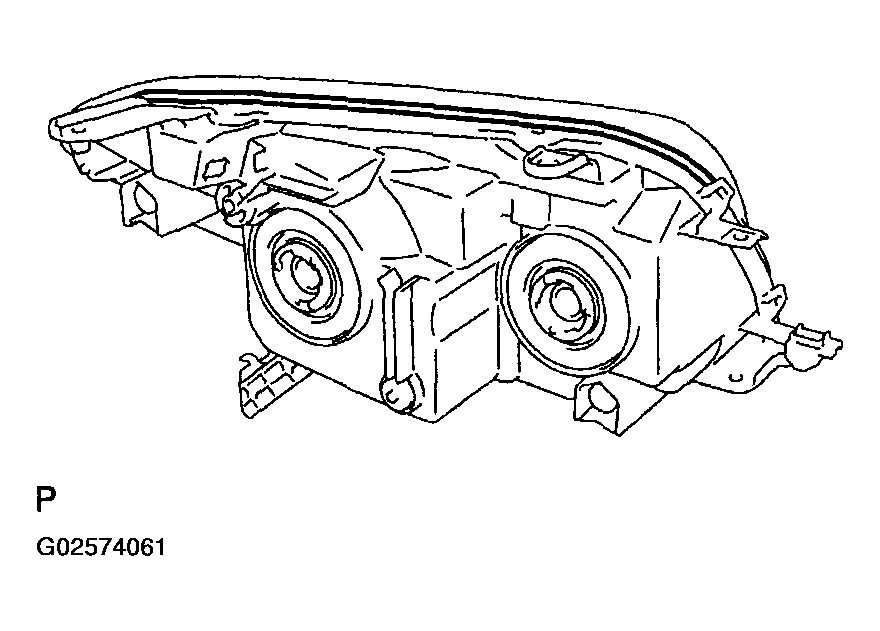

   Fig 6: Removing Hood To Front End Panel Seal No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE HEADLAMP UNIT ASSY LH
10. HEADLIGHT AIM ONLY (See  ADJUSTMENT   )
