Horn Button ASSY: Components

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

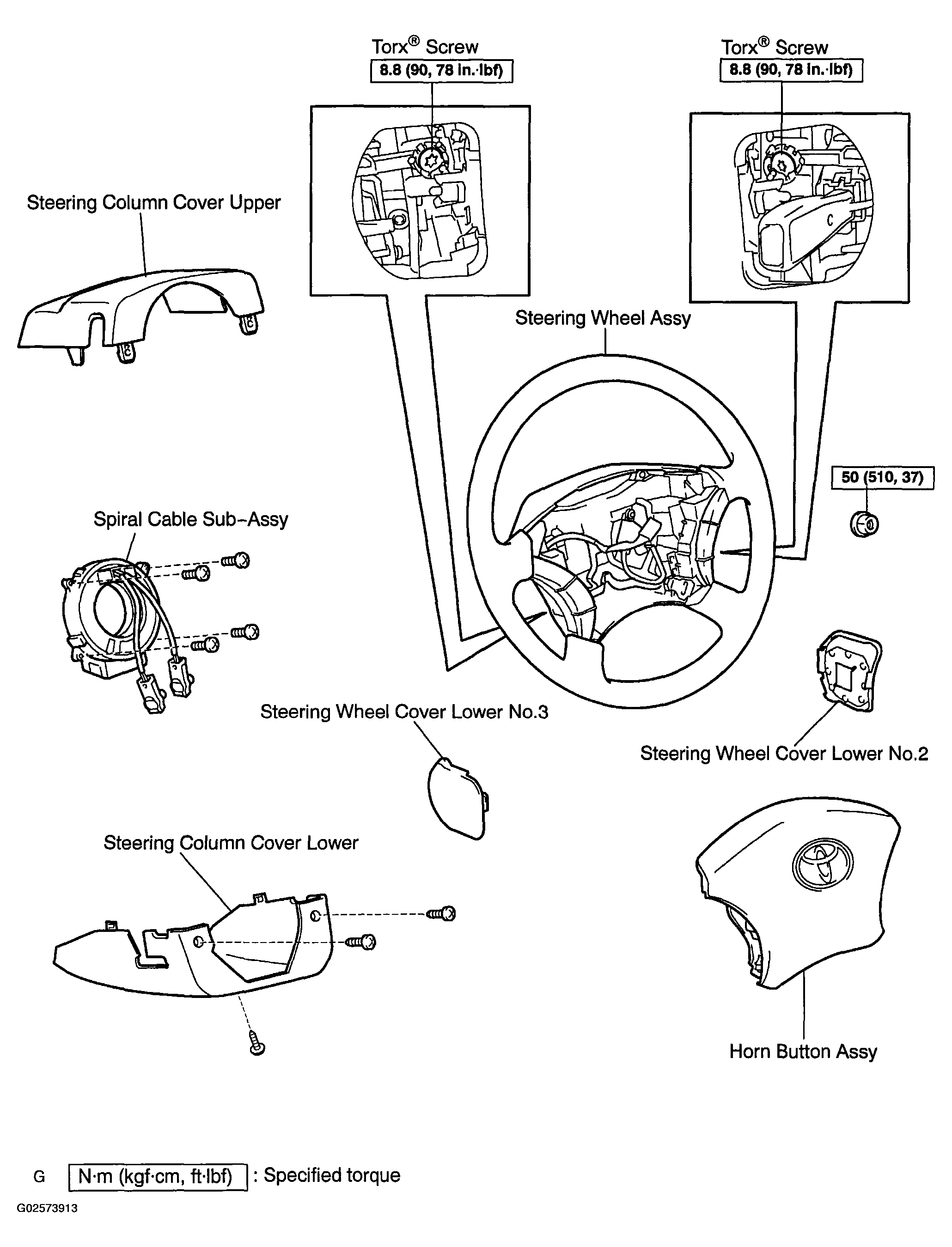

Fig 1: Horn Button Assy Replacement Components With Torque Specifications
G02573913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
