Vane Pump ASSY: Components

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

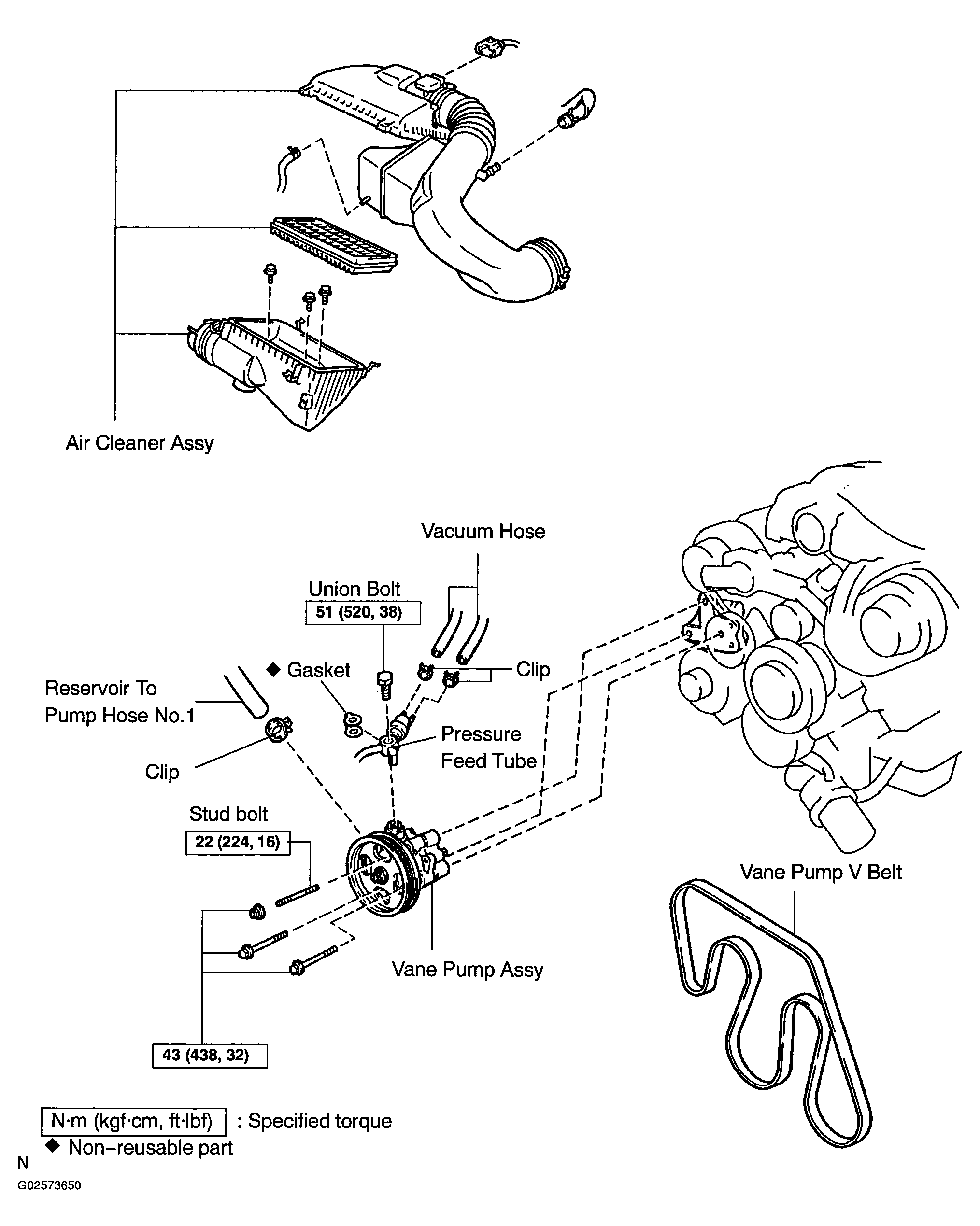

Fig 1: Vane Pump Assy Replacement Components With Torque Specifications (1 Of 2)
G02573650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

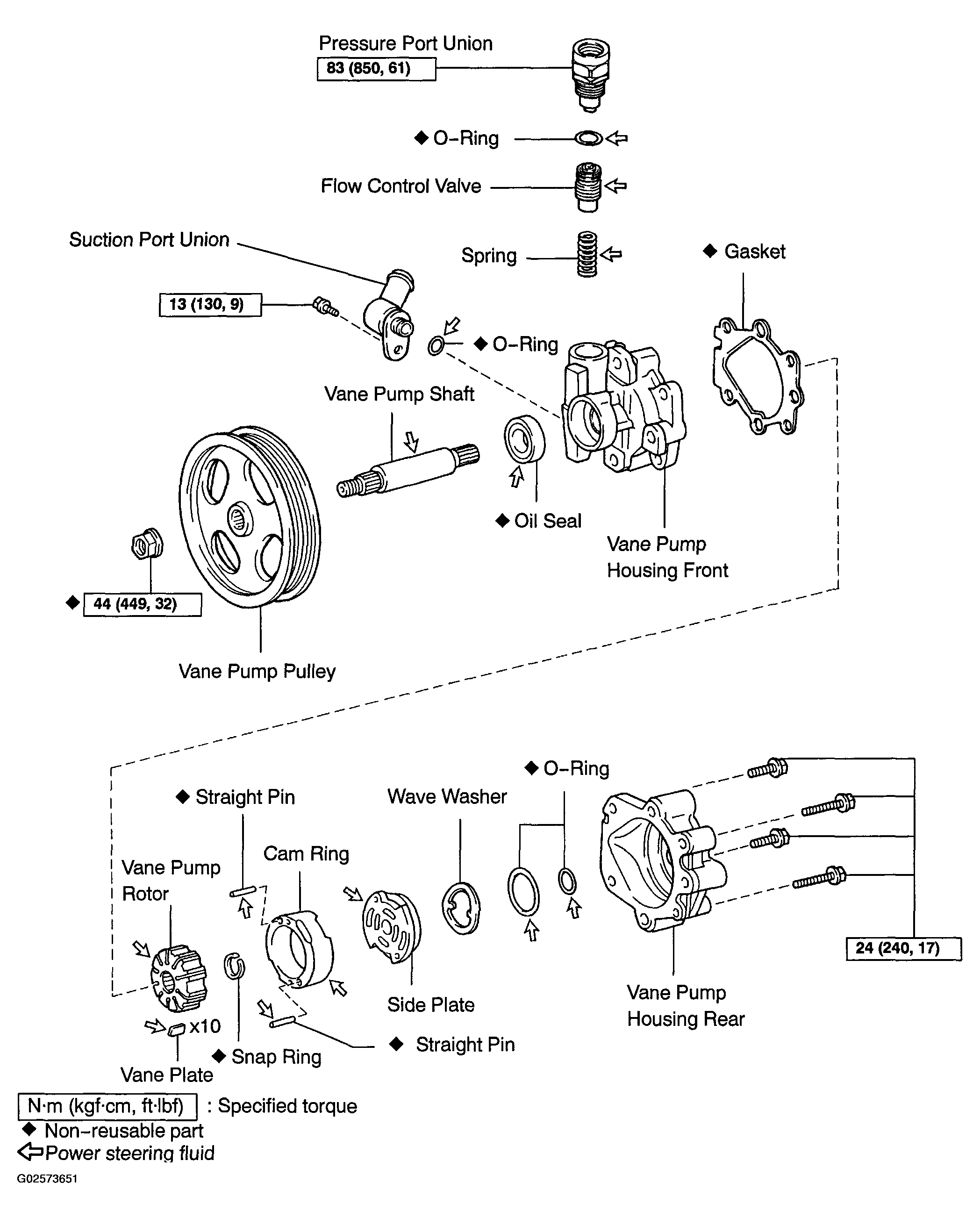

Fig 2: Vane Pump Assy Replacement Components With Torque Specifications (2 Of 2)
G02573651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
