Front Suspension System: Repair

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT: This is the repair procedure for vehicle pull.

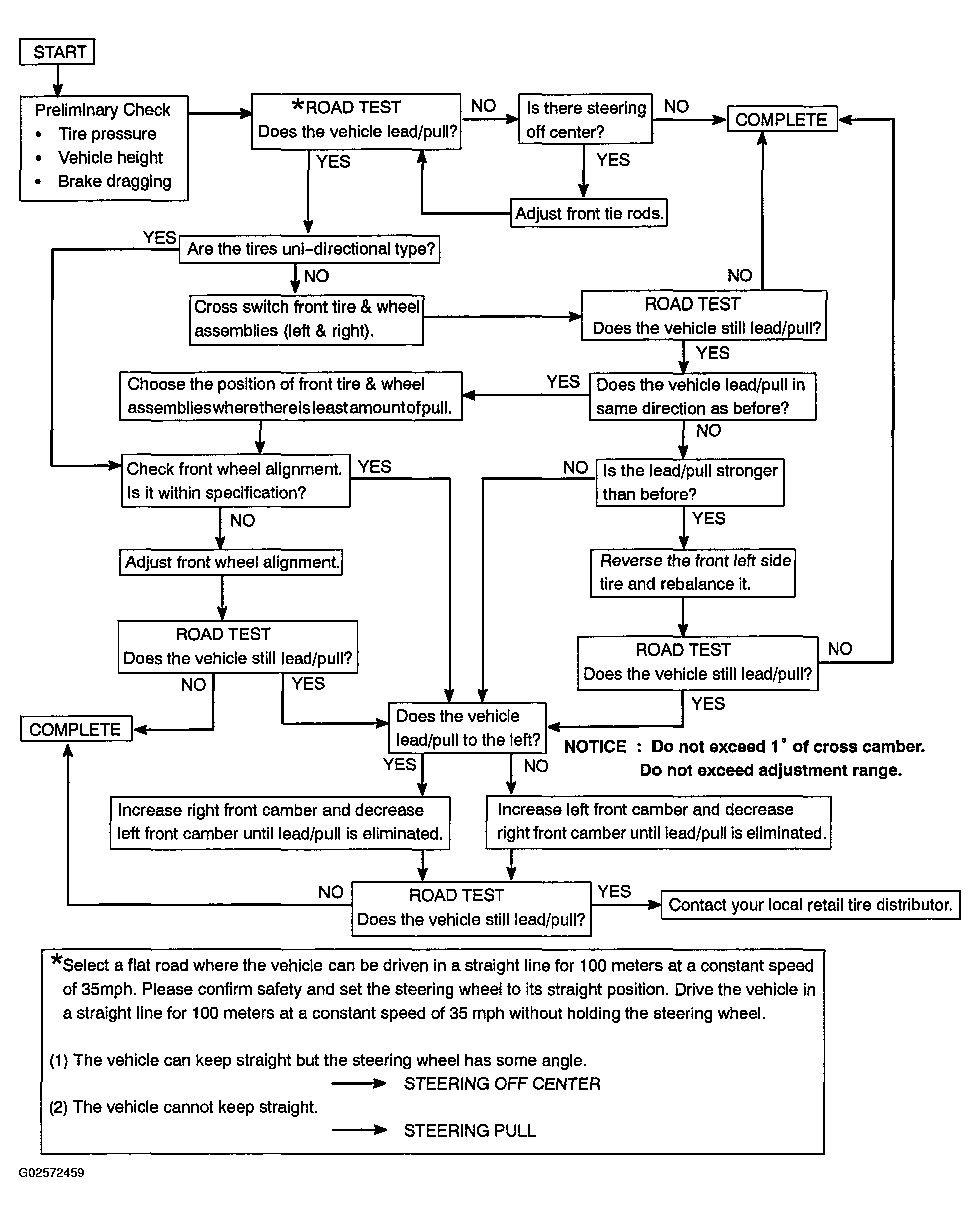

Fig 1: Front Suspension Repair Flow Chart
G02572459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
