Crank Position Sensor (2UZ-FE): Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE UNDER COVER ASSY REAR
  2. REMOVE CRANK POSITION SENSOR
    1. Disconnect the crank position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

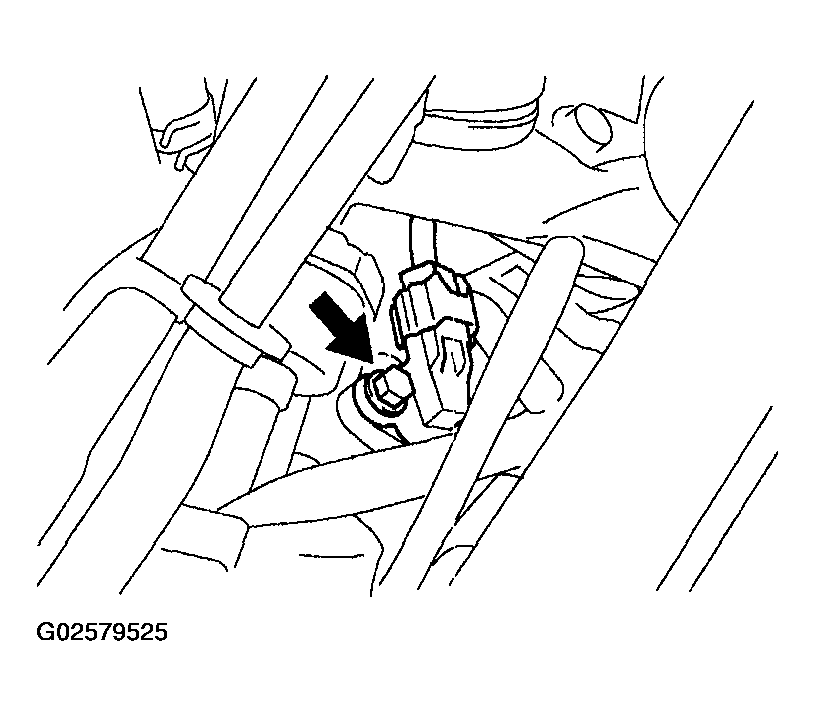

    Fig 1: Removing Crank Position Sensor
    G02579525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CRANK POSITION SENSOR
    1. Install crank position sensor with bolt.

      Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)

  4. INSTALL ENGINE UNDER COVER ASSY REAR
