Fuel Tank ASSY (2UZ-FE): Components: Notes

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

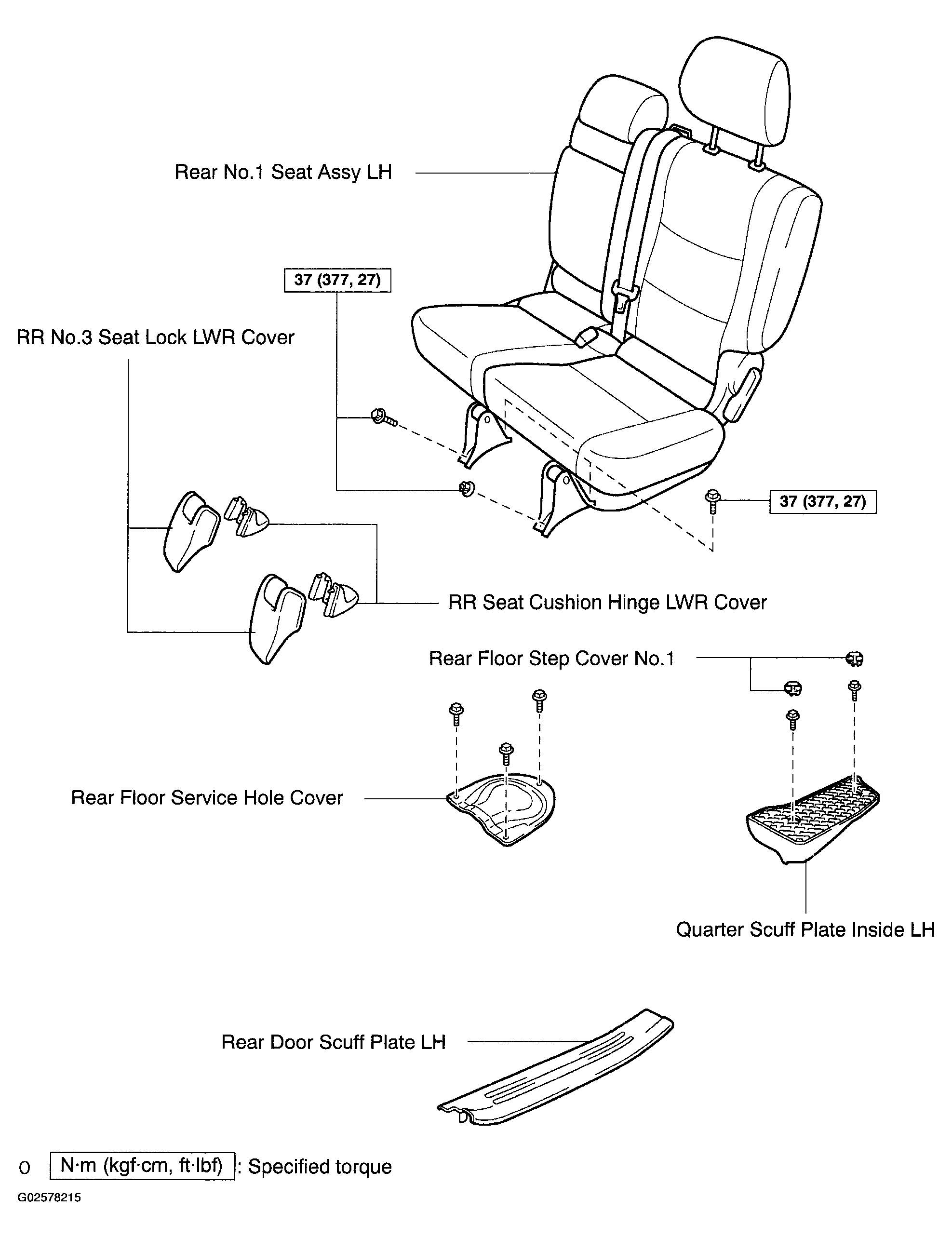

Fig 1: Seat Replacement Components With Torque Specifications
G02578215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Tank Replacement Components Assy (2UZ-FE) With Torque Specifications
G02578216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
