Terminals Of ECM

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

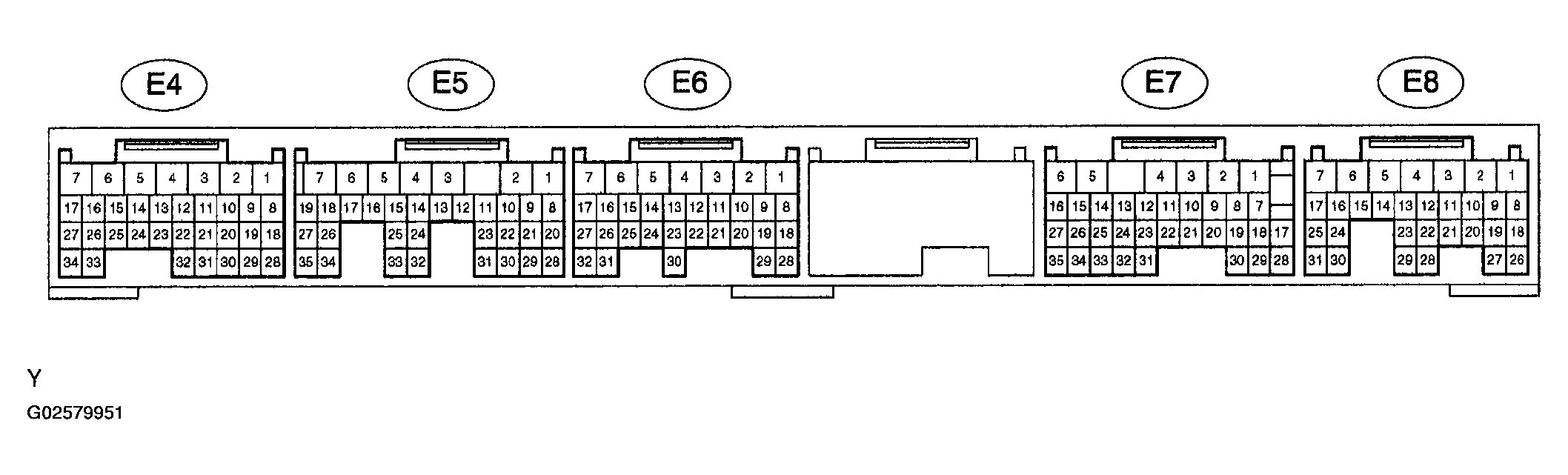

Fig 1: Identifying Connector Terminals Of ECM
G02579951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

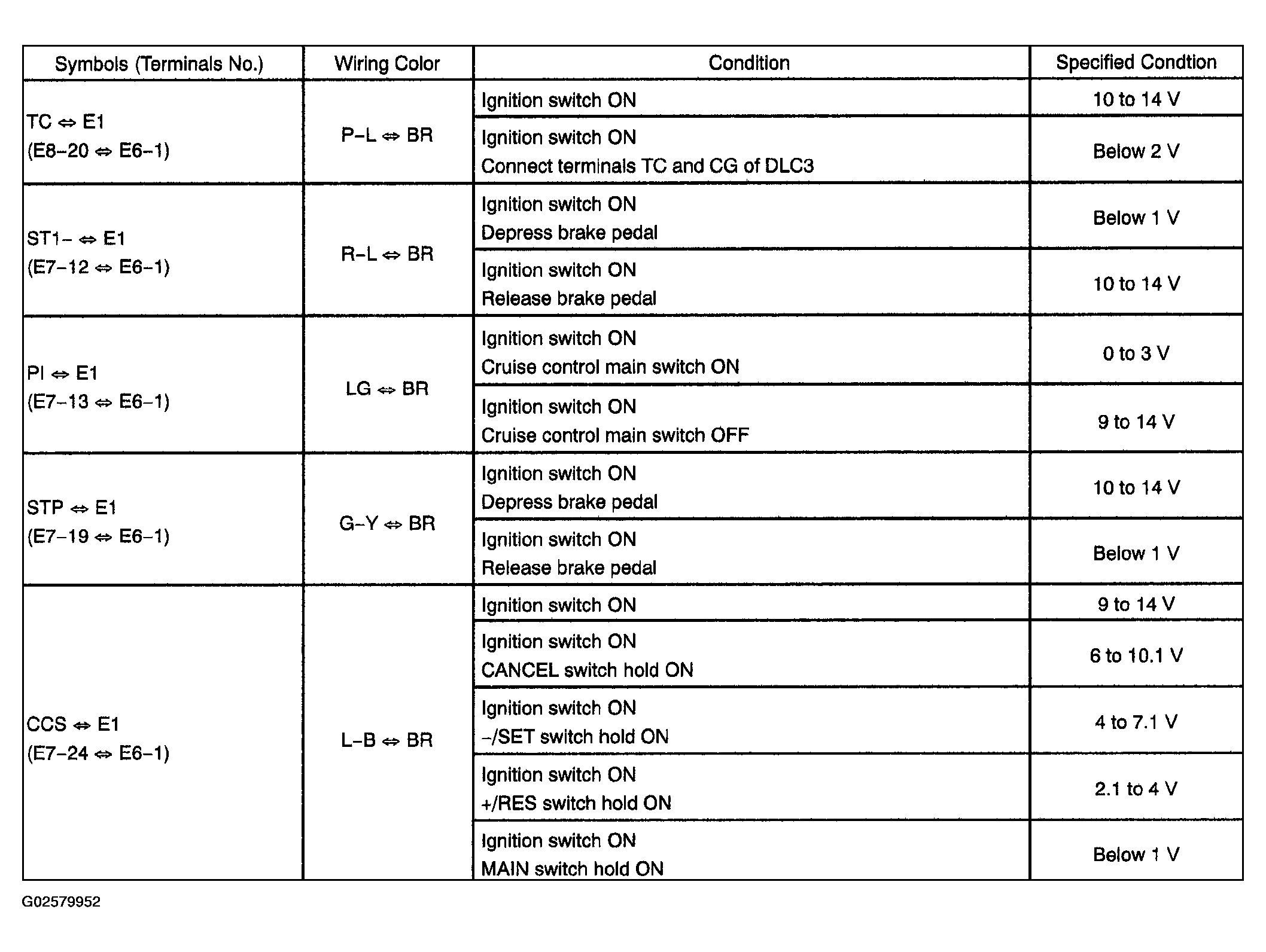

Fig 2: ECM Terminals Condition Specification Chart (2UZ-FE)
G02579952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

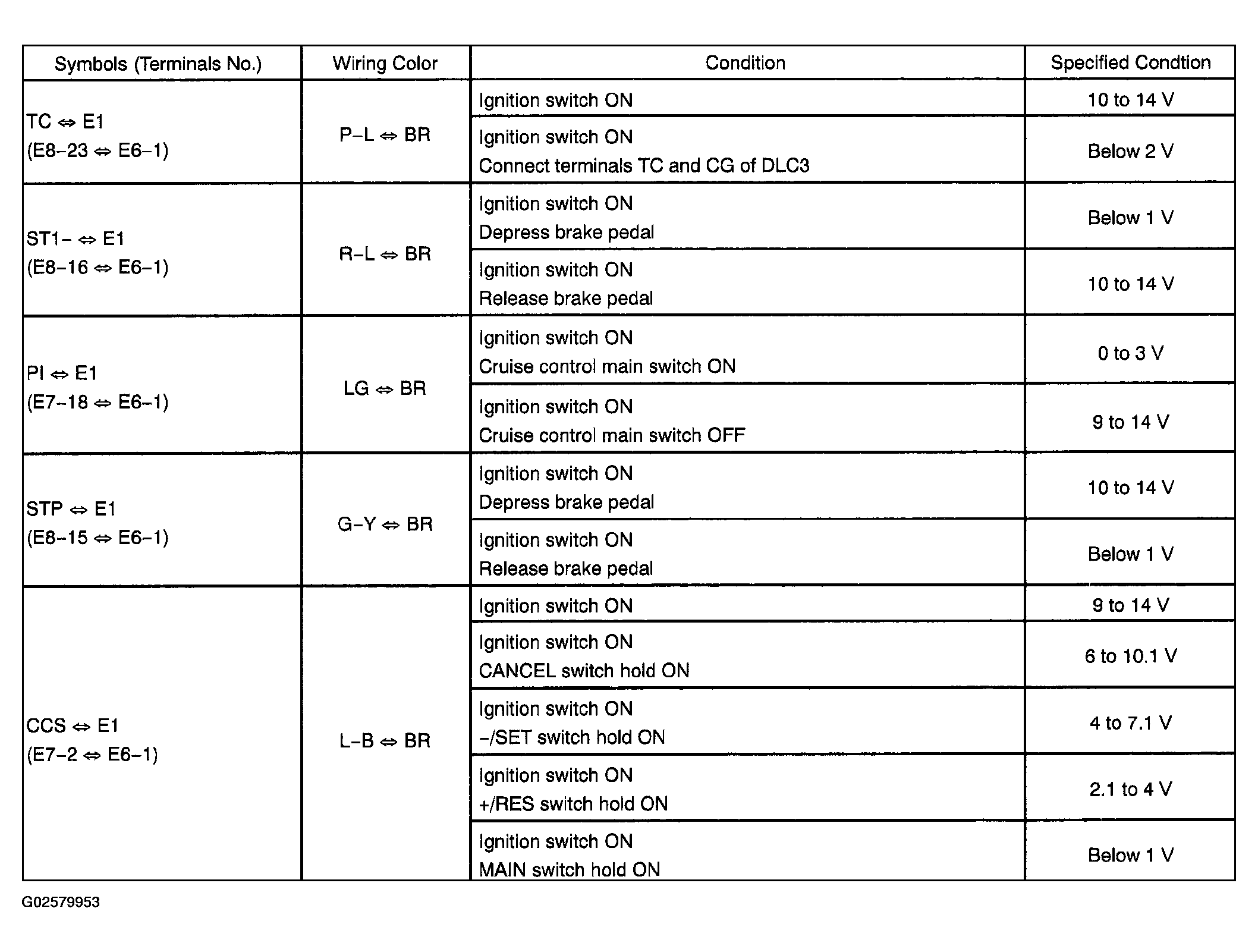

Fig 3: ECM Terminals Condition Specification Chart (1GR-FE)
G02579953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
