HINT:

This section describes the standard CAN values for all CAN related components.

CAN J/C

CAN J/C connectors.

HINT:

The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
J48, J49, J50 and J51 are interchangeable.

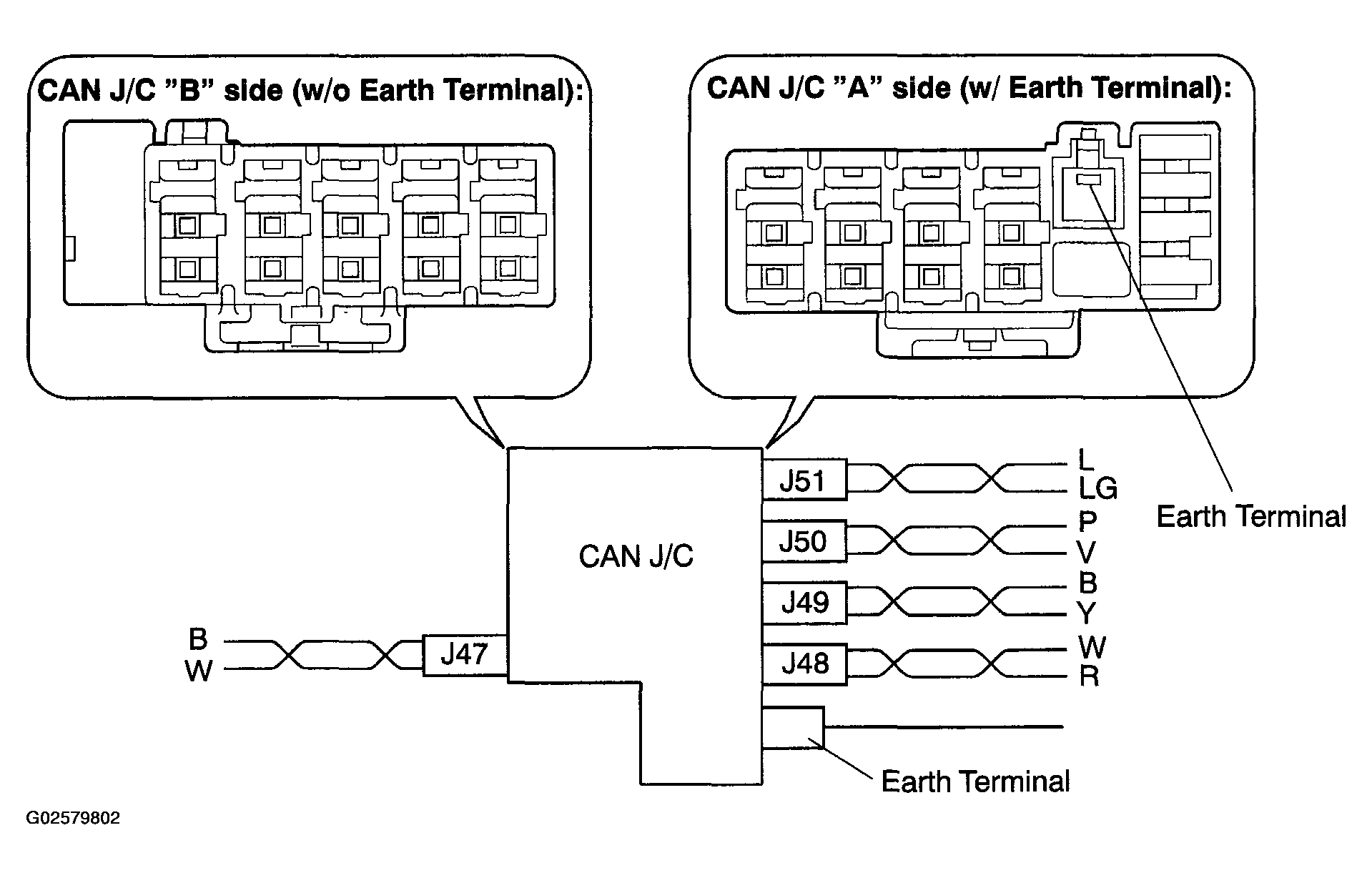

Fig 1: Identifying CAN J/C Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAN J/C CONNECTOR TERMINALS REFERENCE (1 OF 2)

CAN J/C connectors ("A" side, w/ earth terminal)	Color (CAN-H Side)	Color (CAN-L Side)
ECM (J51)	L	LG
DLC3 (J50)	P	V
Steering angle sensor (J49)	B	Y
Yaw rate sensor (J48)	W	R
CAN J/C connectors ("B" side, w/o earth terminal)	Color (CAN-H Side)	Color (CAN-L Side)
Skid control ECU (J47)	B	W

The terminals of the CAN J/C connectors.

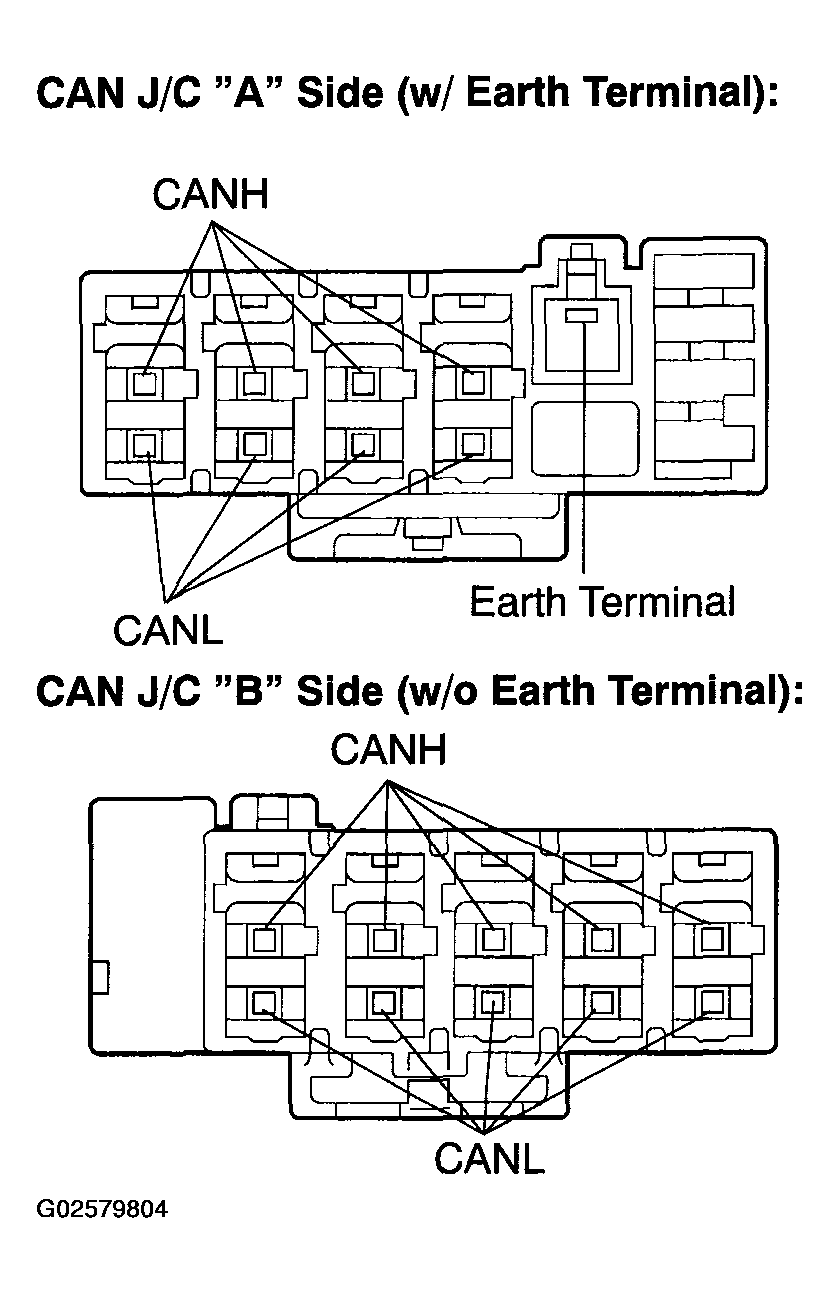

Fig 2: Identifying CAN J/C Connectors Front View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAN J/C CONNECTOR TERMINALS REFERENCE (2 OF 2)

Terminal	Terminal symbol
1	CANH
2	CANL

Measure the resistance according to the value (s) in the table below.

Standard:

CANH - CANL RESISTANCE SPECIFICATIONS

Terminals	Specified value
CANH - CANL	108 to 132Ω

Fig 3: Identifying CANH And CANL Connector Terminals

DLC3
1. Check the DLC3.
  1. Measure the resistance according to the value (s) in the table below.

    Fig 4: Identifying DLC3 Connector Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 5: DLC3 Connector Terminals Resistance Specifications
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SKID CONTROL ECU
1. Check the skid control ECU harness side connector (S28).
  1. Disconnect the connector (S28) from the skid control ECU.
  2. Measure the resistance according to the value (s) in the table below.

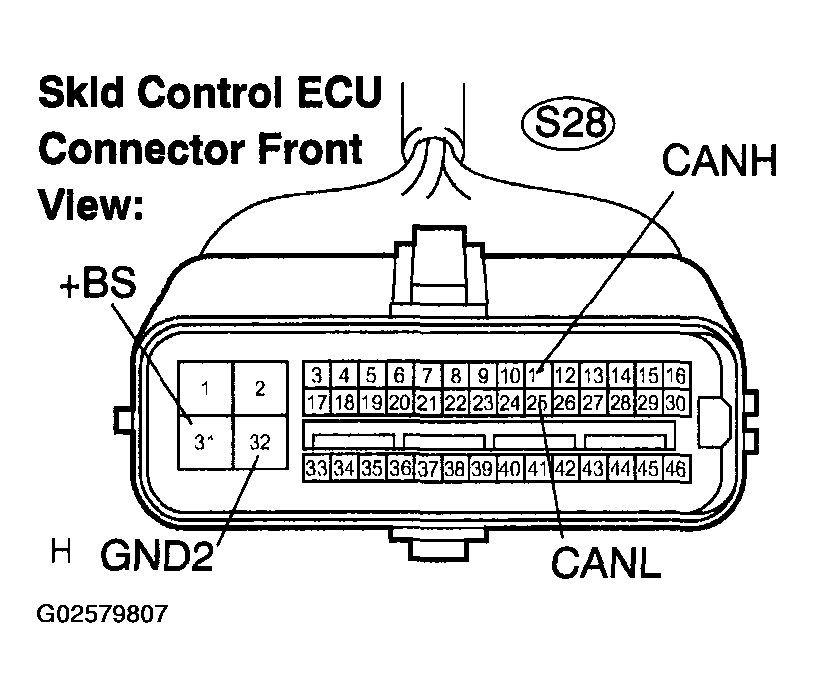

    Fig 6: Identifying Skid Control ECU Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

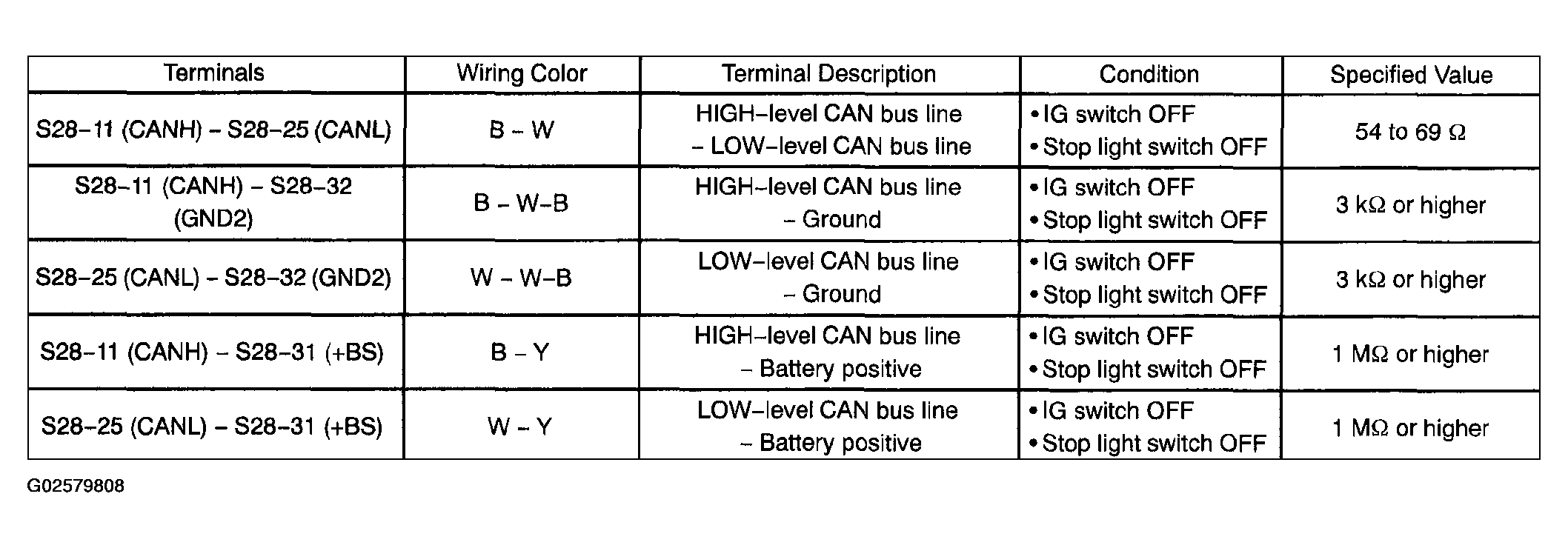

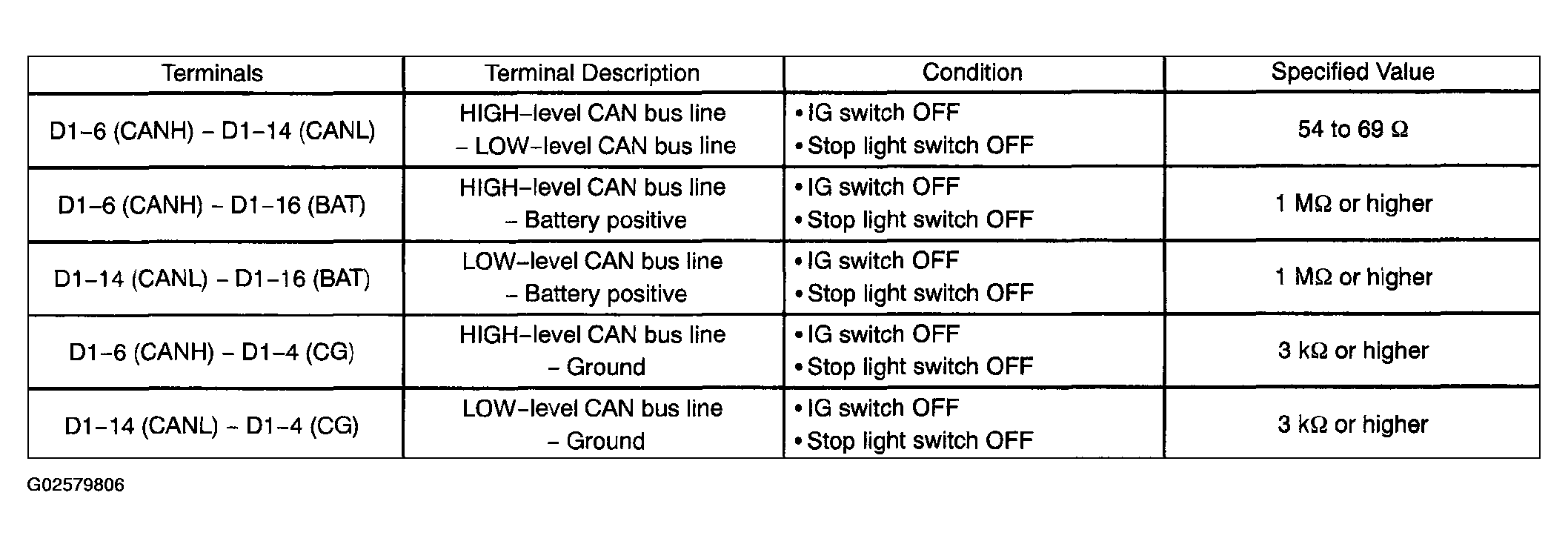

    Fig 7: Skid Control ECU Connector Terminals Resistance Specifications
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEERING ANGLE SENSOR
1. Check the harness side connector (S11) of the steering angle sensor.
  1. Disconnect the connector (S11) from the steering angle sensor.
  2. Measure the resistance according to the value (s) in the table below.

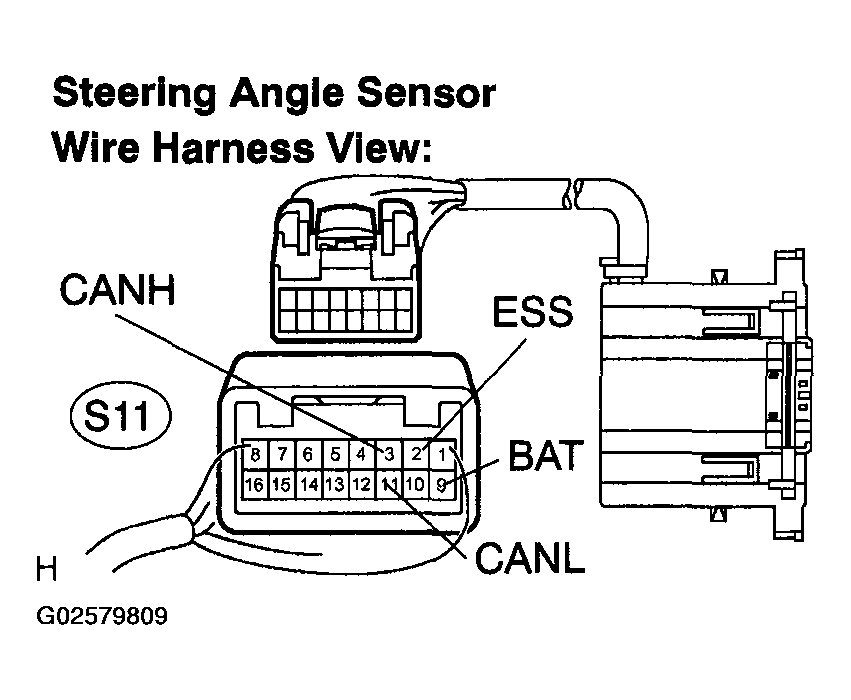

    Fig 8: Identifying Steering Angle Sensor Connector Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

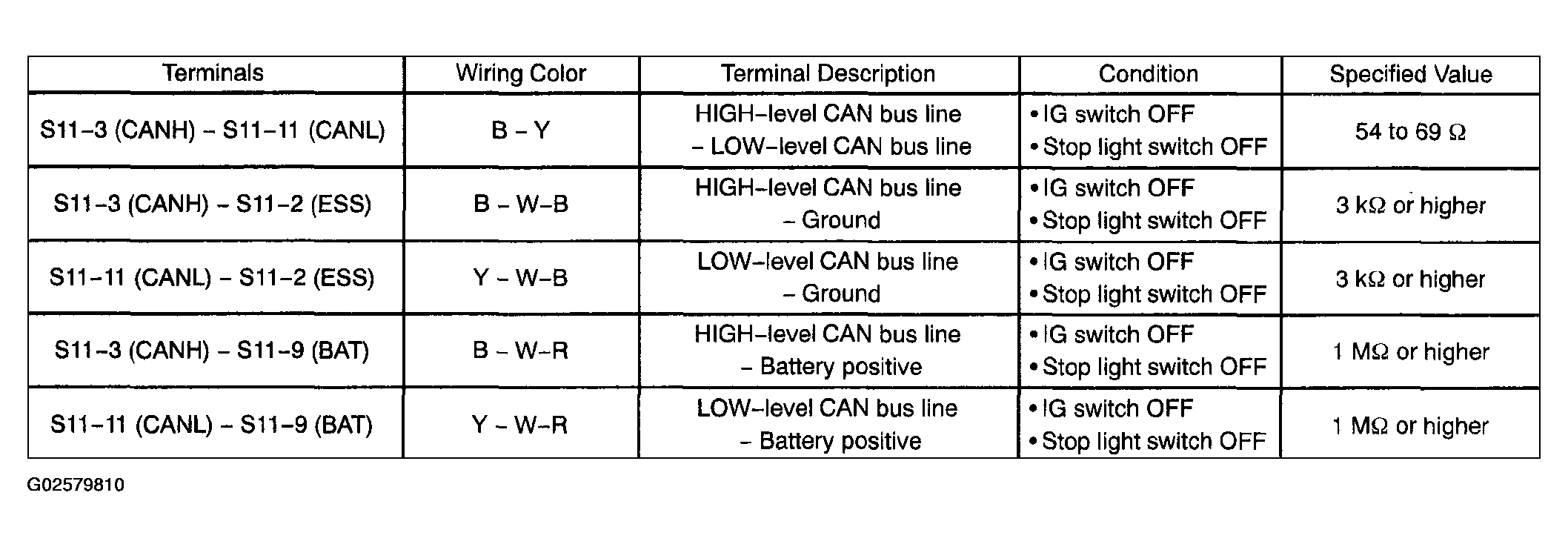

    Fig 9: Steering Angle Sensor Connector Terminals Resistance Specifications
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
YAW RATE SENSOR
1. Check the yaw rate sensor harness side connector (Y1).
  1. Disconnect the connector (Y1) from the yaw rate sensor.
  2. Measure the resistance according to the value (s) in the table below.

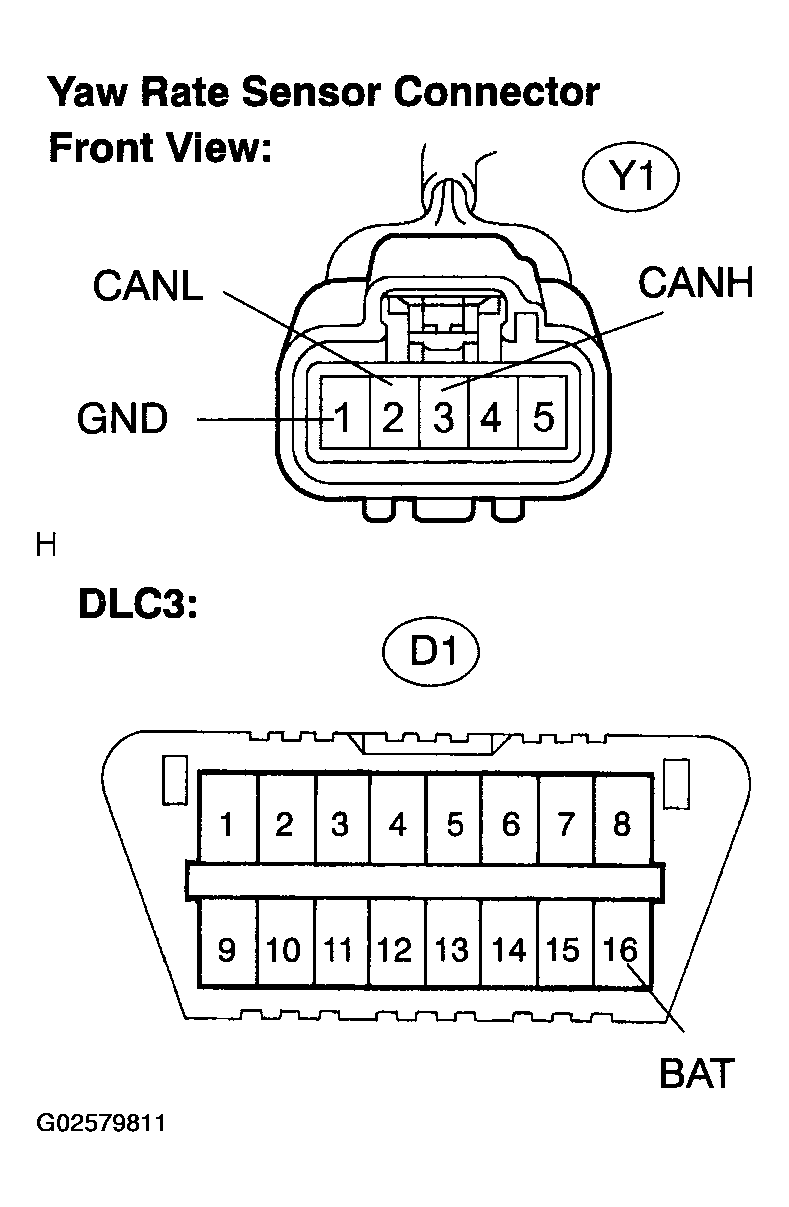

    Fig 10: Identifying Yaw Rate Sensor Connector Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

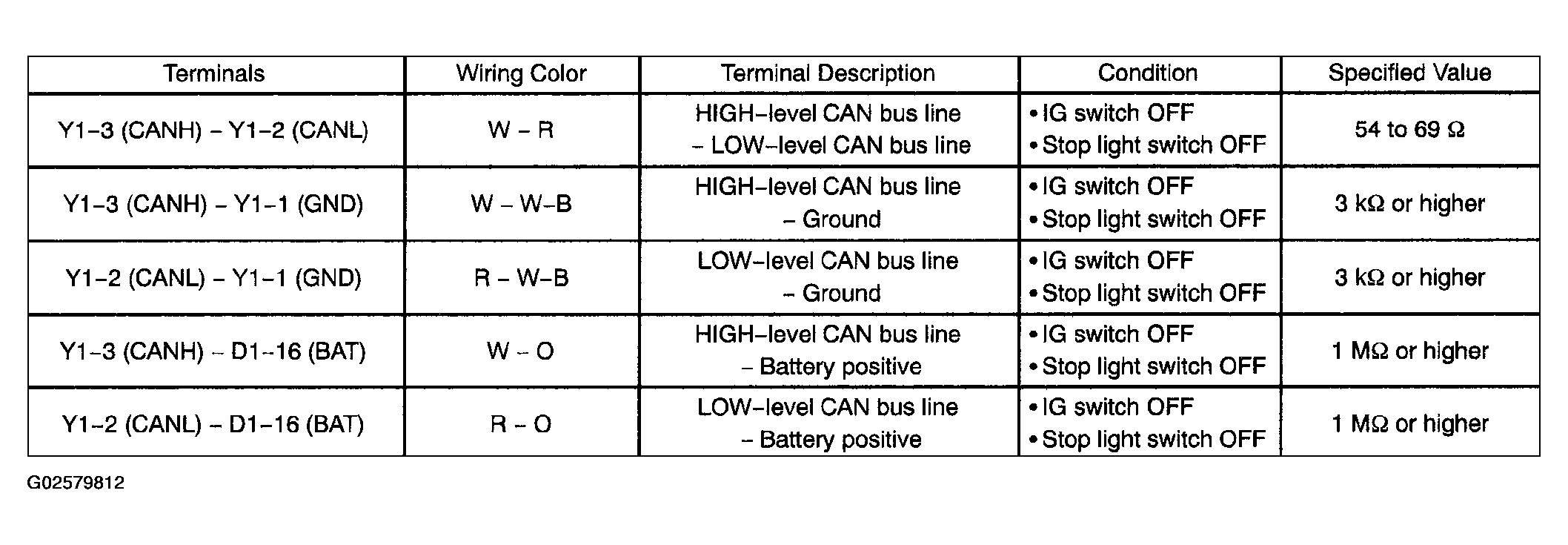

    Fig 11: Yaw Rate Sensor Connector Terminals Resistance Specifications
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECM
1. Measure the resistance according to the value (s) in the table below.

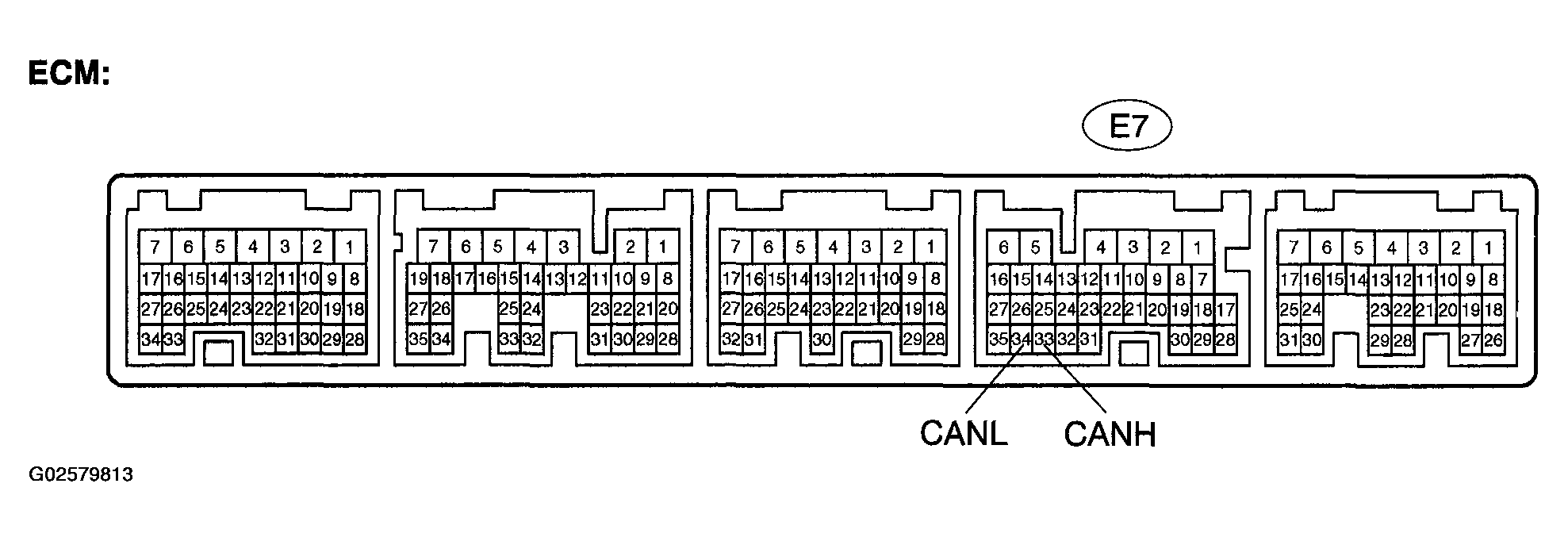

  Fig 12: Identifying ECM Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 13: ECM Connector Terminals Resistance Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value (s) in the table below.

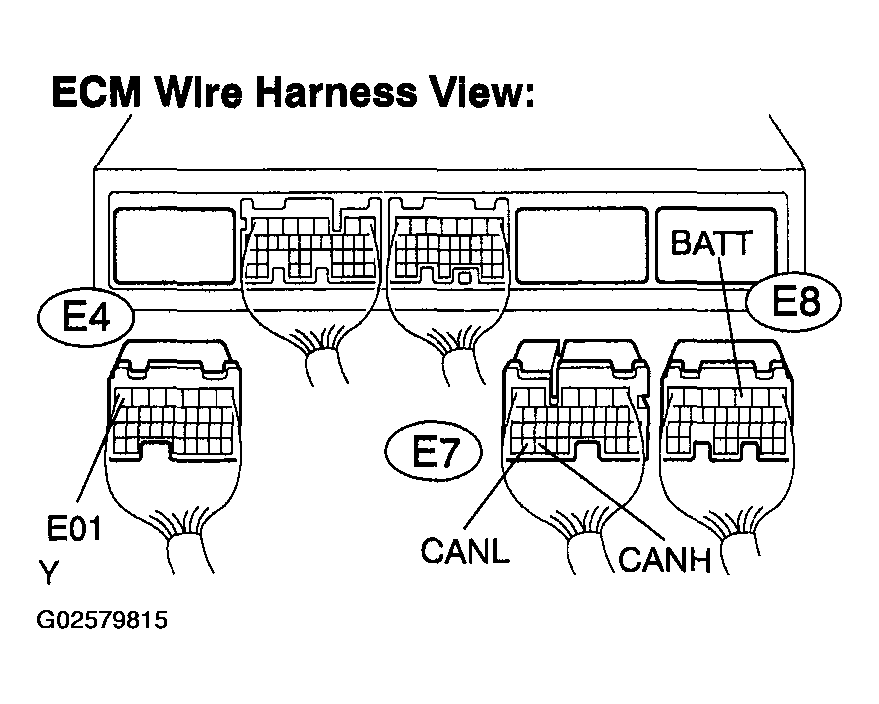

  Fig 14: Identifying ECM Wire Harness View
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

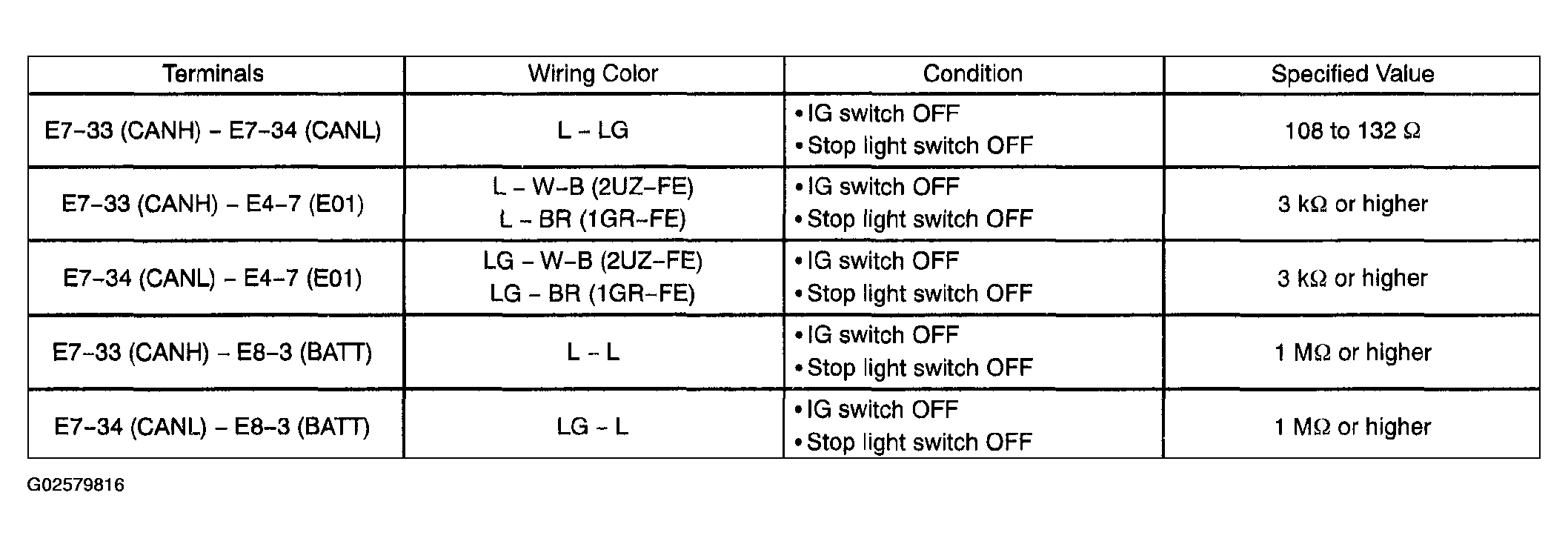

  Fig 15: ECM Wire Harness Terminals Resistance Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
