Terminals Of Ecu

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU)

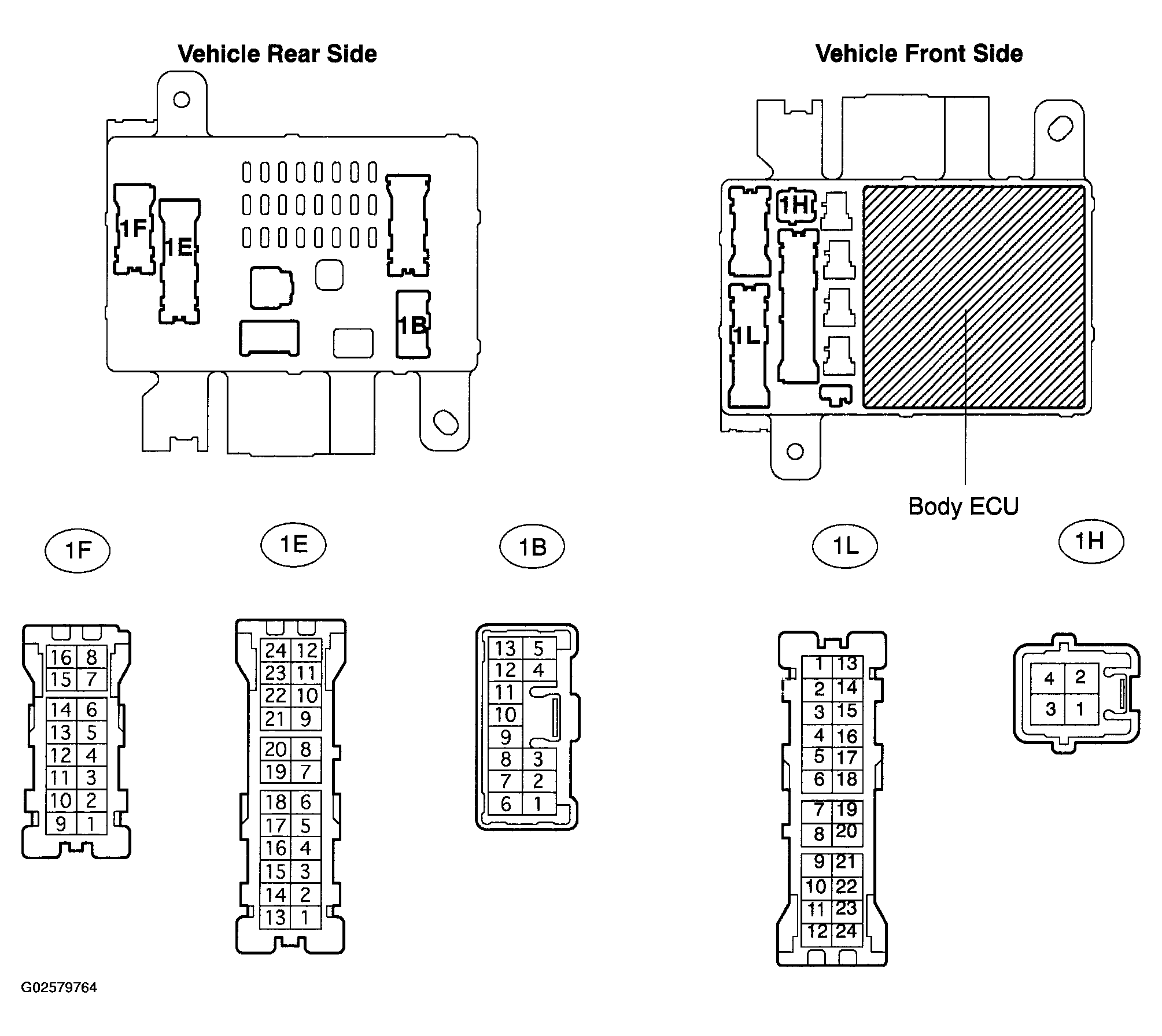

Fig 1: Identifying Driver Side Junction Block Assy (Body ECU) Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 1B, 1E, 1F, 1H and 1L J/B connectors.
2. Check the voltage or continuity of each terminal of the wire harness side connectors.
  Standard:

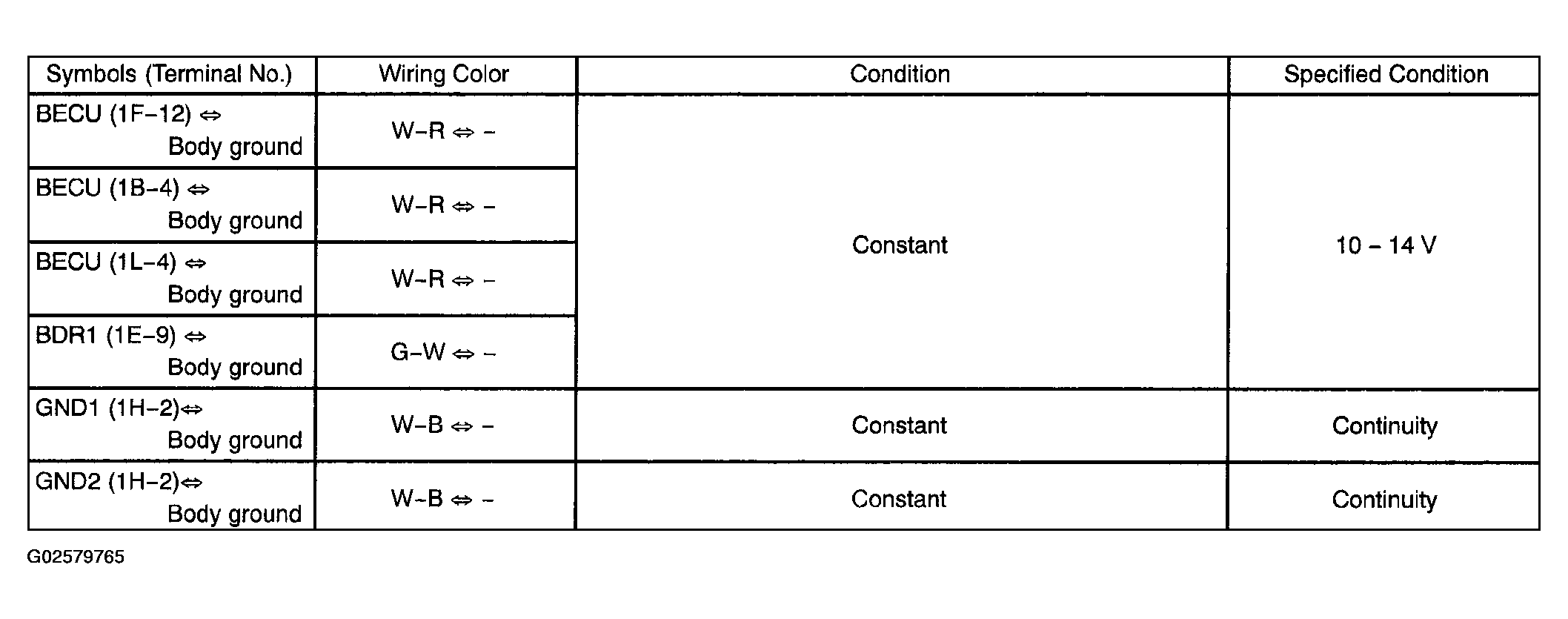

  Fig 2: Wire Harness Side Connector Terminals Voltage Or Continuity Conditions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
CHECK THEFT WARNING ECU ASSY (THEFT DETERRENT ECU)

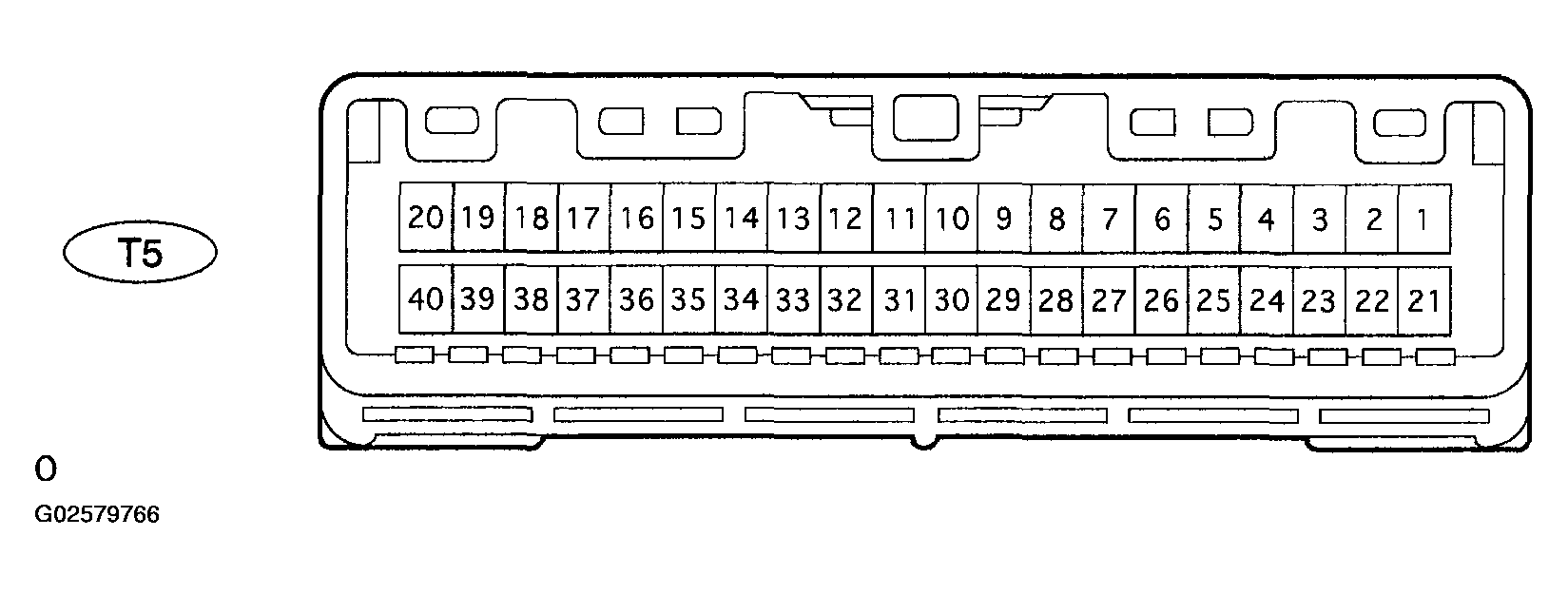

Fig 3: Identifying T5 ECU Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the T5 ECU connector.
2. Check the voltage or continuity of each terminal of the wire harness side connector.
  Standard:

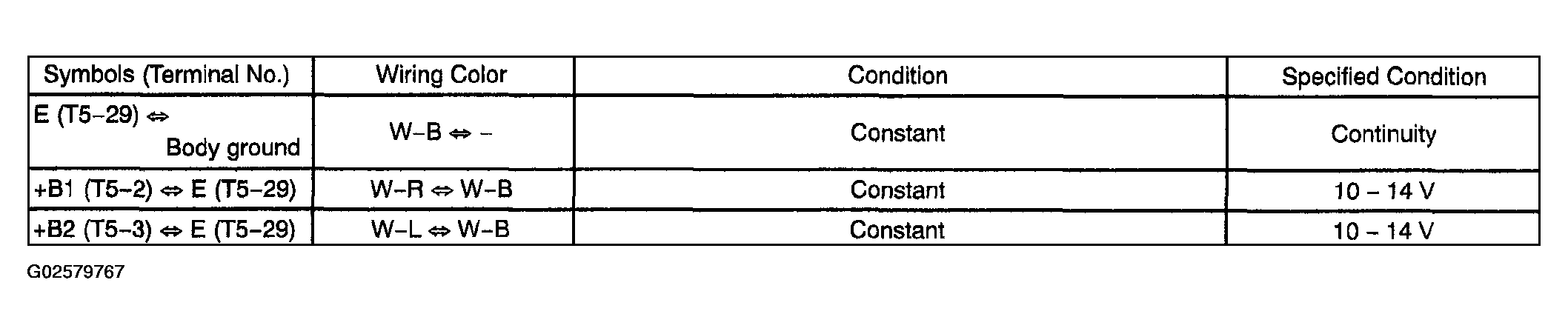

  Fig 4: Wire Harness Side Connector (T5) Voltage Or Continuity Conditions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
CHECK MULTIPLEX NETWORK DOOR ECU BACK (BACK DOOR ECU)

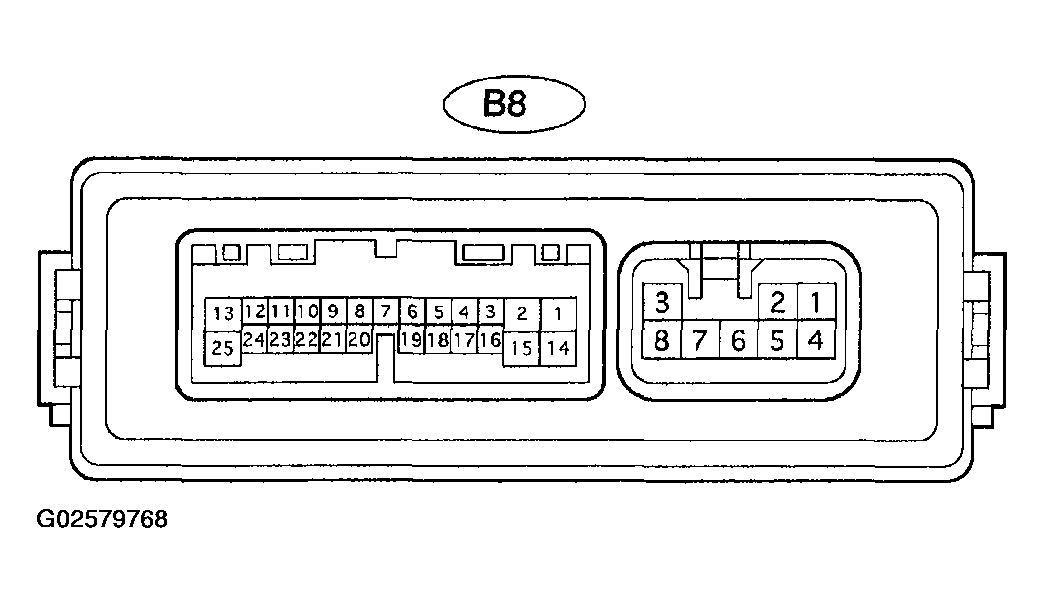

Fig 5: Identifying B8 ECU Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the B8 ECU connector.
2. Check the voltage or continuity of each terminal of the wire harness side connector.
  Standard:

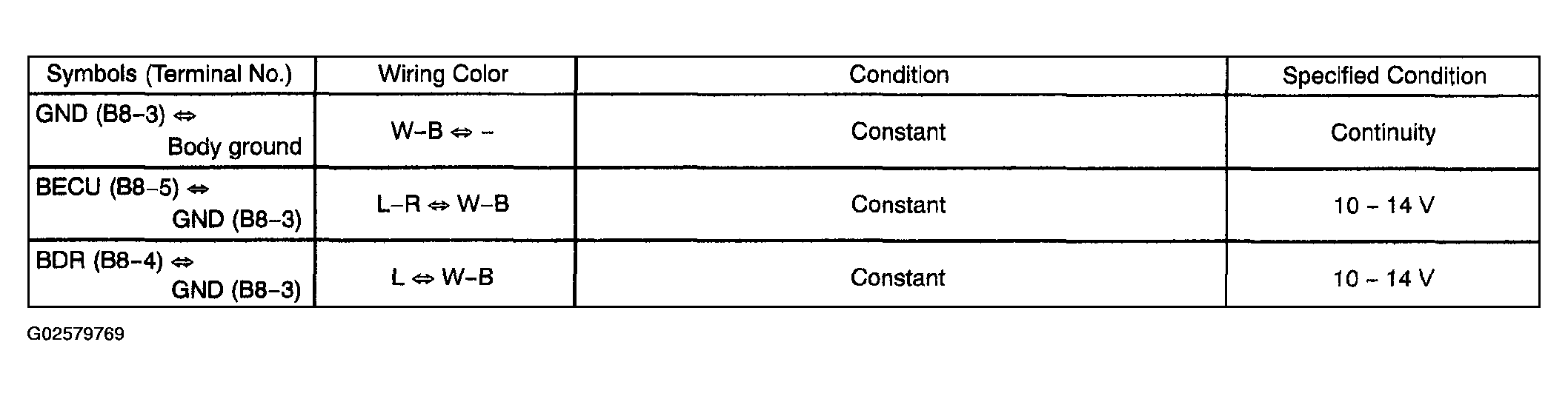

  Fig 6: Wire Harness Side Connectors (B8) Voltage Or Continuity Conditions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
