Terminals Of Ecu

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

RADIO AND NAVIGATION ASSY

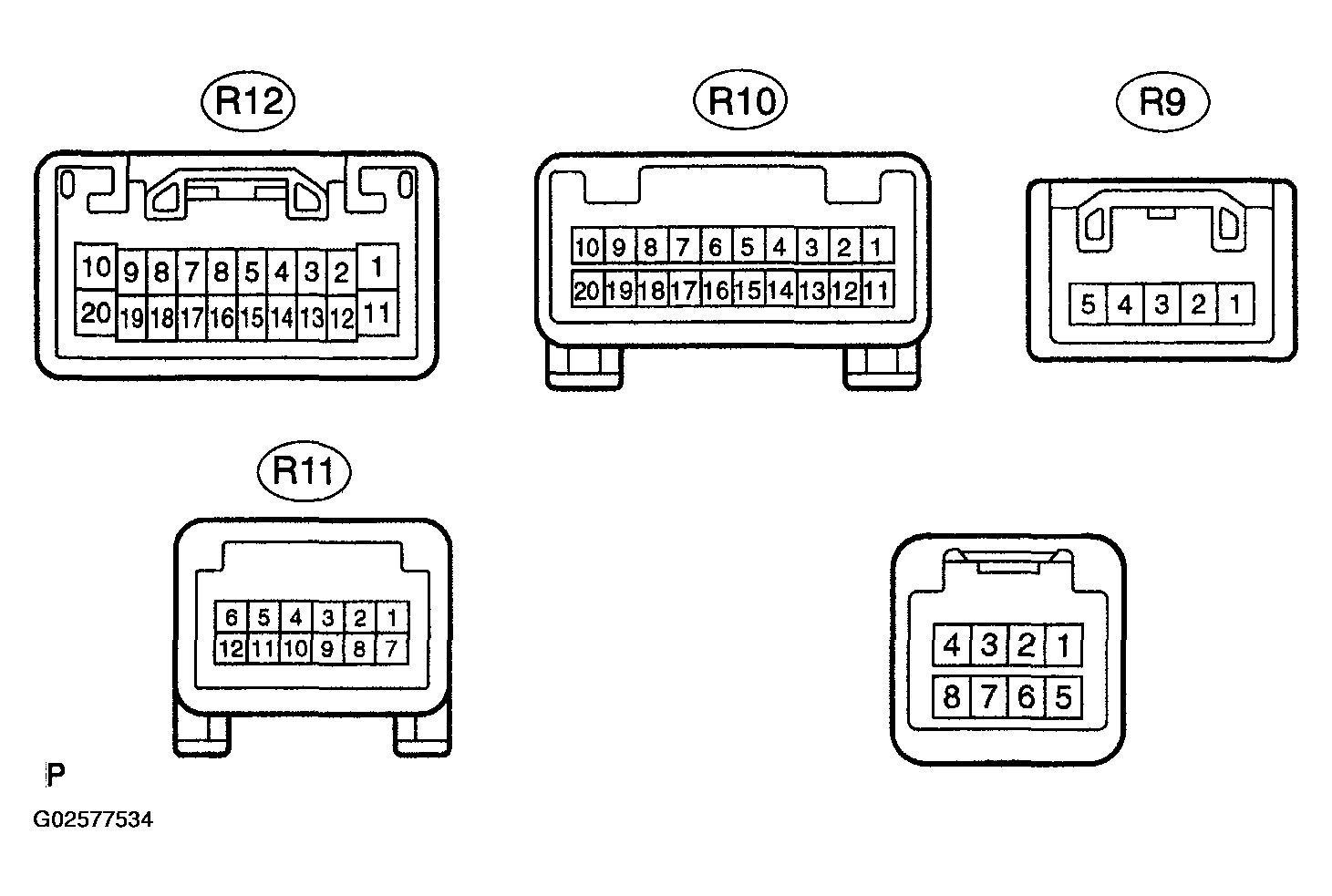

Fig 1: Identifying Radio And Navigation Assy ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

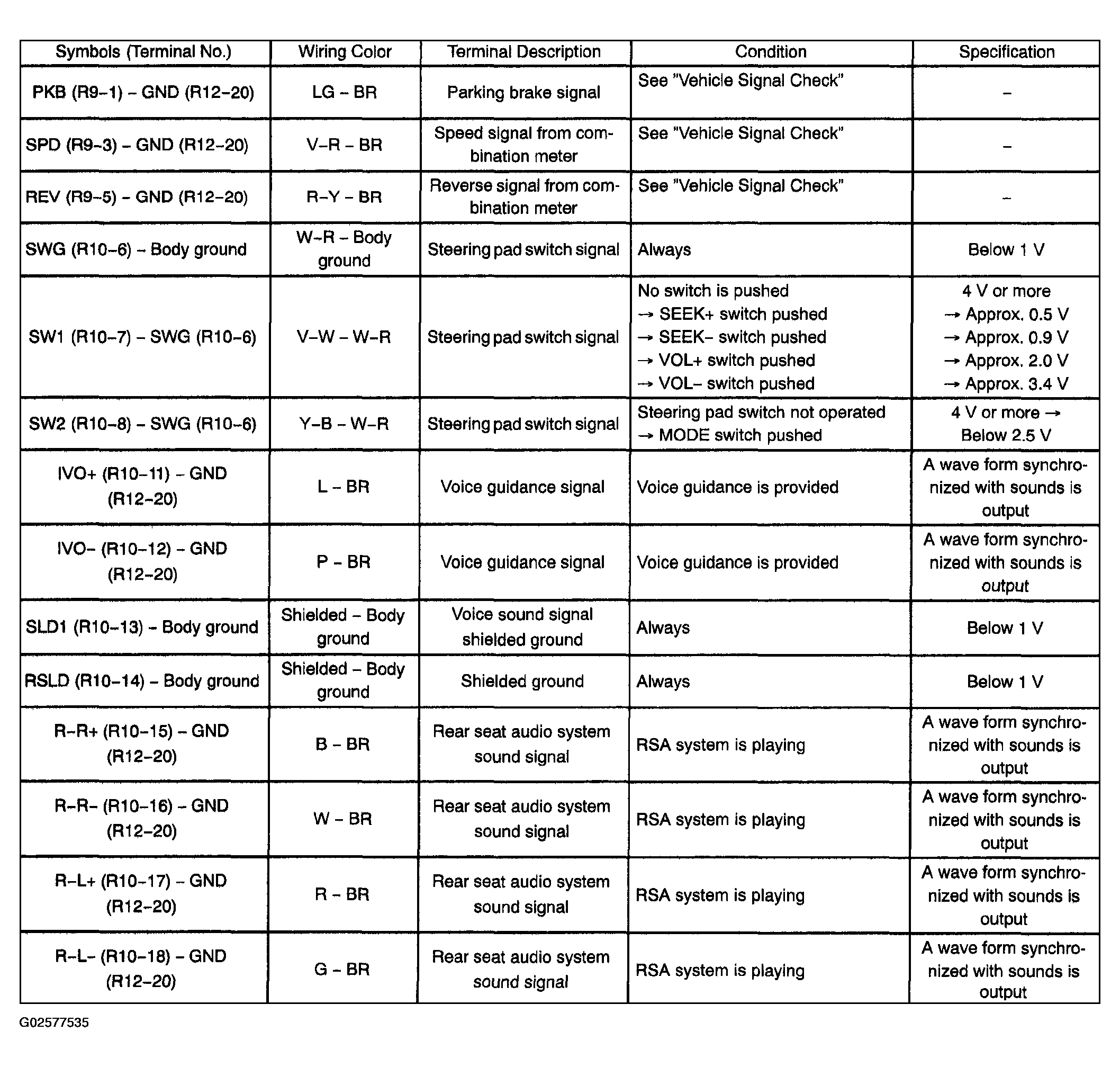

Fig 2: Radio And Navigation Assy ECU Terminals Voltage Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

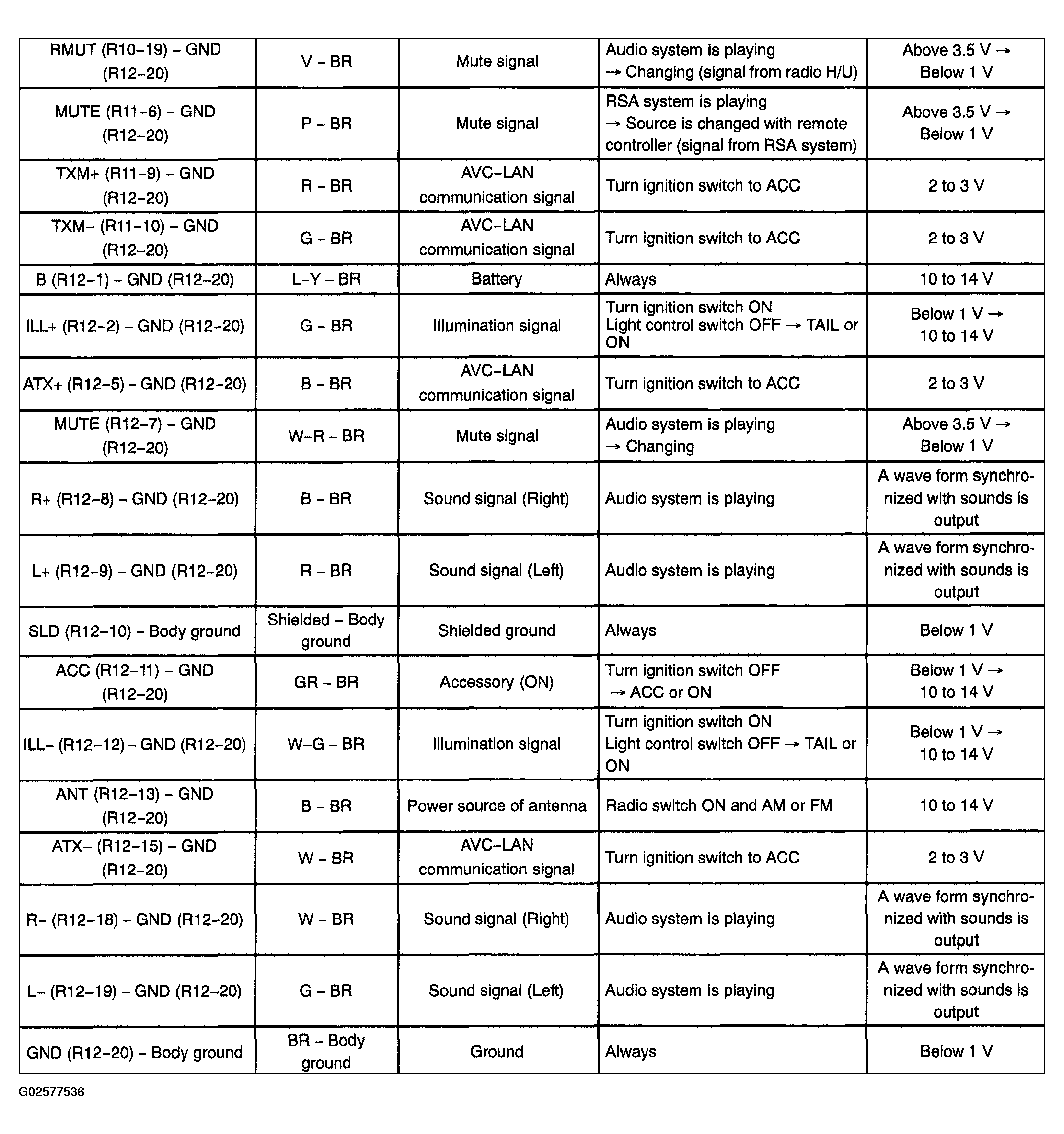

Fig 3: Radio And Navigation Assy ECU Terminals Voltage Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

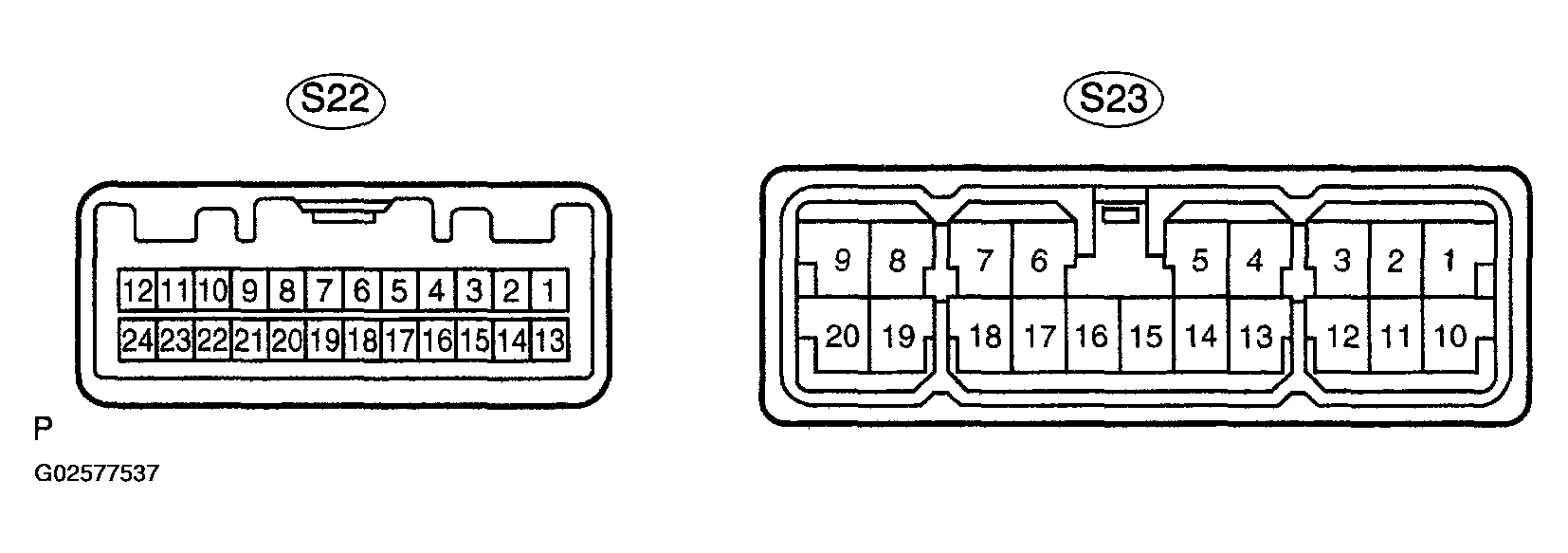

Fig 4: Identifying Stereo Component Amplifier Assy ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

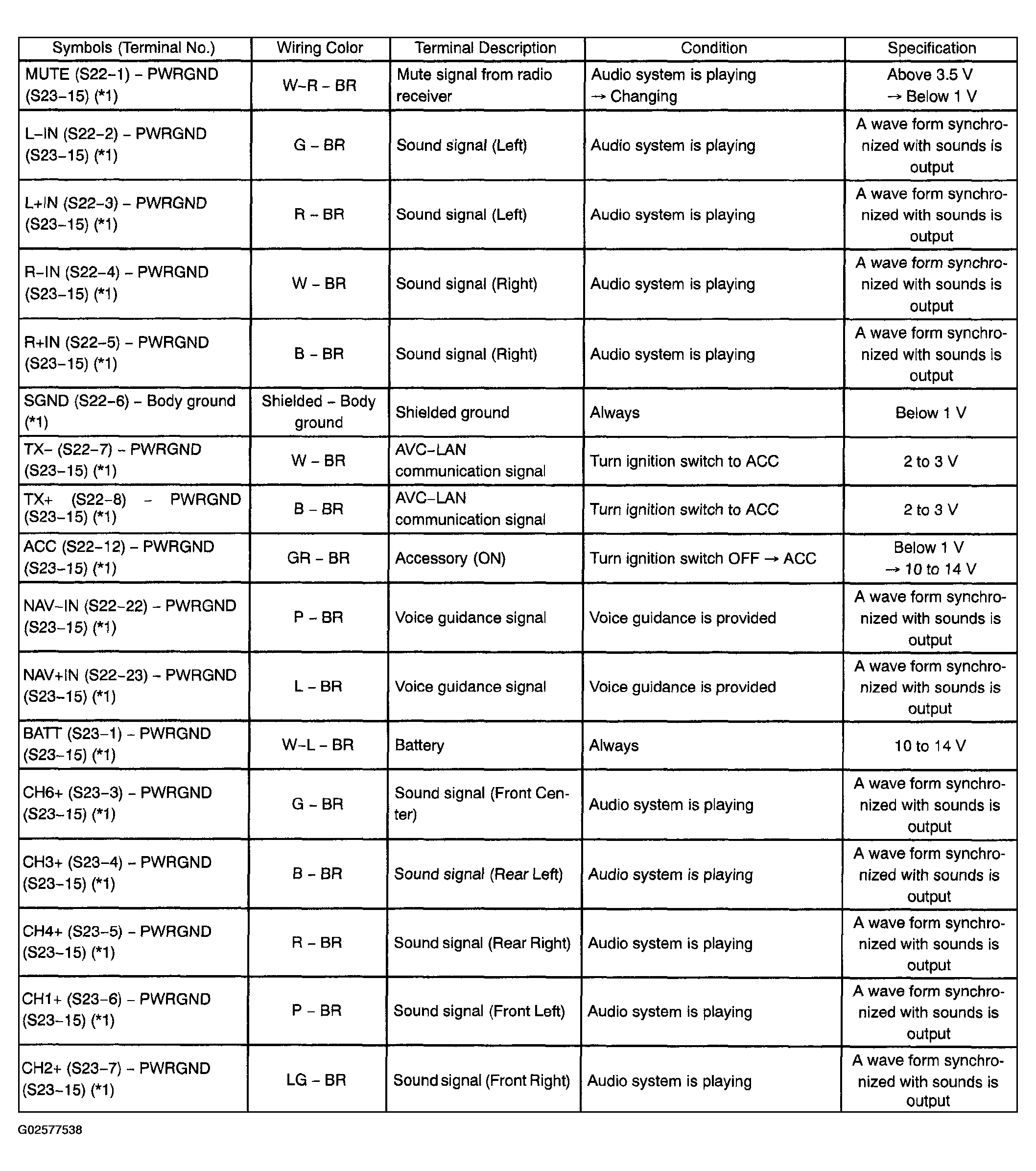

Fig 5: Stereo Component Amplifier Assy ECU Terminals Voltage Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

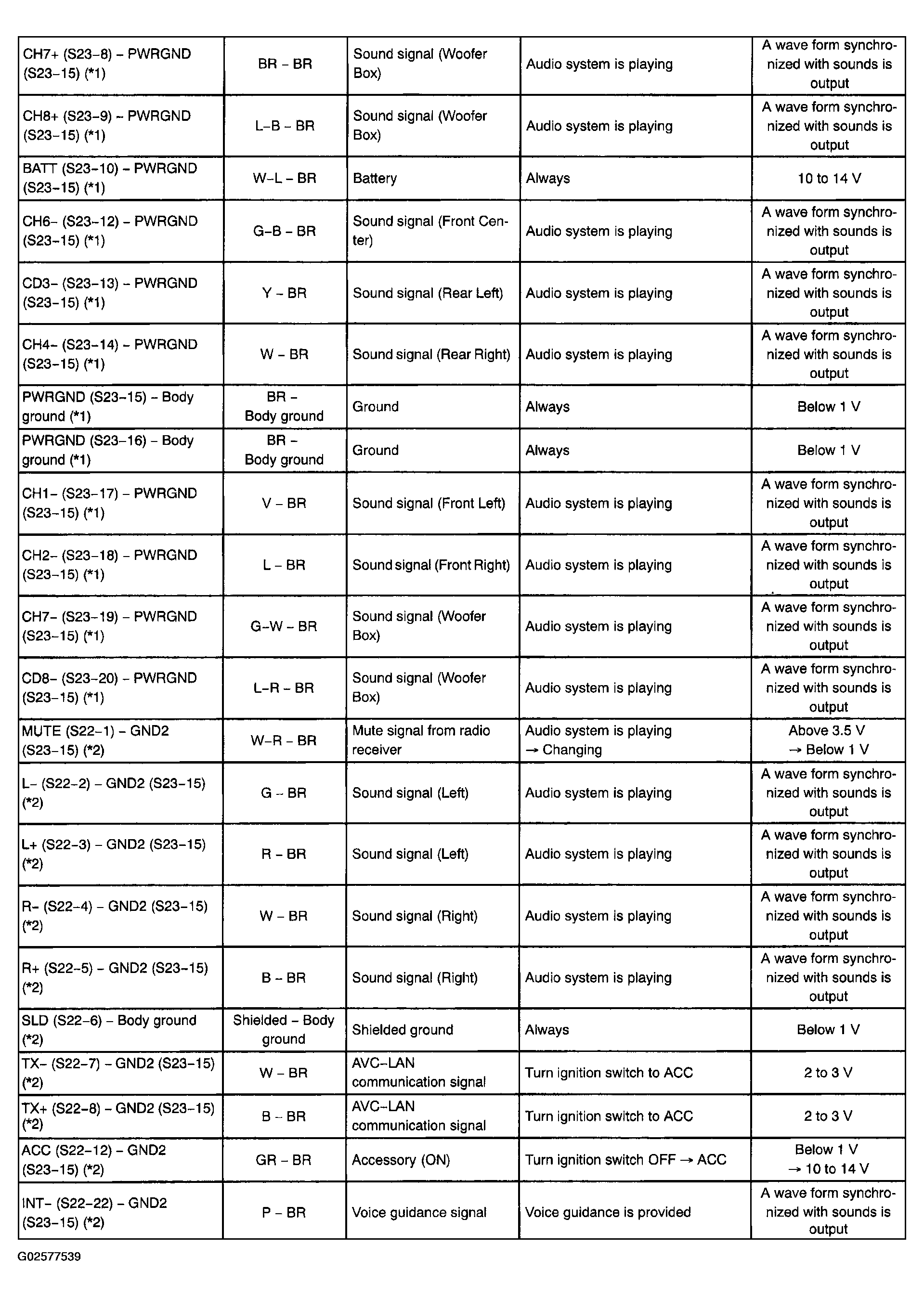

Fig 6: Stereo Component Amplifier Assy ECU Terminals Voltage Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

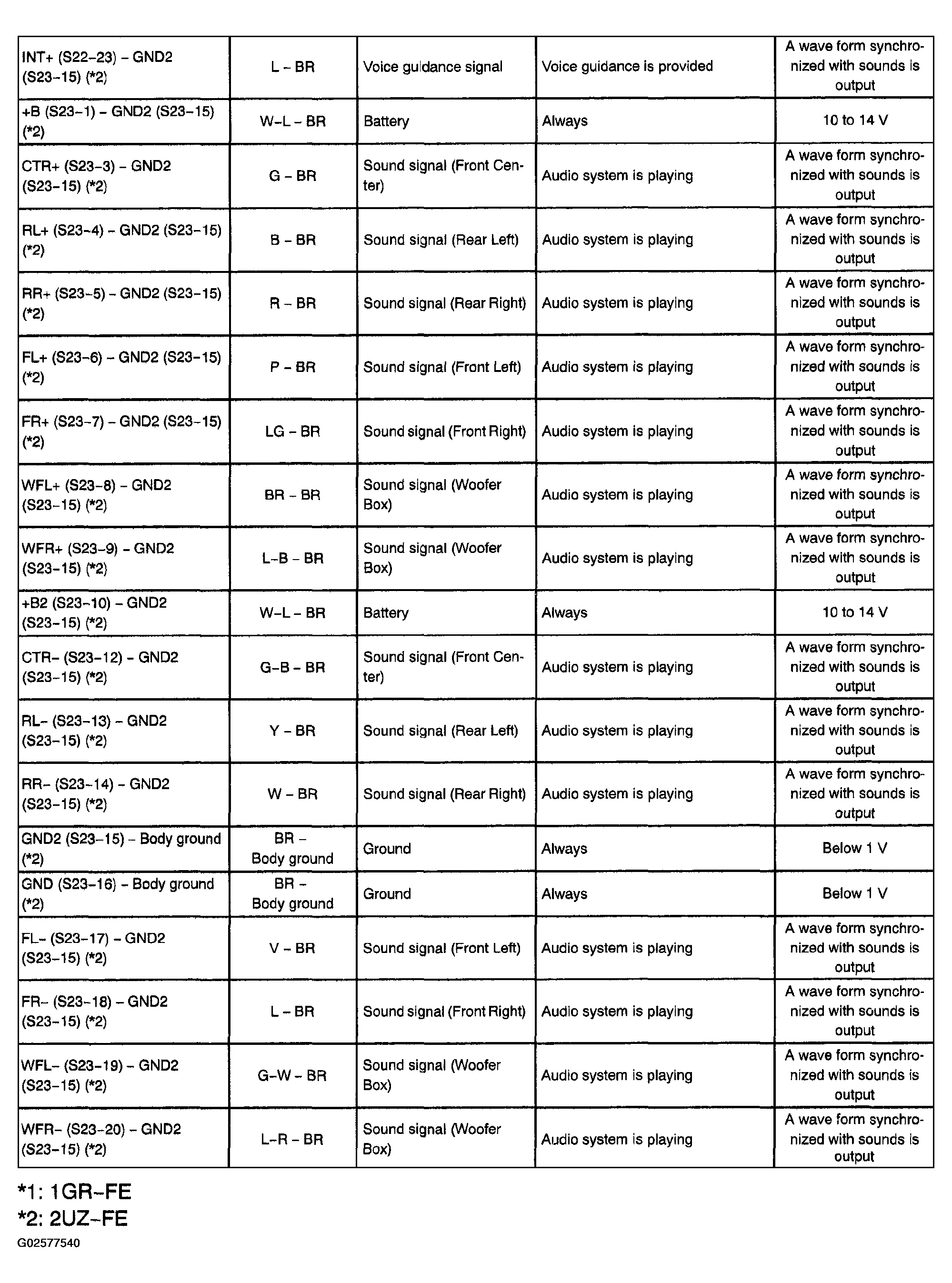

Fig 7: Stereo Component Amplifier Assy ECU Terminals Voltage Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT CONTROLLER ASSY

Fig 8: Identifying Stereo Component Controller Assy ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

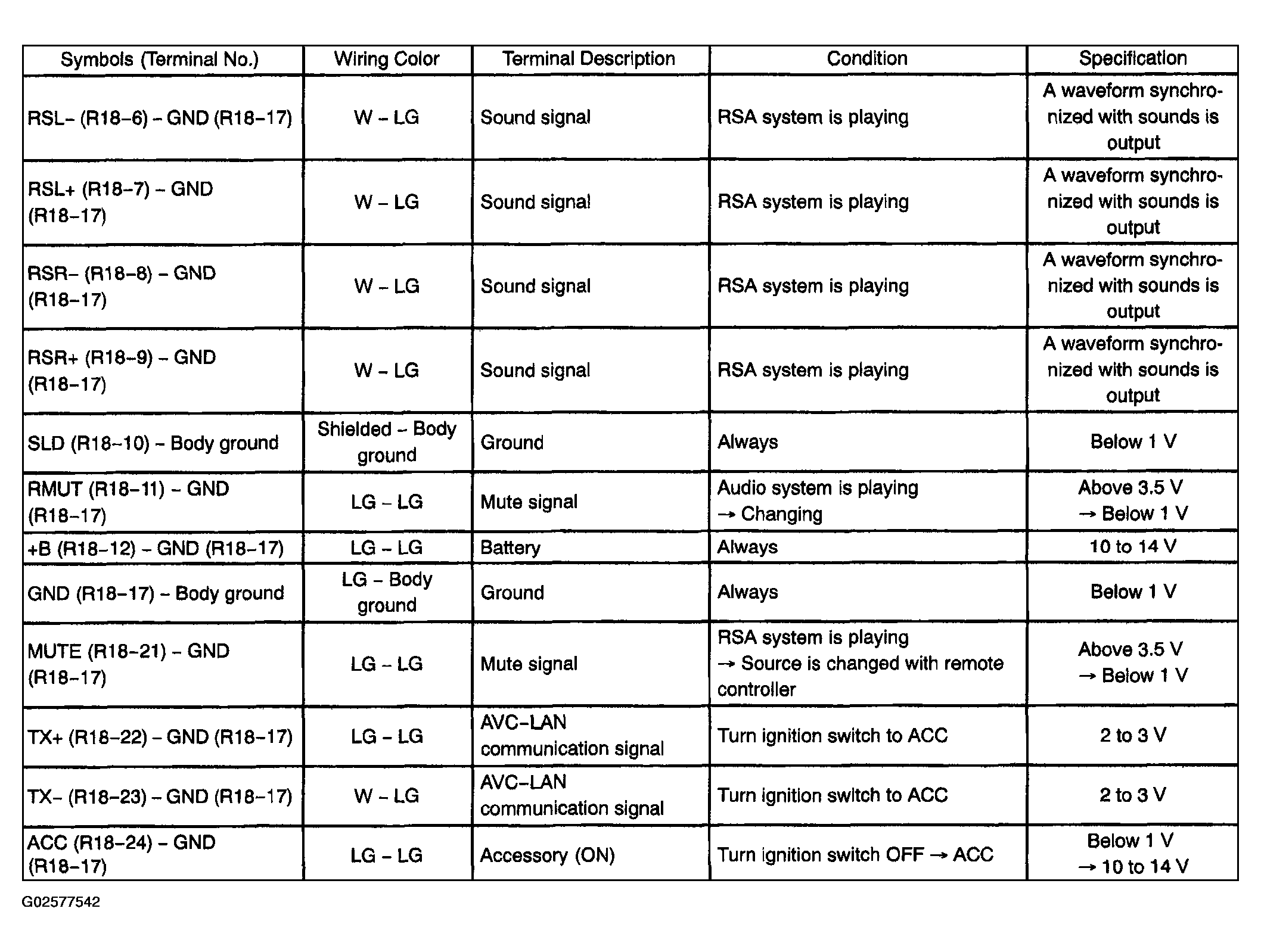

Fig 9: Stereo Component Controller Assy ECU Terminals Voltage Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
