W/Holder Antenna ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE TONNEAU COVER STOPPER SUB-ASSY RH (See  OVERHAUL  )
2. REMOVE REAR FLOOR FINISH PLATE (See  OVERHAUL  )
3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  OVERHAUL  )
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  OVERHAUL  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  OVERHAUL  )
6. REMOVE SPARE WHEEL COVER ASSY (See  OVERHAUL  )
7. REMOVE TOOL BOX COVER (See  OVERHAUL  )
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR (See  OVERHAUL  )
9. REMOVE TONNEAU COVER ASSY (See  OVERHAUL  )
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  OVERHAUL  )
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  OVERHAUL  )
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH (See  OVERHAUL  )
13. REMOVE W/HOLDER ANTENNA ASSY

1. Remove the antenna nut and antenna ornament.

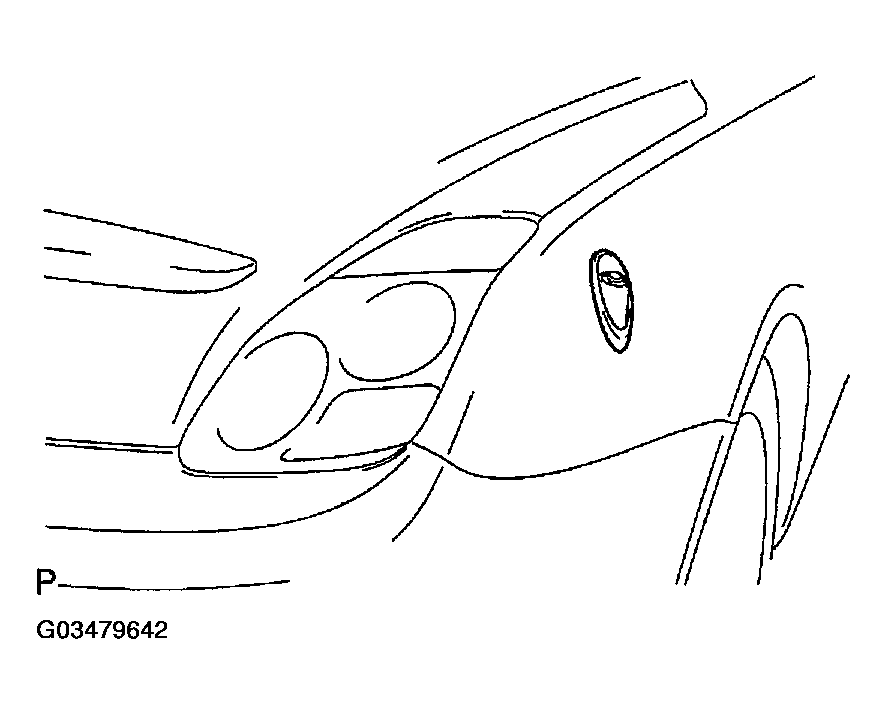

   Fig 1: Removing Antenna Ornament

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and antenna cord plug from the w/ holder antenna assy.
3. Remove the nut and w/ holder antenna assy.

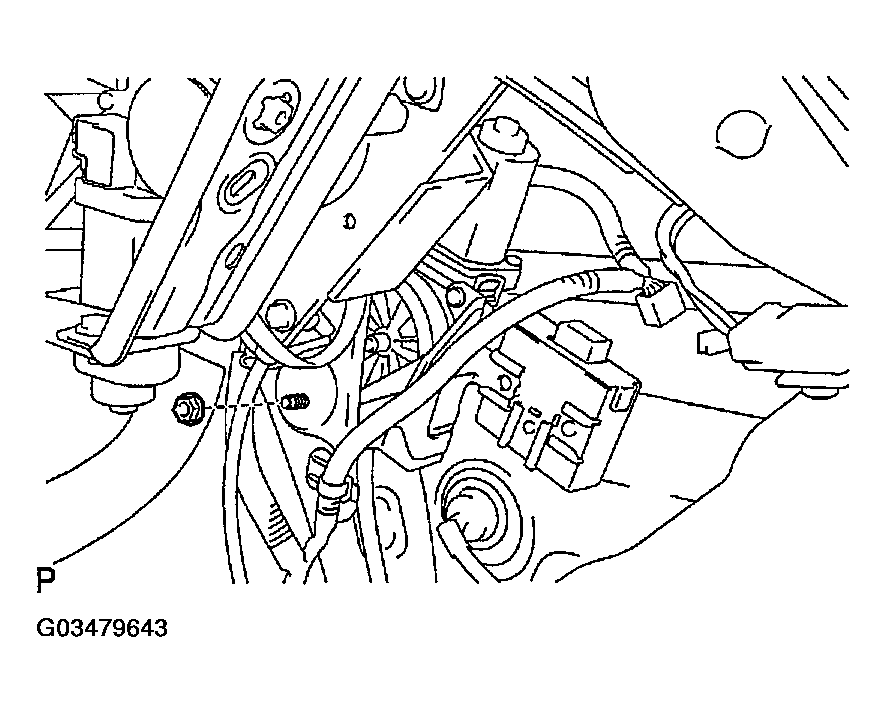

   Fig 2: Removing W/ Holder Antenna Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
