Name Plate: Replacement

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

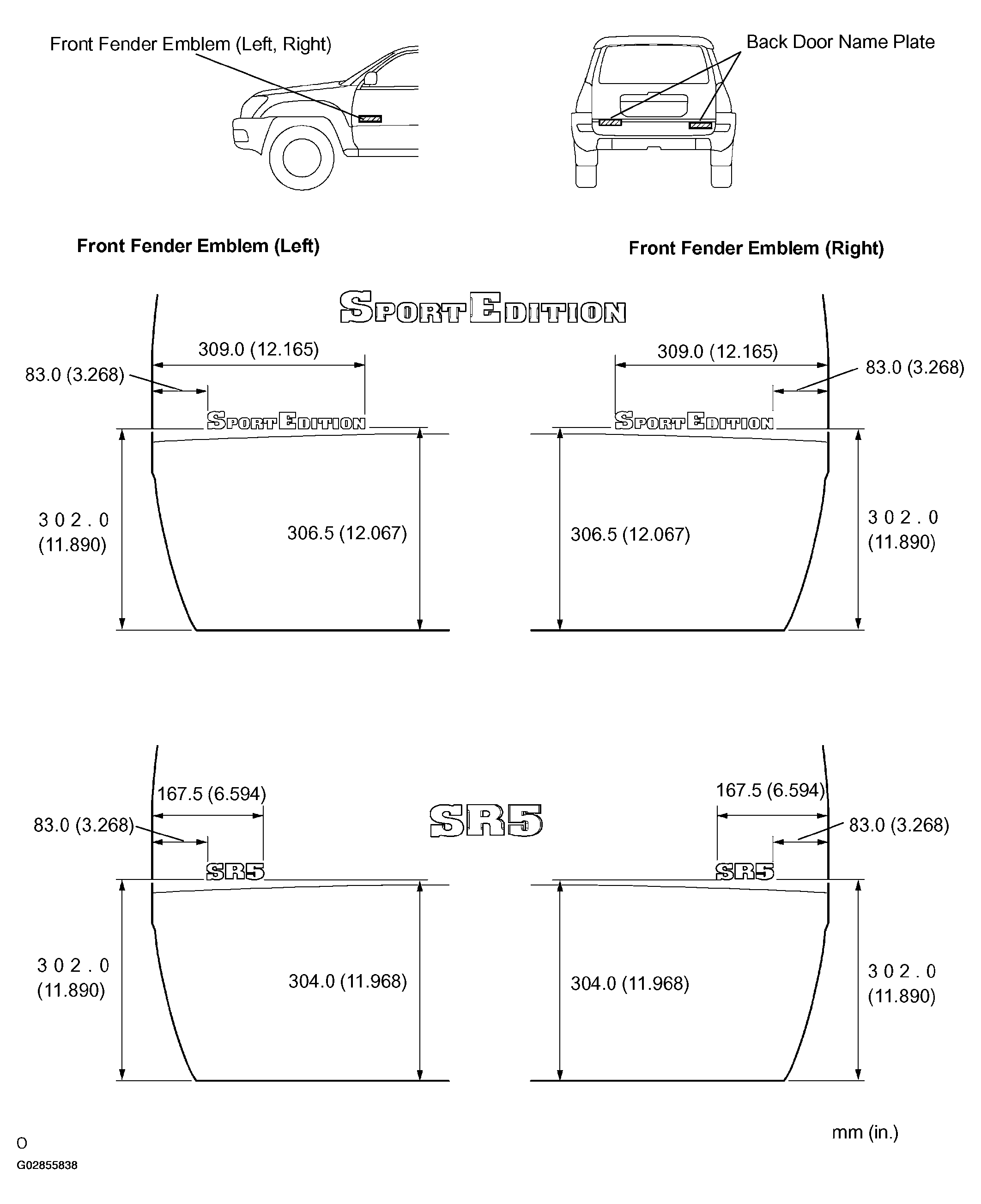

Fig 1: Identifying Name Plate Replacement Locations (1 Of 3)
G02855838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

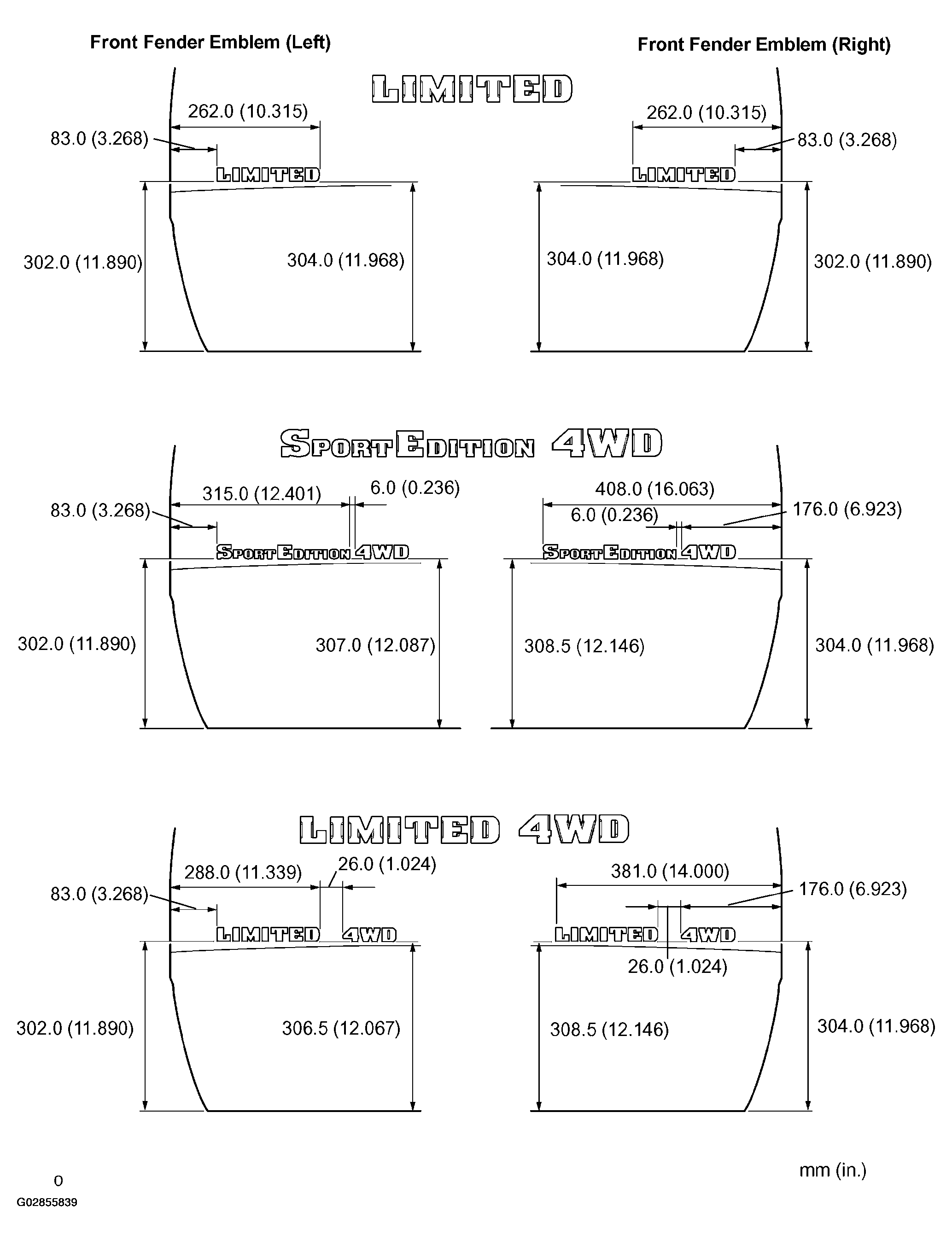

Fig 2: Identifying Name Plate Replacement Locations (2 Of 3)
G02855839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

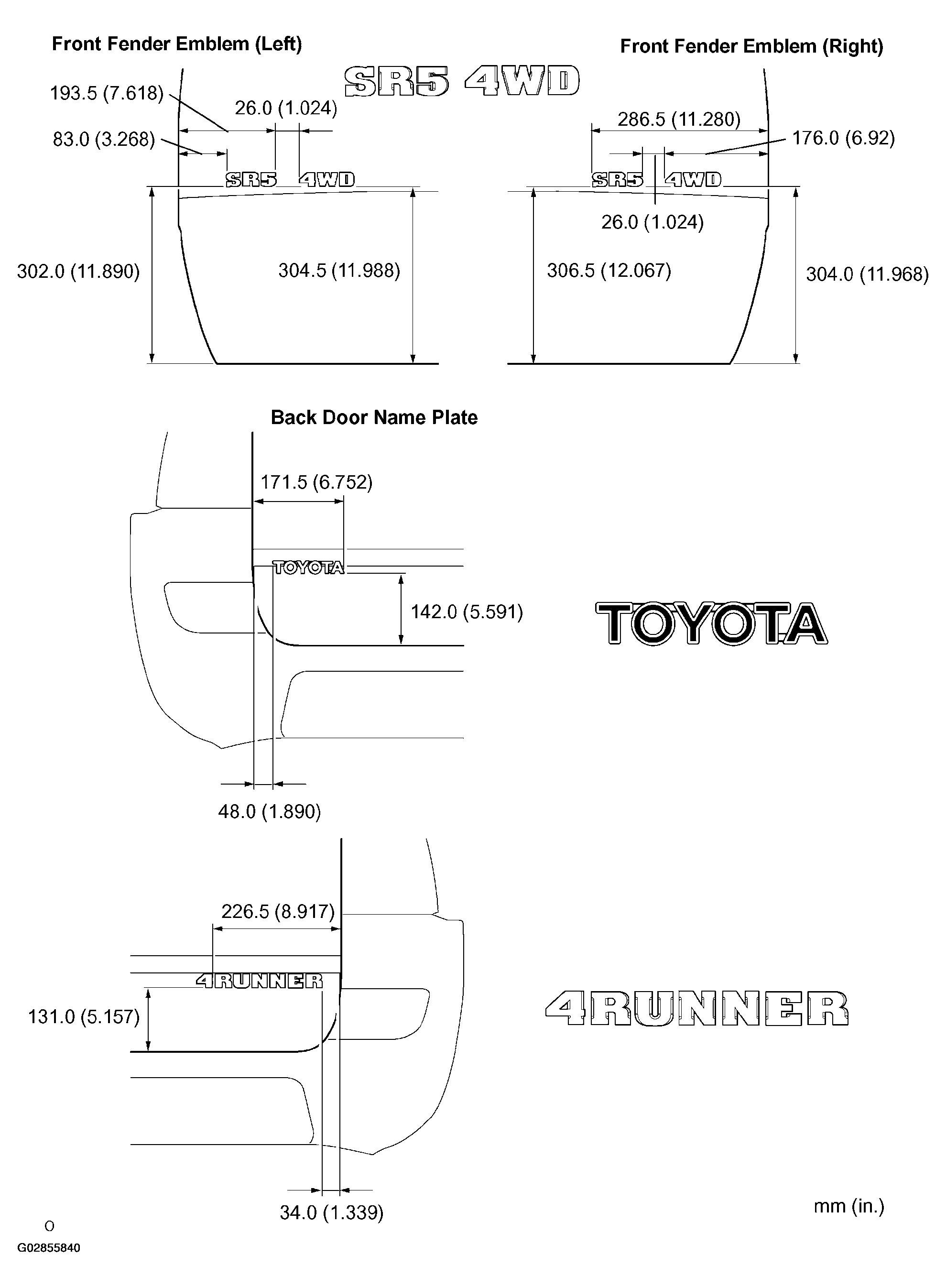

Fig 3: Identifying Name Plate Replacement Locations (3 Of 3)
G02855840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
