LH Step Sub-ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

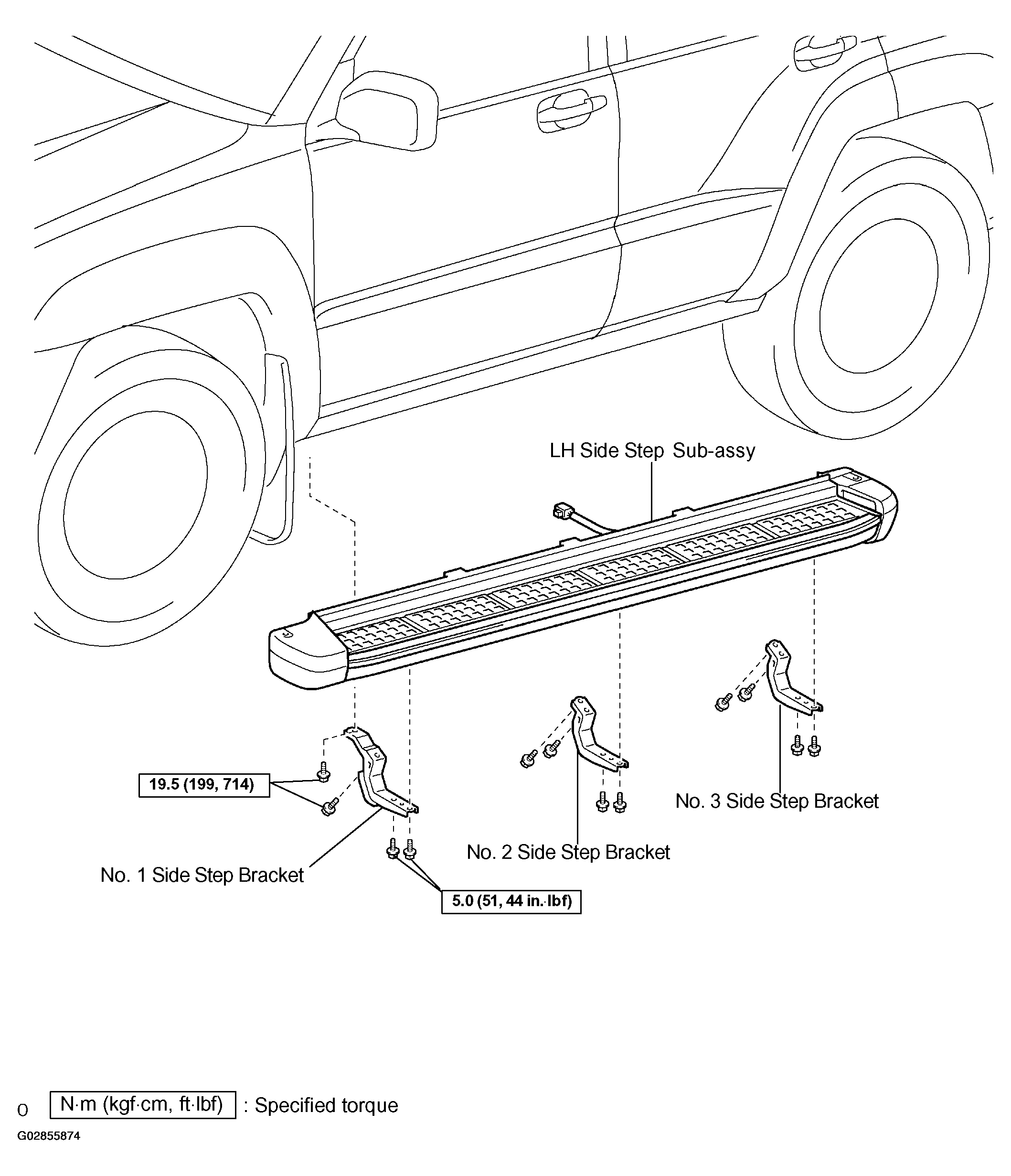

Fig 1: Identifying LH Step Sub-Assy Components
G02855874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
