Back Door: Components

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

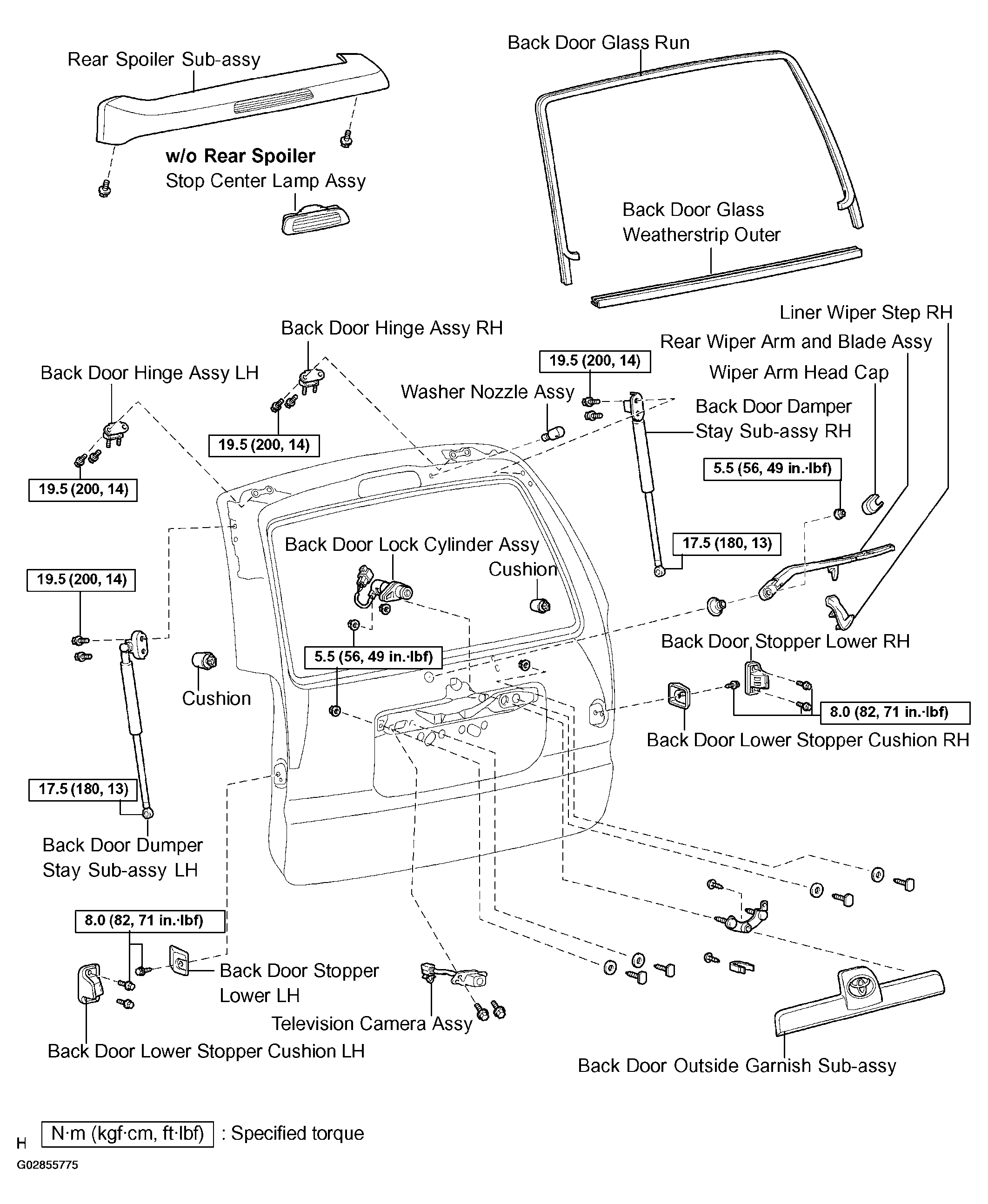

Fig 1: Exploded View Of Back Door (1 Of 2)
G02855775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

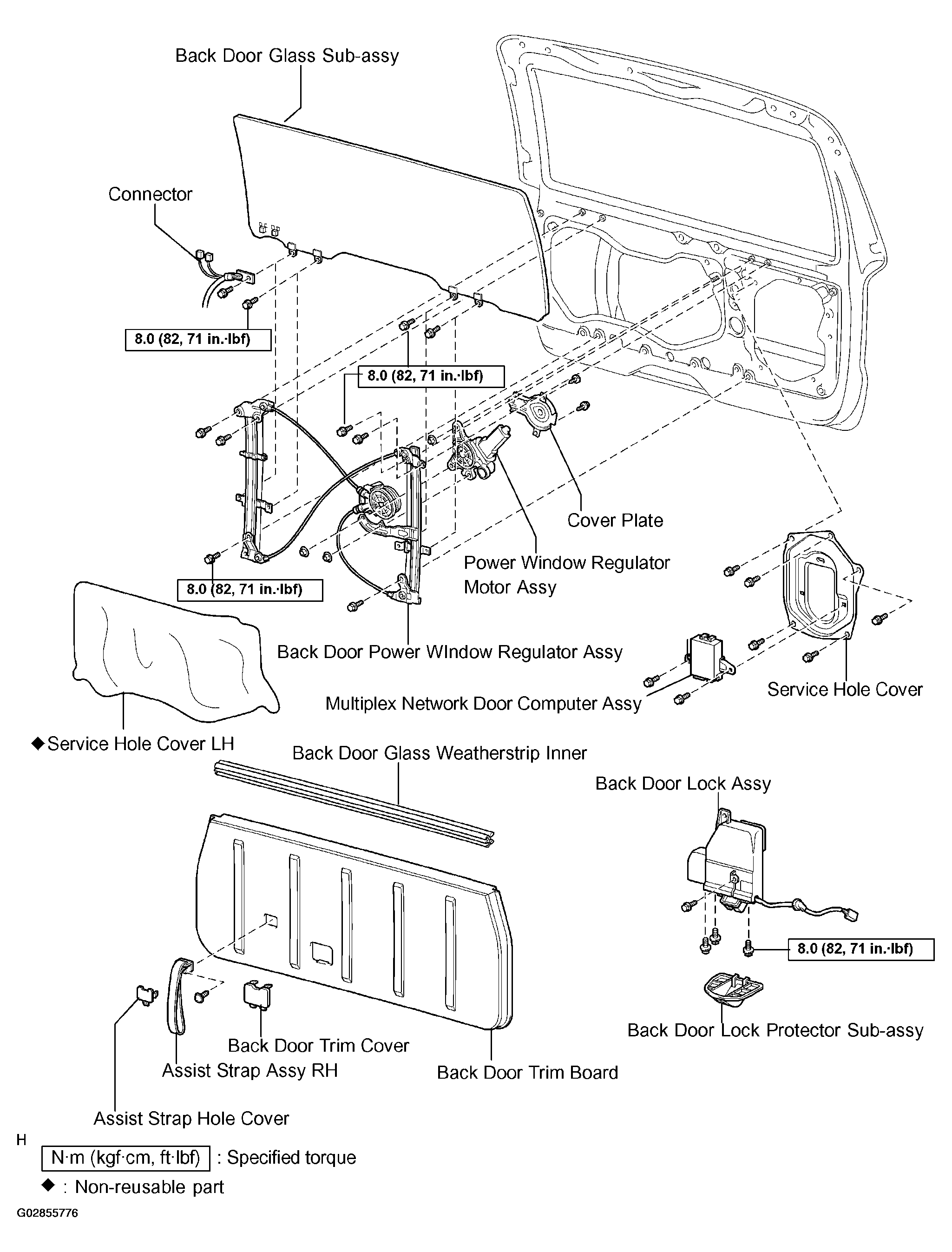

Fig 2: Exploded View Of Back Door (2 Of 2)
G02855776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
