Windshield Wiper Switch ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STEERING COLUMN COVER LWR (See  OVERHAUL  )
  2. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )
  3. REMOVE WINDSHIELD WIPER SWITCH ASSY
    1. Disconnect the connector.
      Fig 1: Disconnecting Connector
      G02574120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and windshield wiper switch assy.

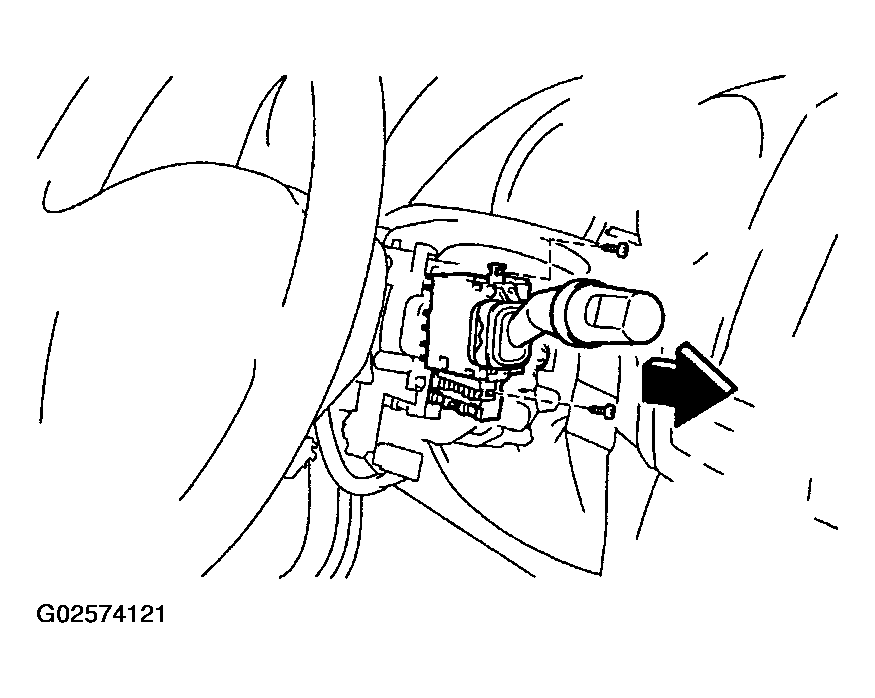

    Fig 2: Removing Windshield Wiper Switch Assy
    G02574121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
