Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

RADIO RECEIVER ASSY

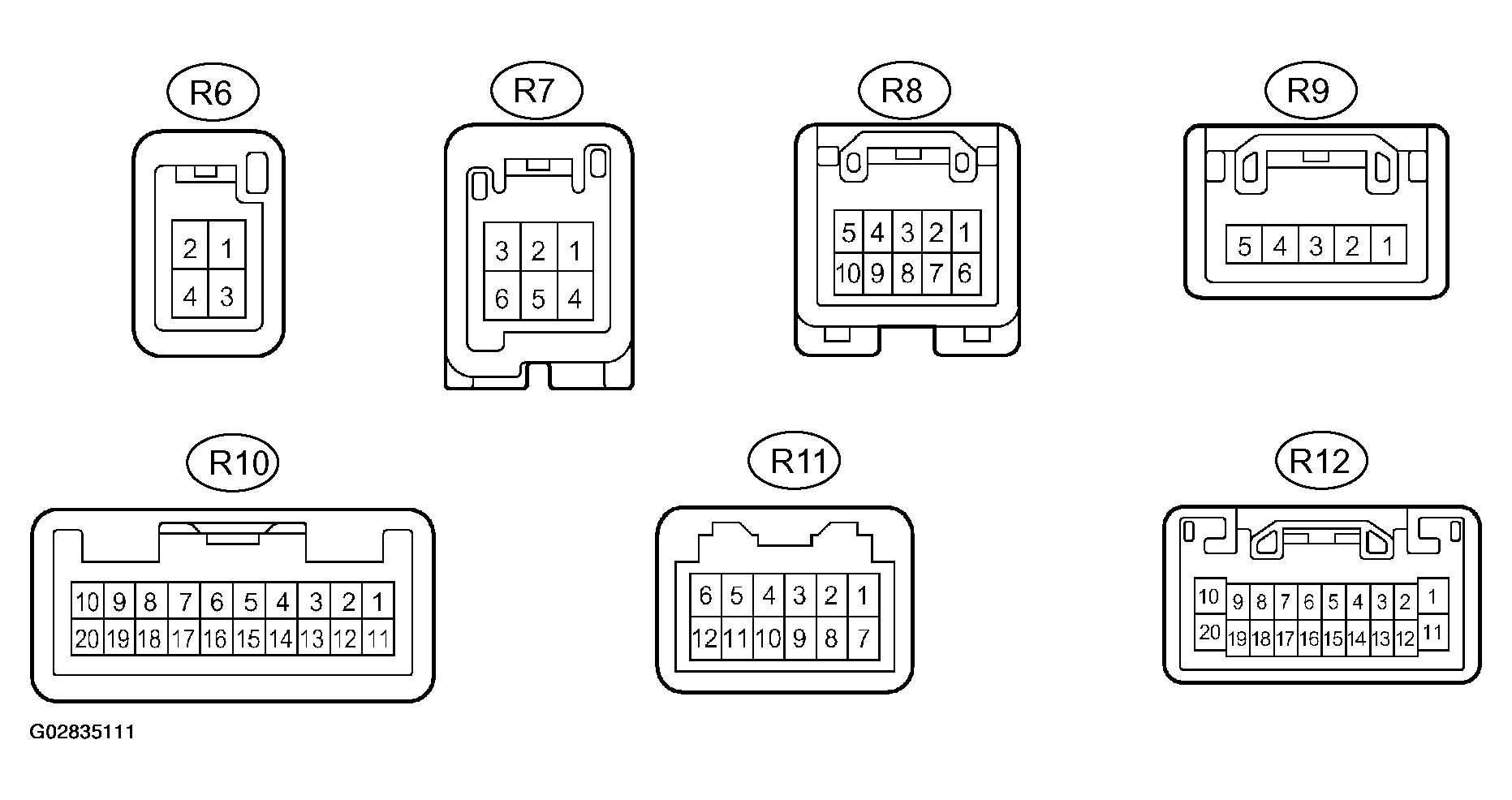

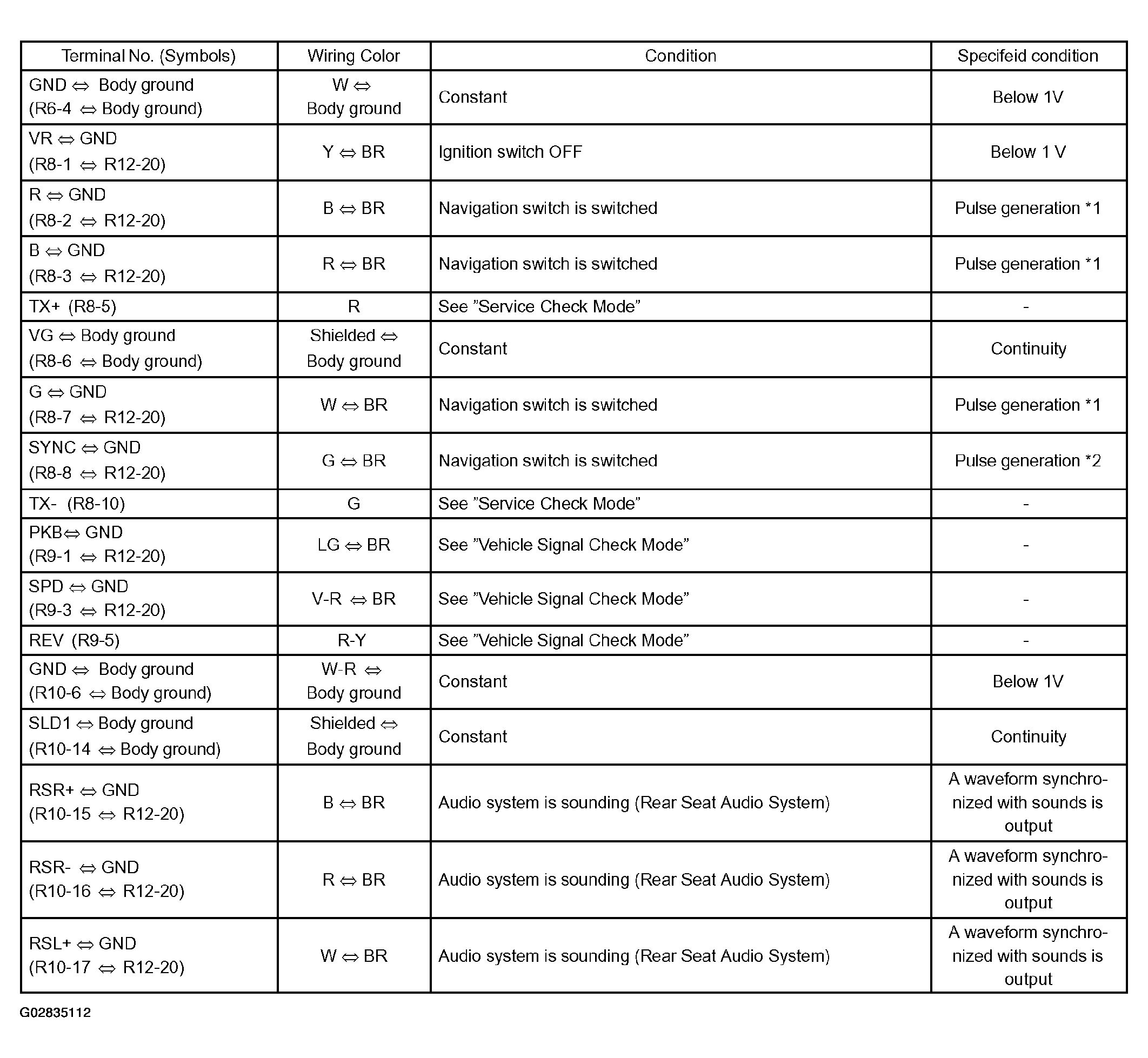

Fig 1: Identifying Terminals Of ECU Radio Receiver Assy (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

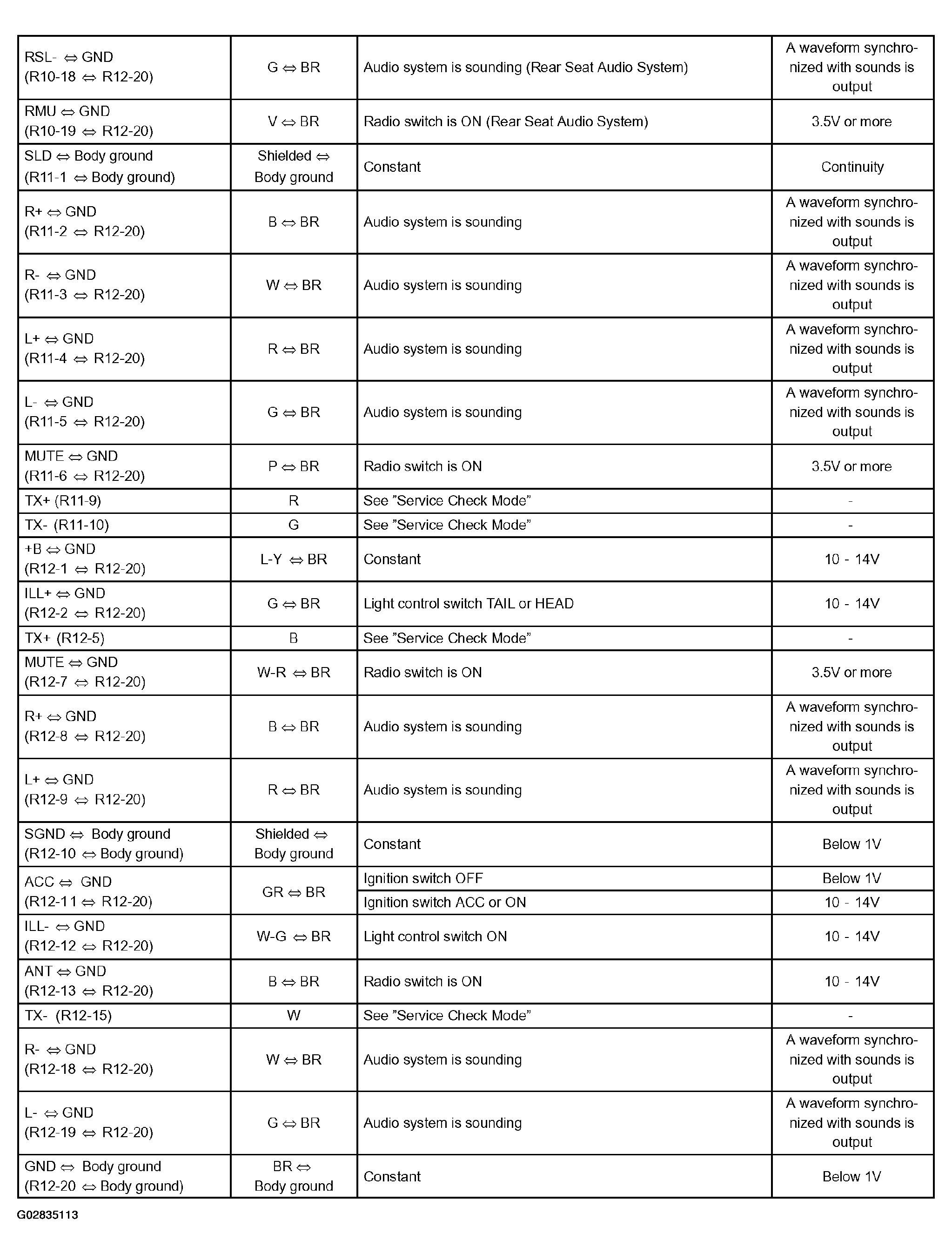

Fig 2: Identifying Terminals Of ECU Radio Receiver Assy (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Terminals Of ECU Radio Receiver Assy (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

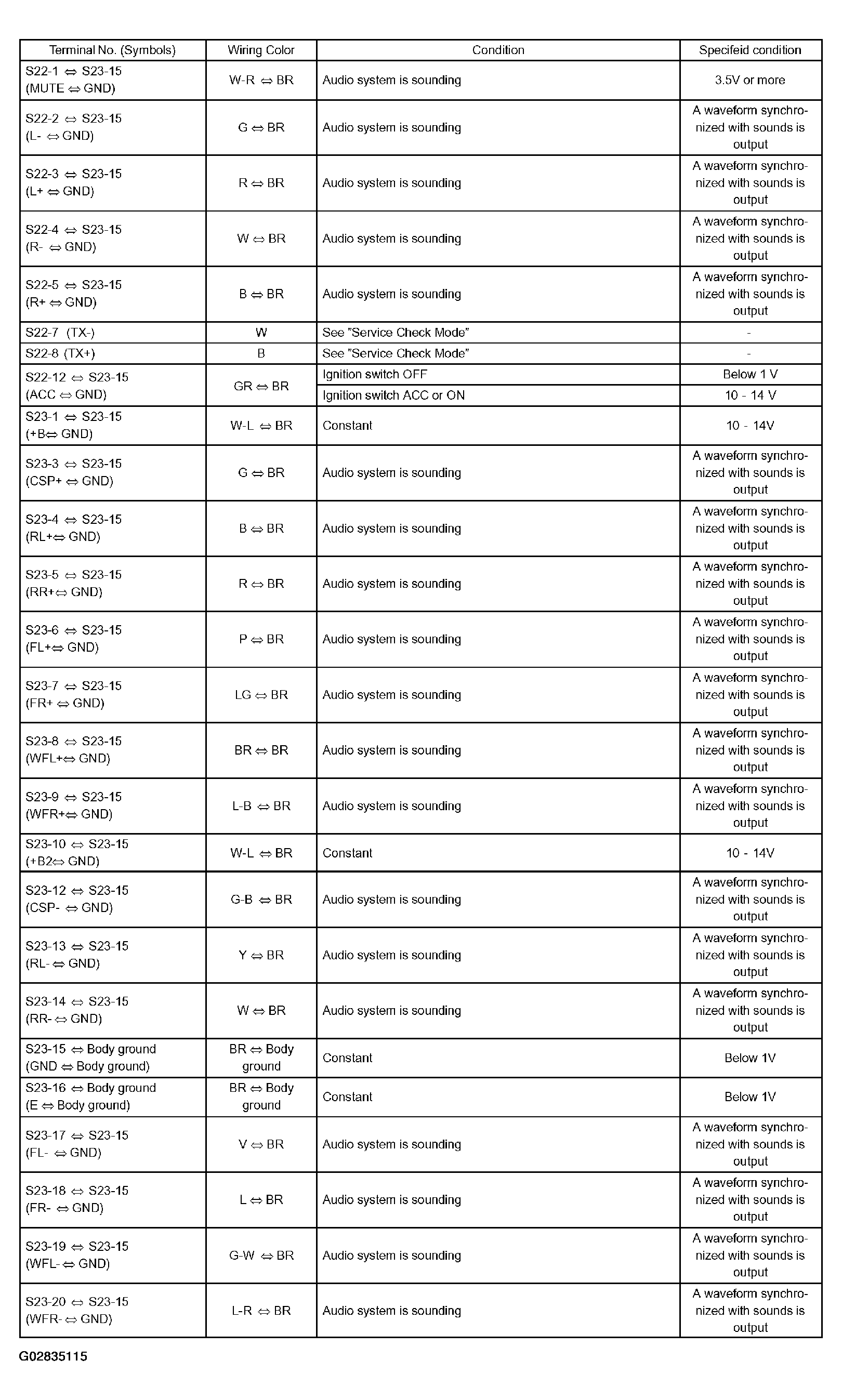

Fig 4: Identifying Terminals Of ECU Stereo Component Amplifier Assy (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Terminals Of ECU Stereo Component Amplifier Assy (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NAVIGATION ECU

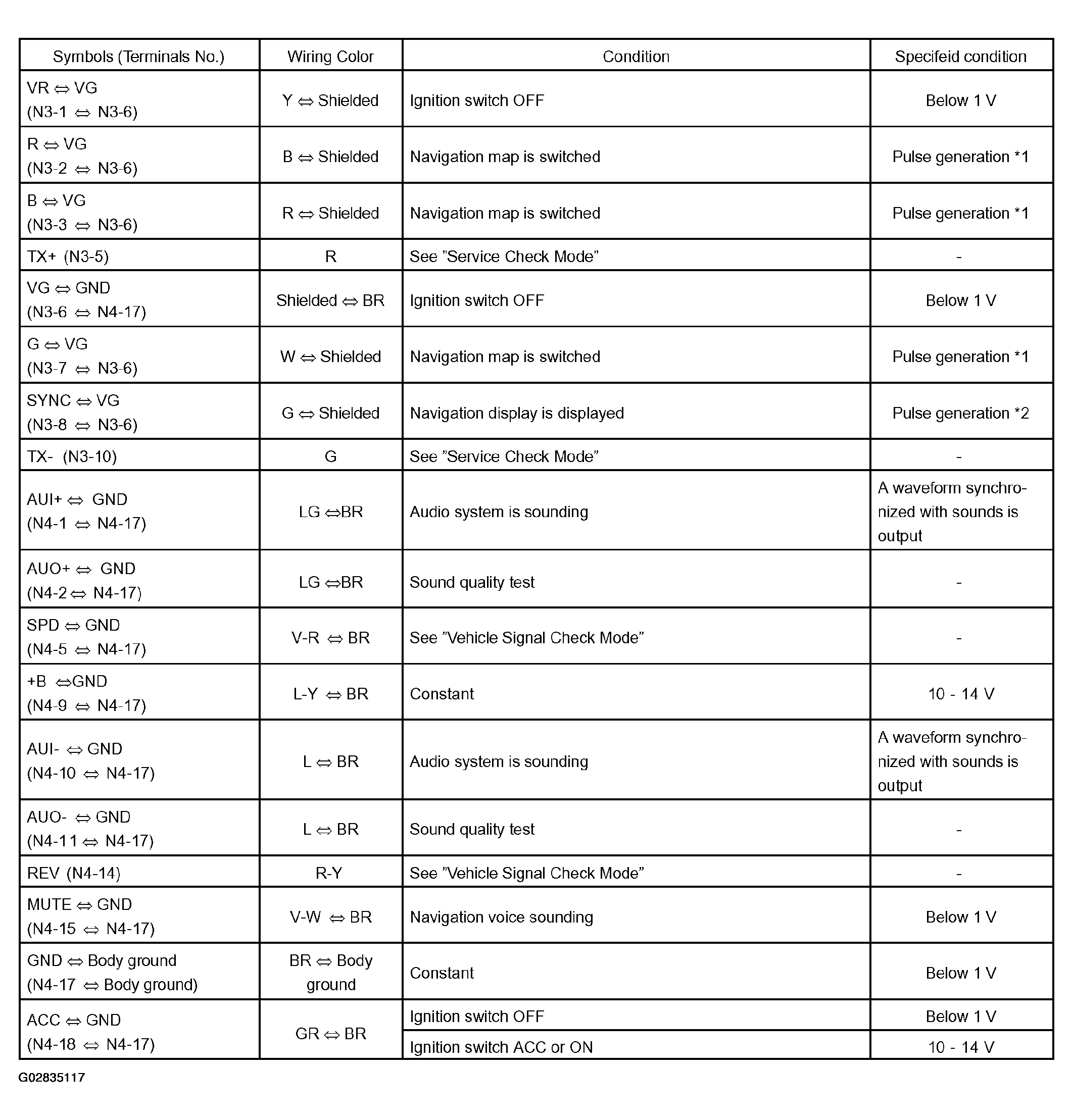

Fig 6: Identifying Terminals Of Navigation ECU (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Terminals Of Navigation ECU (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT CONTROLLER ASSY

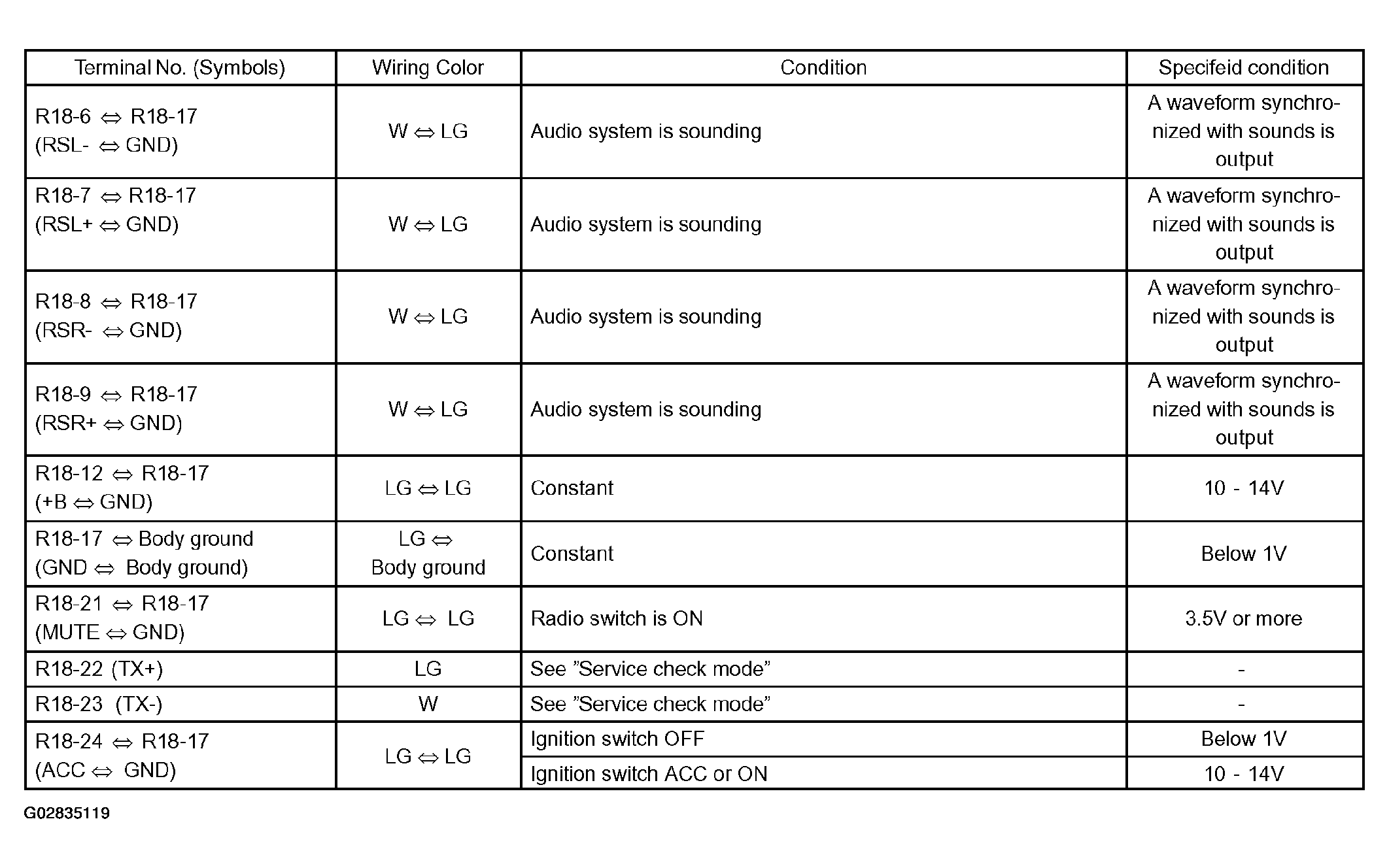

Fig 8: Identifying Terminals Of Stereo Component Controller Assy (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Terminals Of Stereo Component Controller Assy (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISC PLAYER ASSY:

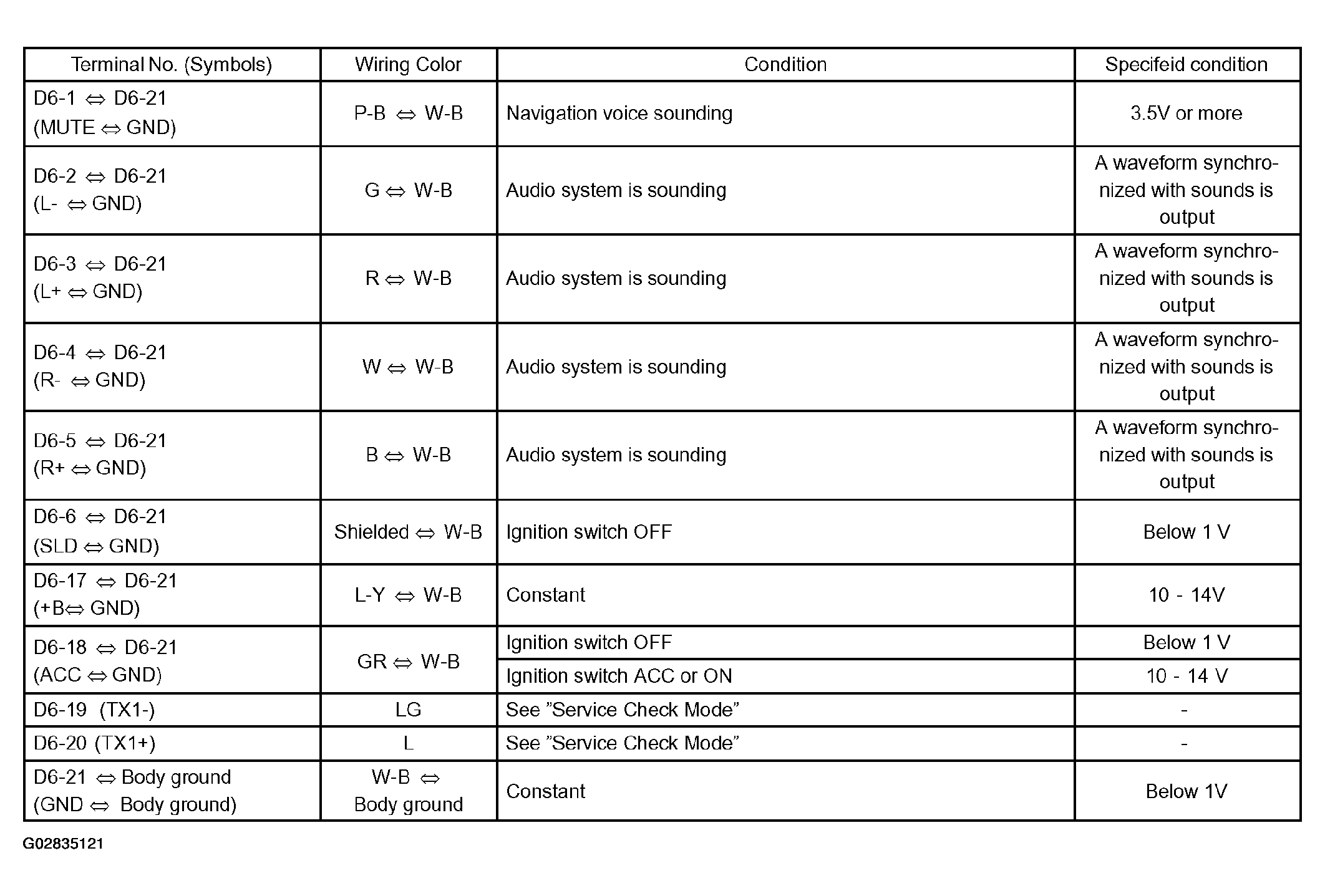

Fig 10: Identifying Terminals Of Disc Player Assy (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Terminals Of Disc Player Assy (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1: Oscilloscope wave

Terminal to be measured: R, G, B - GND Setting for measurement: 200 mV/DIV10 mus/DIV

Condition: Navigation map is switched.

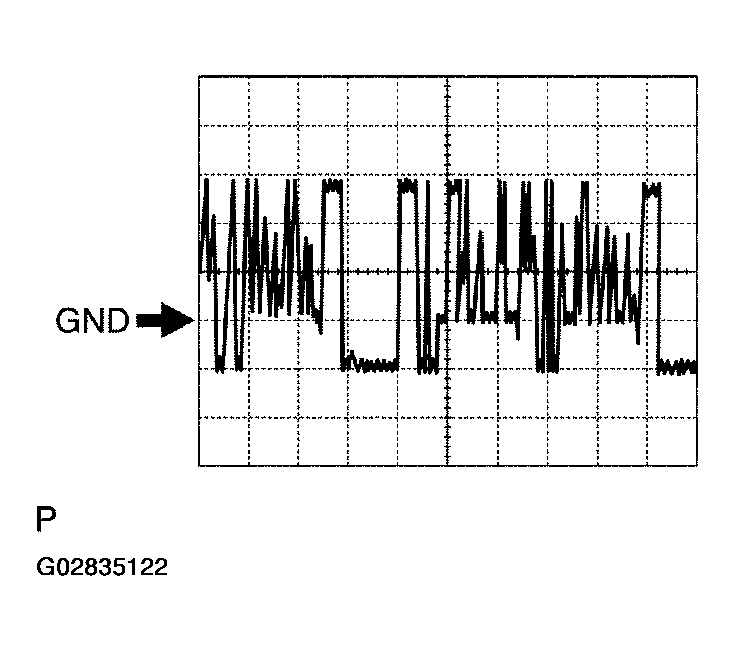

Fig 12: Identifying Oscilloscope Wave R, G, B - Gnd
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*2: Oscilloscope wave

Terminal to be measured: SYNC - GND Setting for measurement: 500 mV/DIV10 mus/DIV

Condition: Navigation display is displayed.

Fig 13: Identifying Oscilloscope Wave Sync - Gnd
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
