Roof Rack Assembly: Components

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

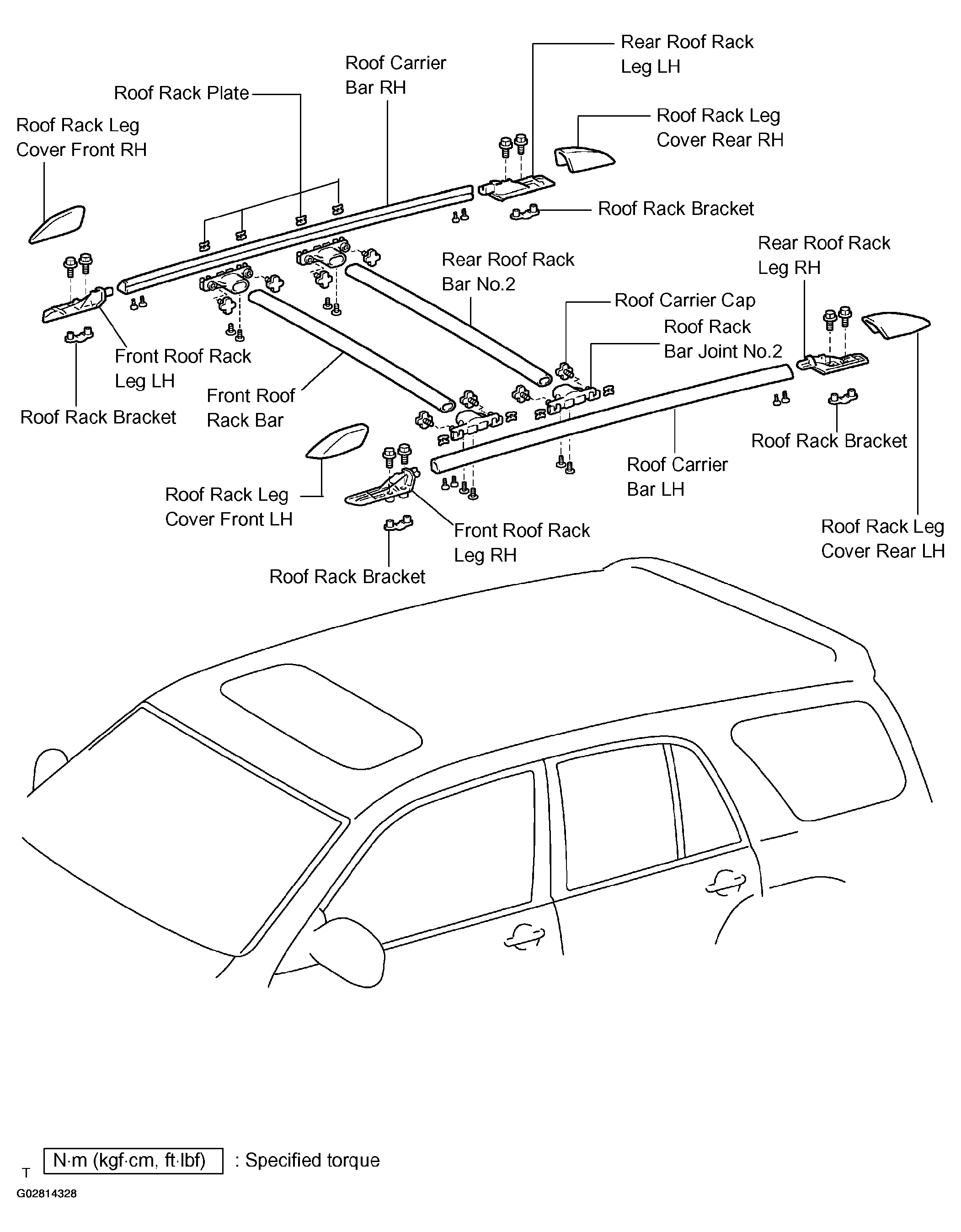

Fig 1: Identifying Roof Rack Components
G02814328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
