Roof Headlining: Components

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

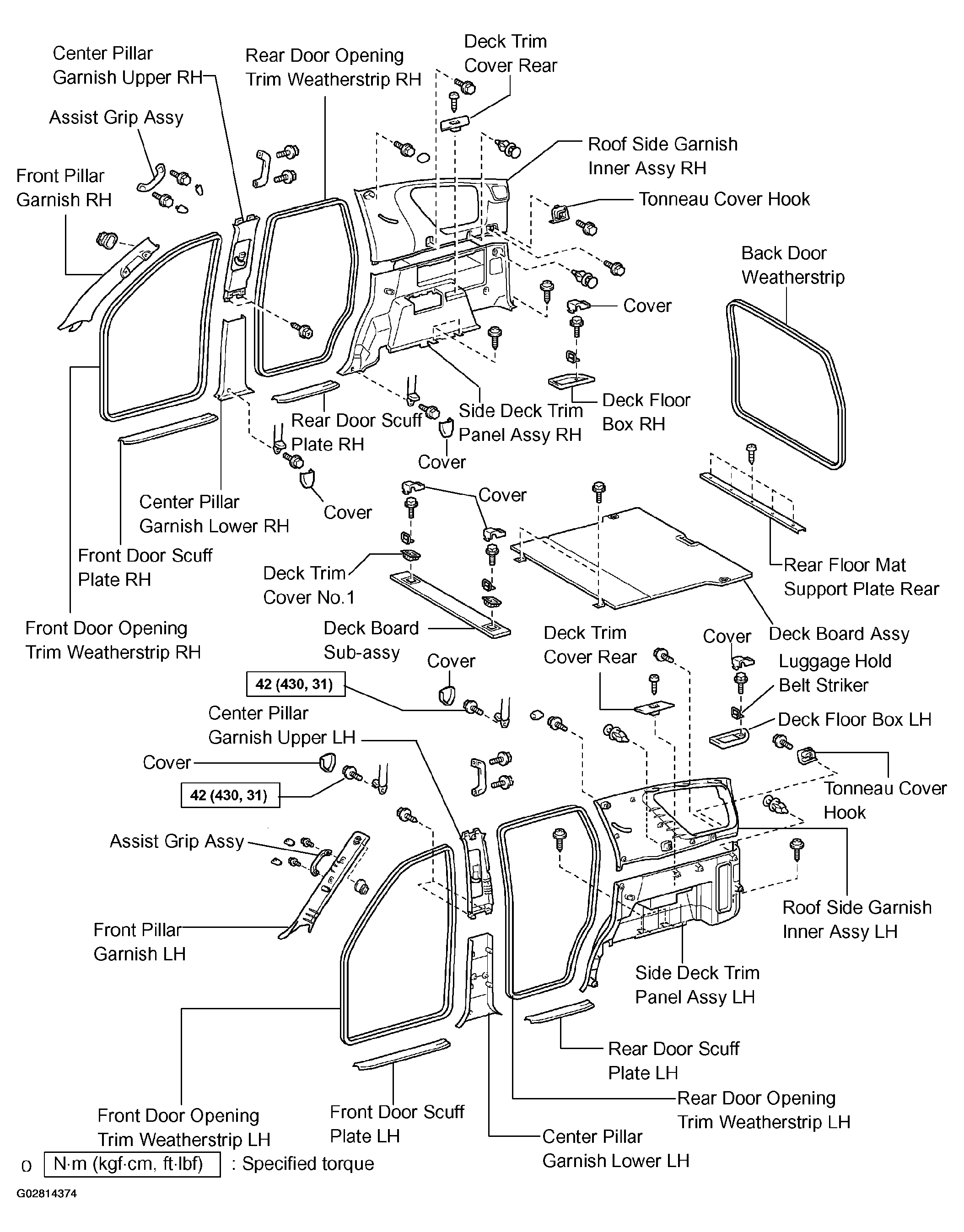

Fig 1: Exploded View Of Roof Headlining Components (1 Of 2)
G02814374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

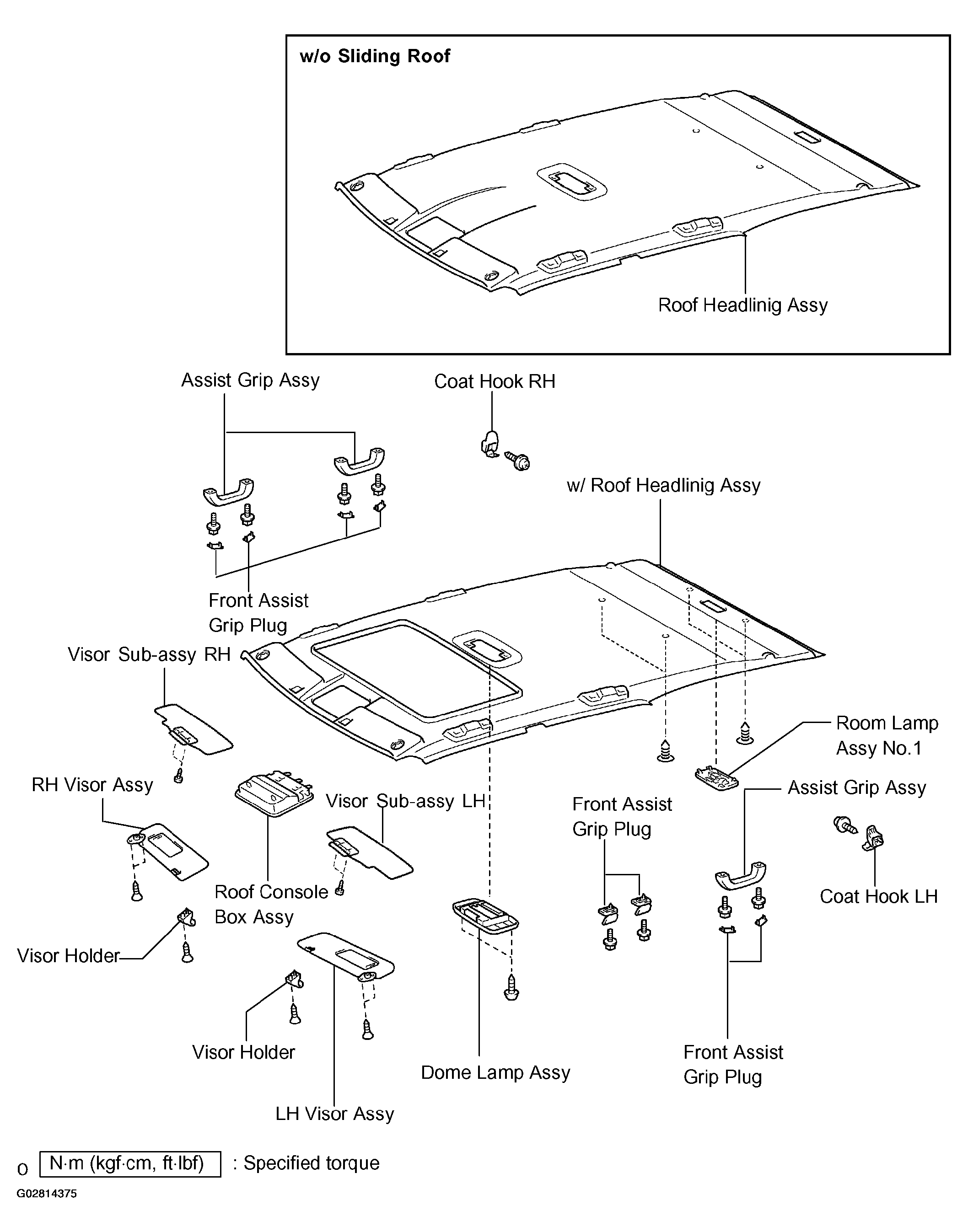

Fig 2: Exploded View Of Roof Headlining Components (2 Of 2)
G02814375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
