Name Plate: Replacement

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

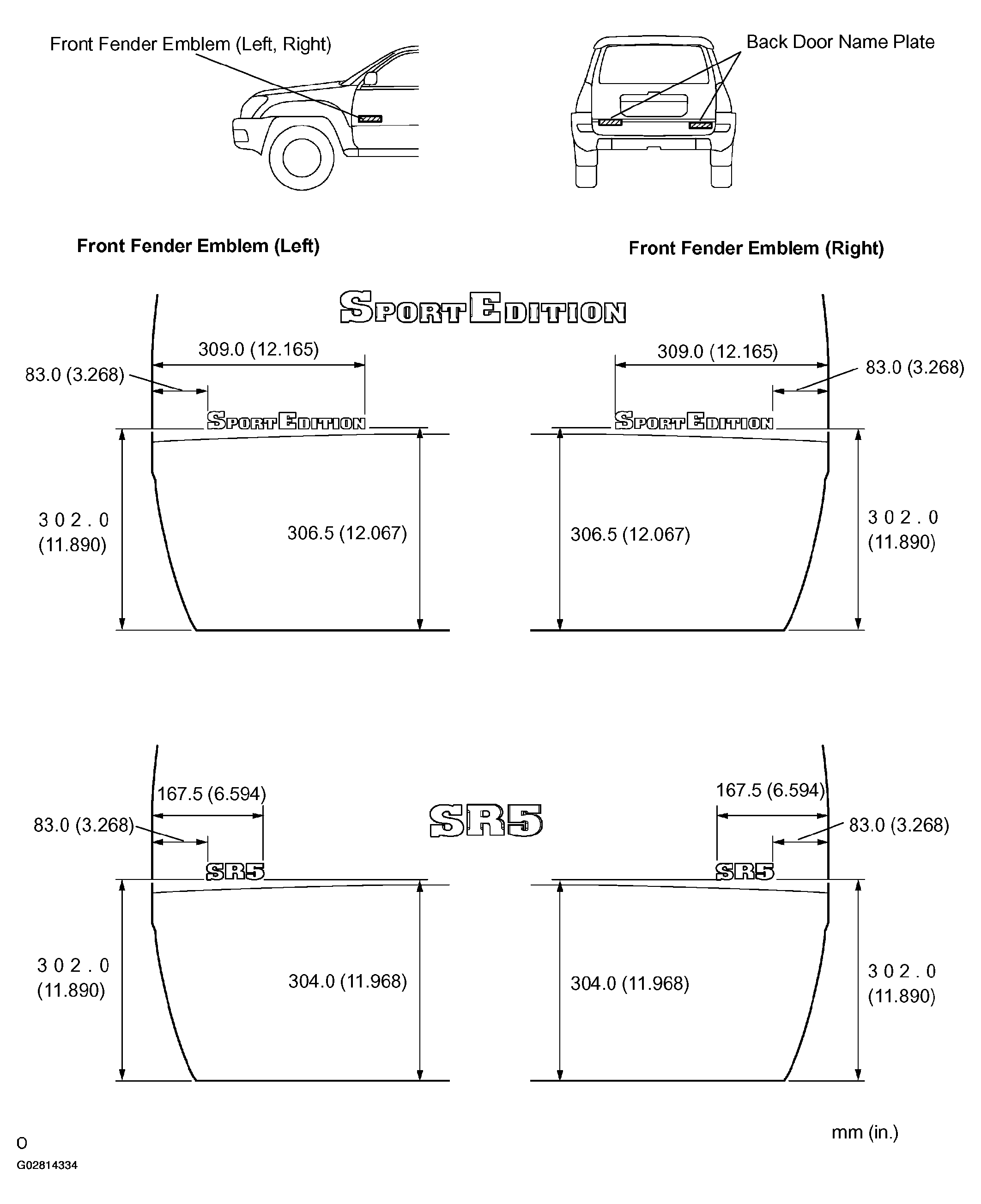

Fig 1: Identifying 2WD Front Fender Emblem (Right And Left) Placing Dimensions
G02814334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

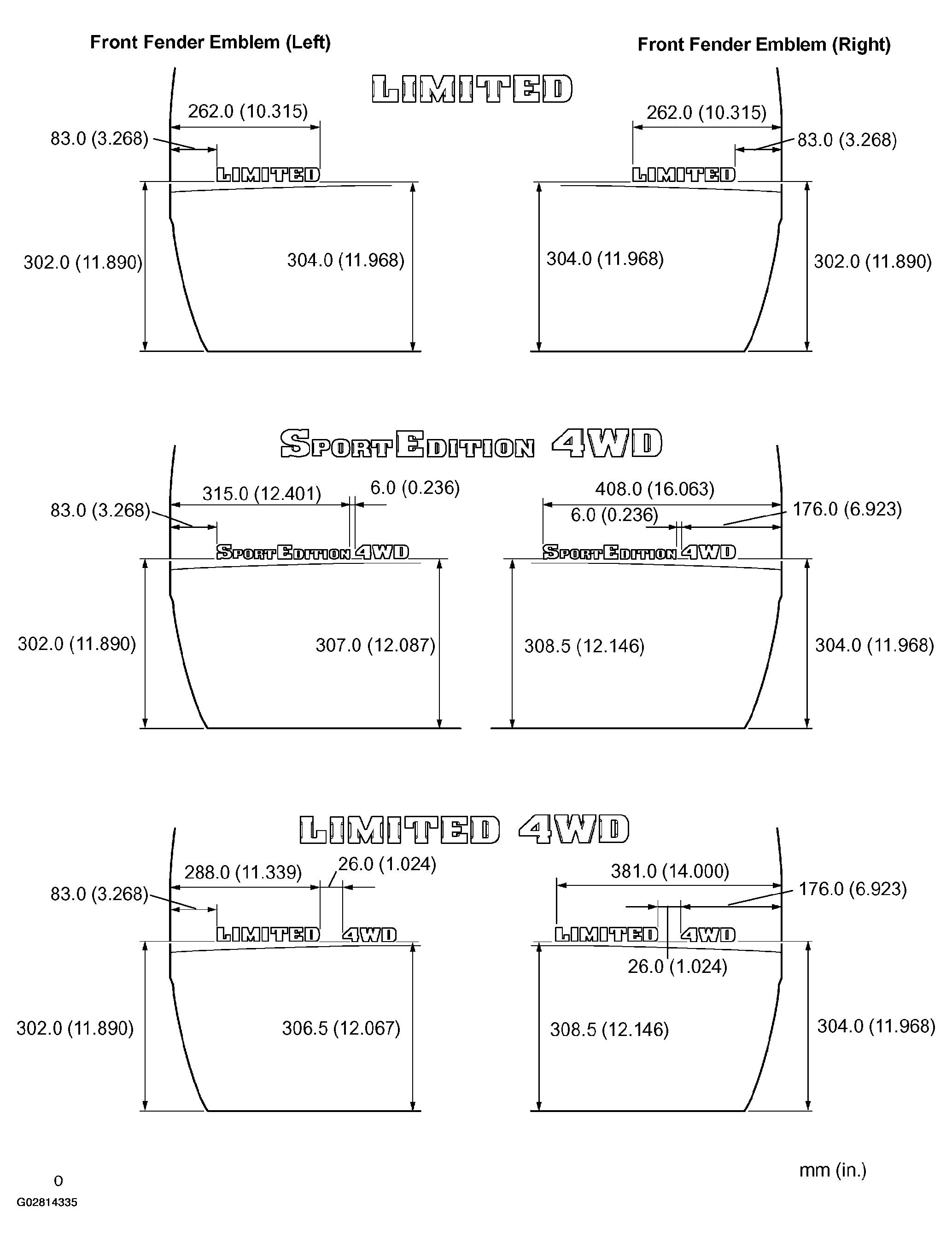

Fig 2: Identifying 4WD Front Fender Emblem (Right And Left) Placing Dimensions
G02814335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

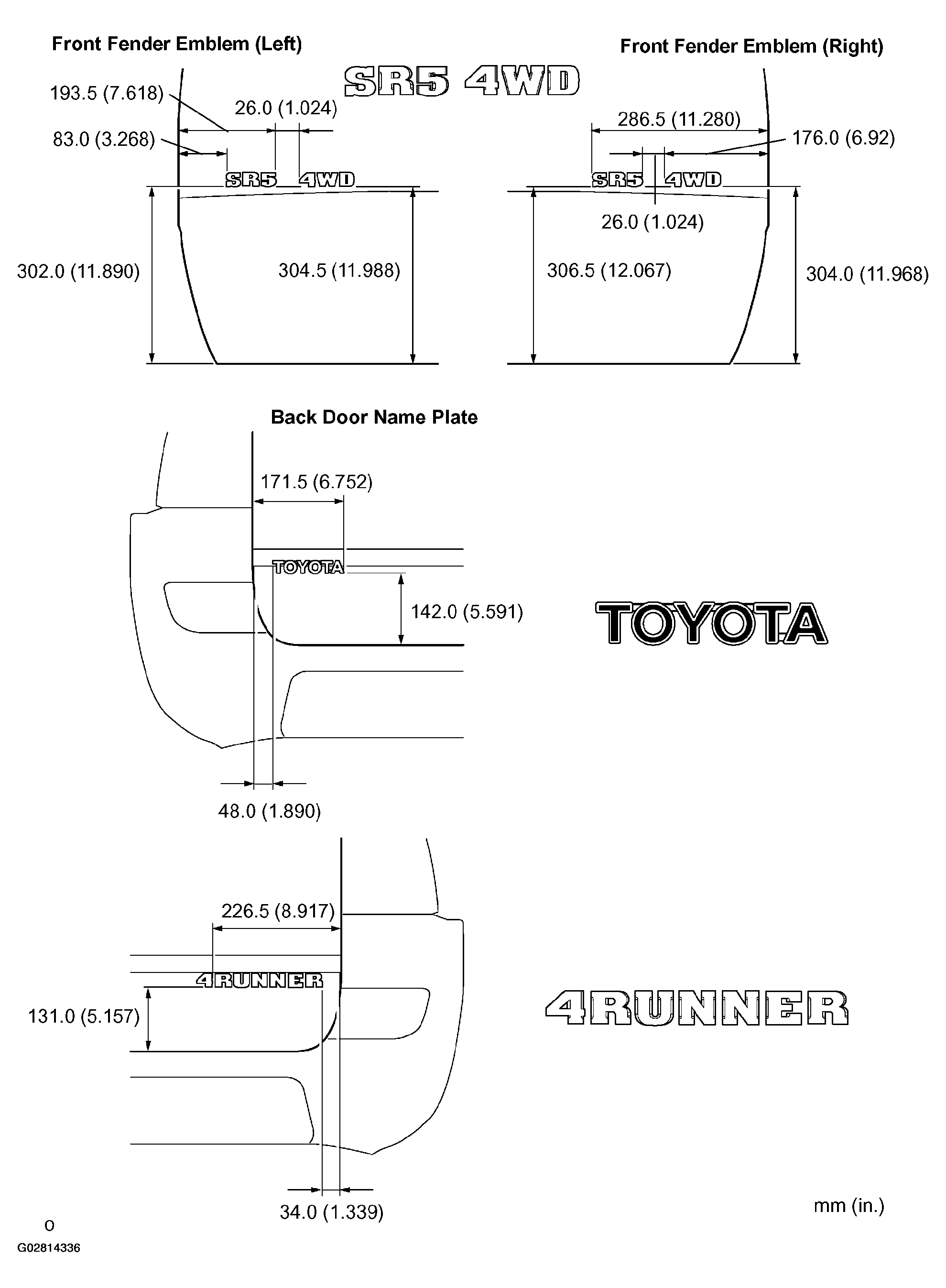

Fig 3: Identifying SR5 4WD Front Fender Emblem (Right And Left) & Back Door Name Plate Placing Dimensions
G02814336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
