Section 448 (Back Door): Adjustment

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Since the centering bolt is used as back door hinge set bolt on the door side, the back door can not be adjusted with it on. Substitute a bolt with washer for the centering bolt.

Fig 1: Identifying Centering And Standard Bolts

INSPECT BACK DOOR PANEL SUB-ASSY
1. Check that the clearance is within the standard value.

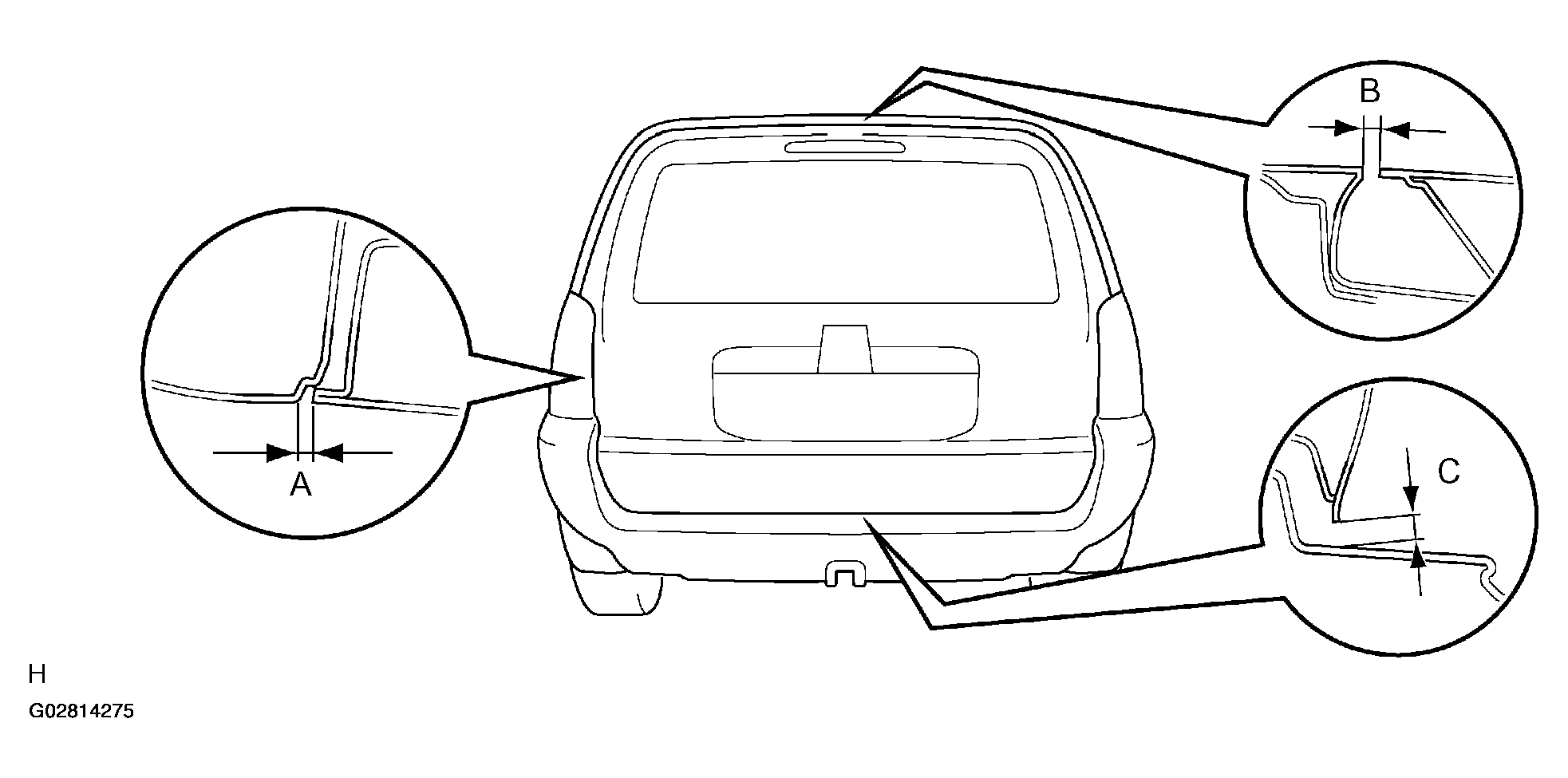

  Fig 2: Inspecting Back Door Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Fig 3: Back Door Panel Sub-Assy Specification Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST BACK DOOR PANEL SUB-ASSY
1. Adjust the door horizontally and forward/rearward by loosening the body side hinge nuts.

  Fig 4: Loosening Body Side Hinge Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the body side hinge nuts after adjustment.
  Torque: 19.5 N.m (200 kgf.cm, 14 ft.lbf)
3. Horizontally and vertically adjust the back door by loosening the back door side hinge bolts.

  Fig 5: Adjusting Back Door Panel Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the back door side hinge bolts after the adjustment.
  Torque: 19.5 N.m (200 kgf.cm, 14 ft.lbf)
5. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.

  Fig 6: Adjusting Striker Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Tighten the striker mounting screws after the adjustment.
  Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)
7. Adjust the door stopper, as shown in Fig 7, so that the door can be opened/closed smoothly.

  Fig 7: Adjusting Door Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Tighten the door stopper after the adjustment.
  Torque: 8.0 N.m (82 kgf.cm, 71 ft.lbf)
