Sliding Roof Components

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

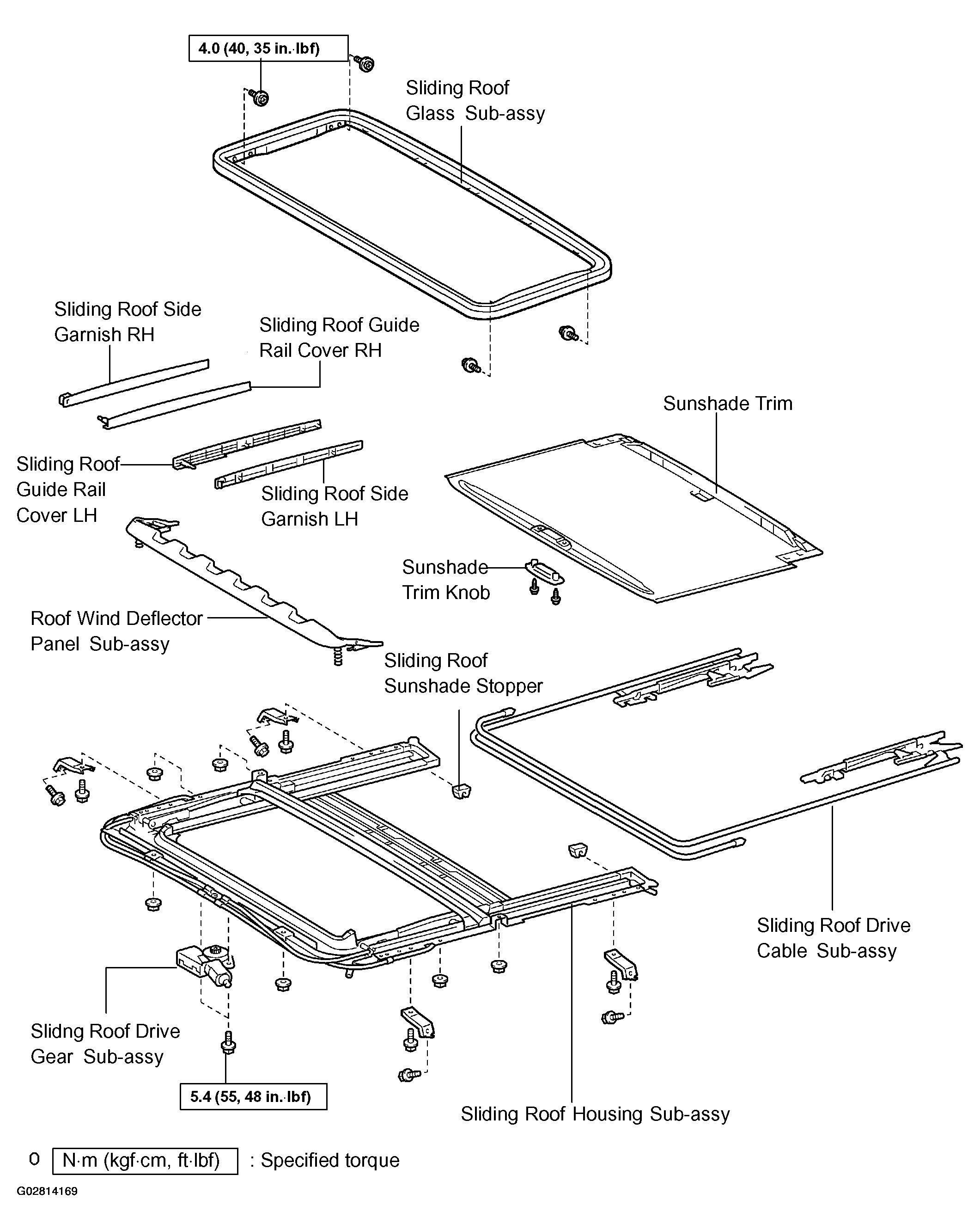

Fig 1: Locating Sliding Roof Components
G02814169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
