Steering Column ASSY Components

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

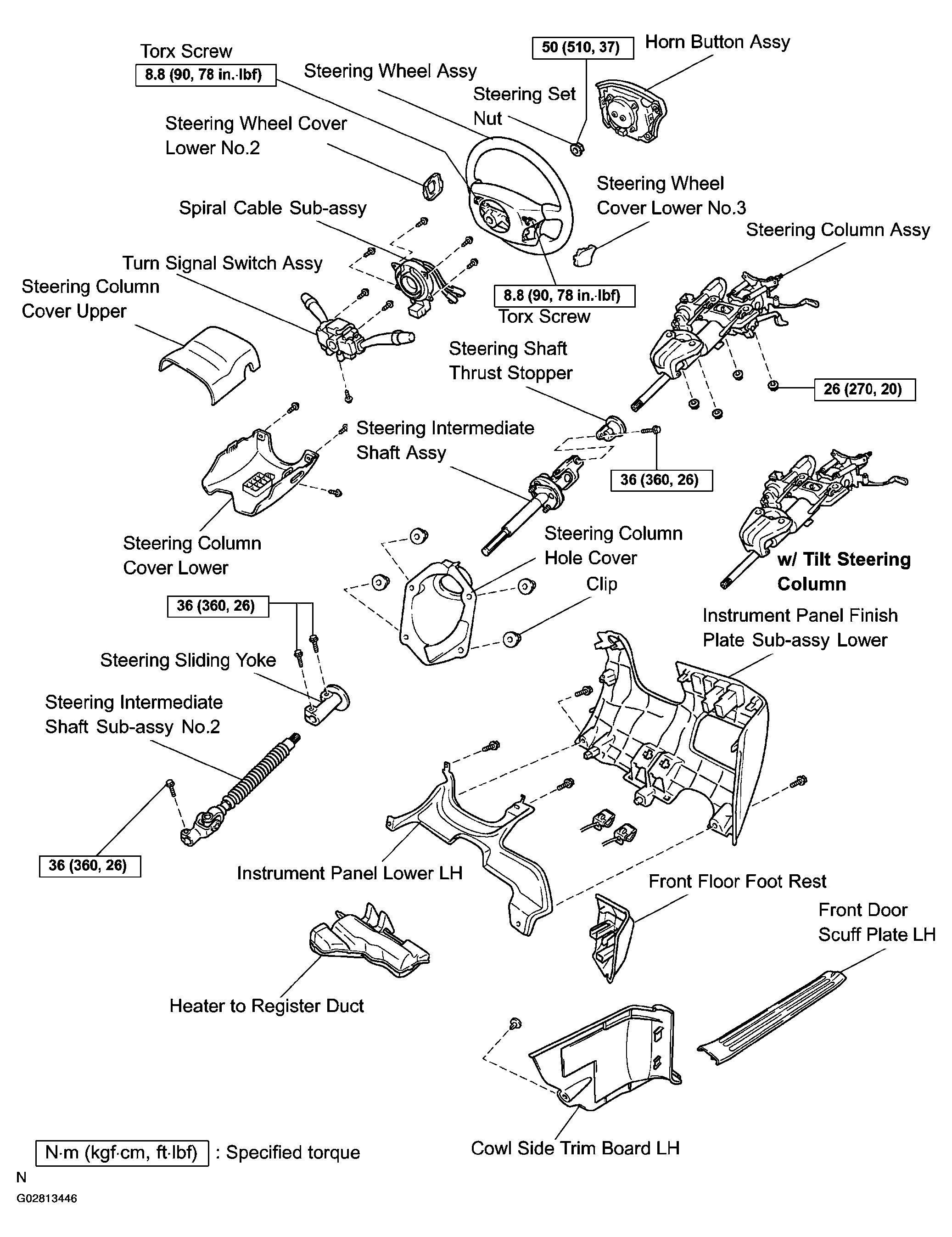

Fig 1: Locating Component Of Steering Column Assy (1 of 2)
G02813446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

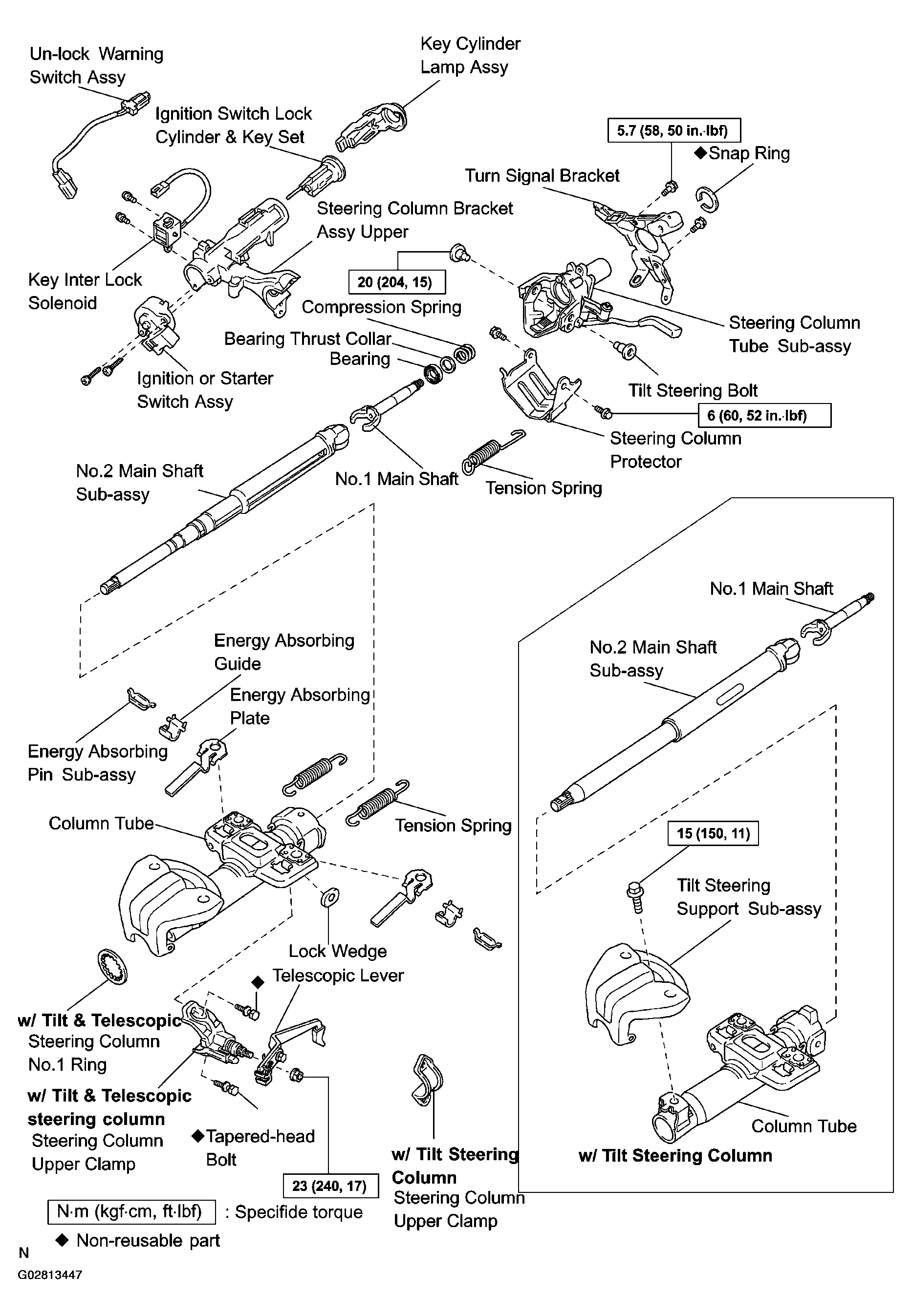

Fig 2: Locating Component Of Steering Column Assy (2 of 2)
G02813447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
