Check Continuity

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Using an ohmmeter, check continuity between the terminals.

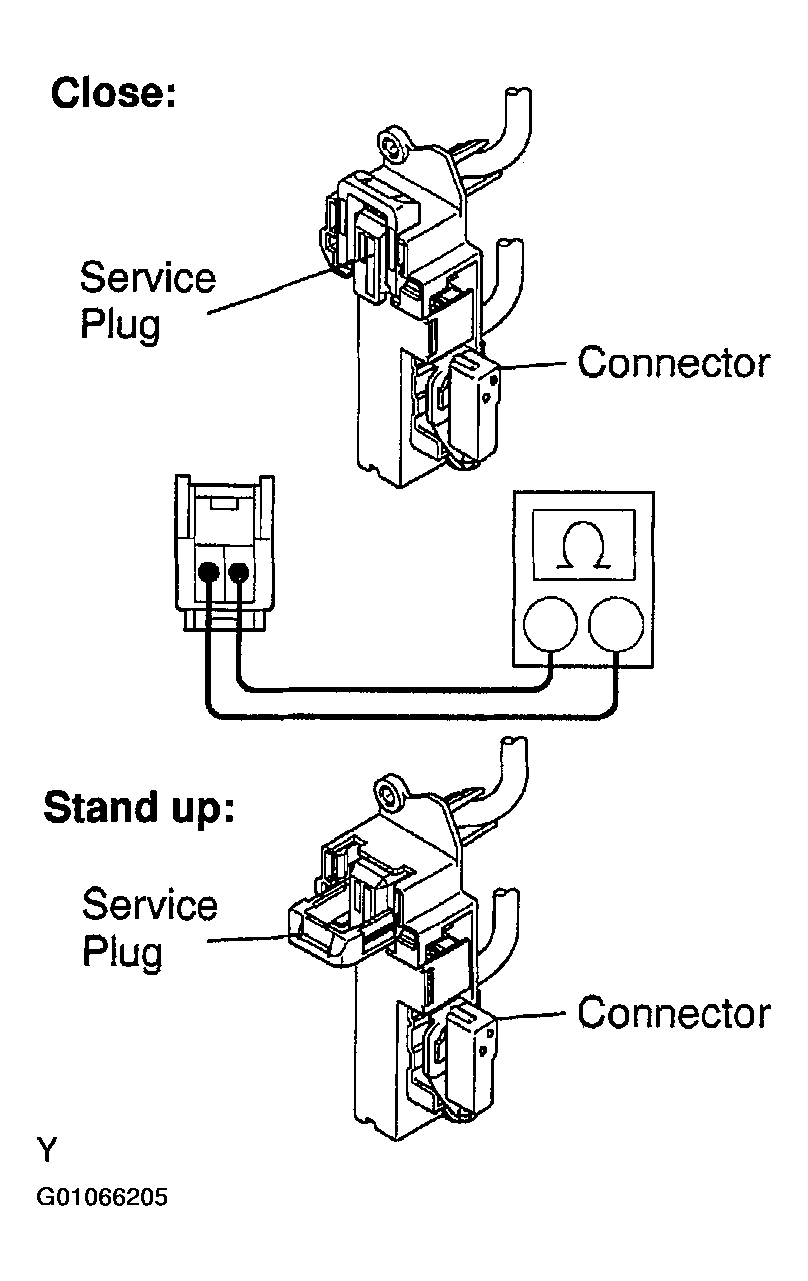

Fig 1: Testing Service Plug
G01066205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Service Plug Specifications
G01066204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
