Inspect Power Cable

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

If any damage mentioned below is identified at visual inspection, replace the power cable.

Area covered by protector:
When the protector is so damaged that the corrugated tube for the power cable inside the protector is exposed.

Fig 1: Identifying Types Of Power Cable Damage (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

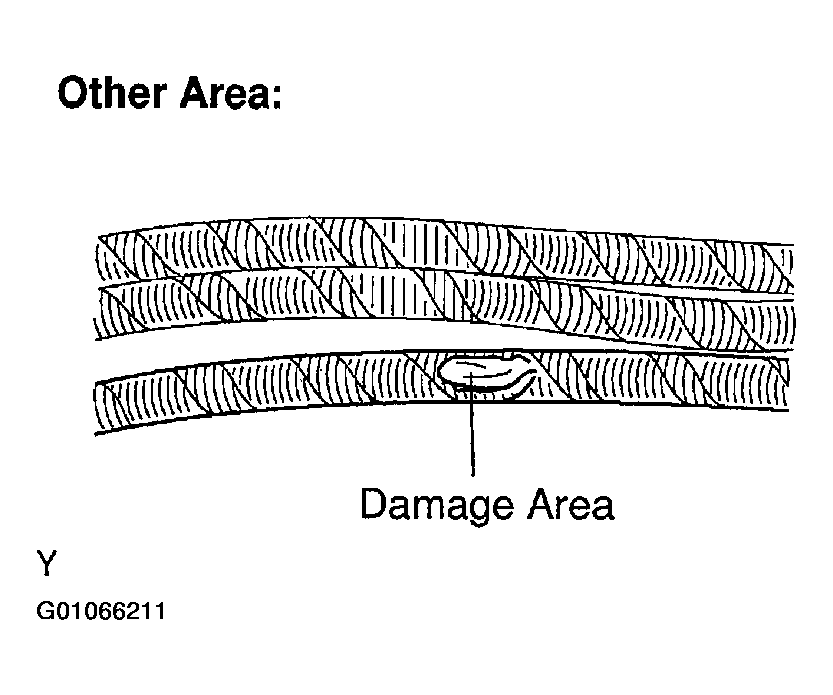

Other area:
When the corrugated tube is so damaged that the coating inside the power cable is exposed.

Fig 2: Identifying Types Of Power Cable Damage (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
