Power Cable: Components

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

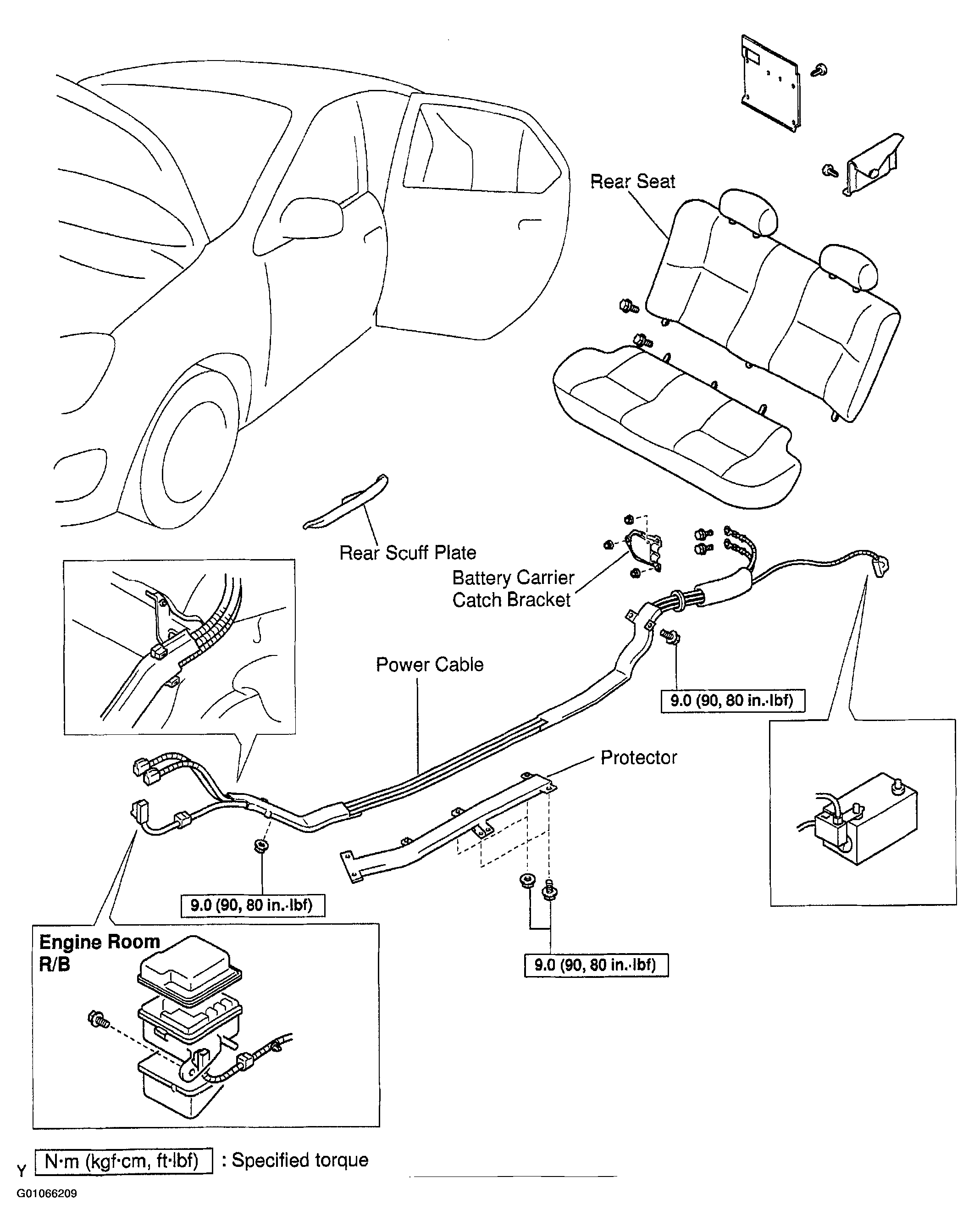

Fig 1: Identifying Power Cable Related Components
G01066209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
