HV Battery Cooling: Installation

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Install blower assembly :
1. Connect the connector for blower motor.
2. Install the blower assembly with the bolt and 2 nuts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf) .
3. install the quarter ventilation inner duct.

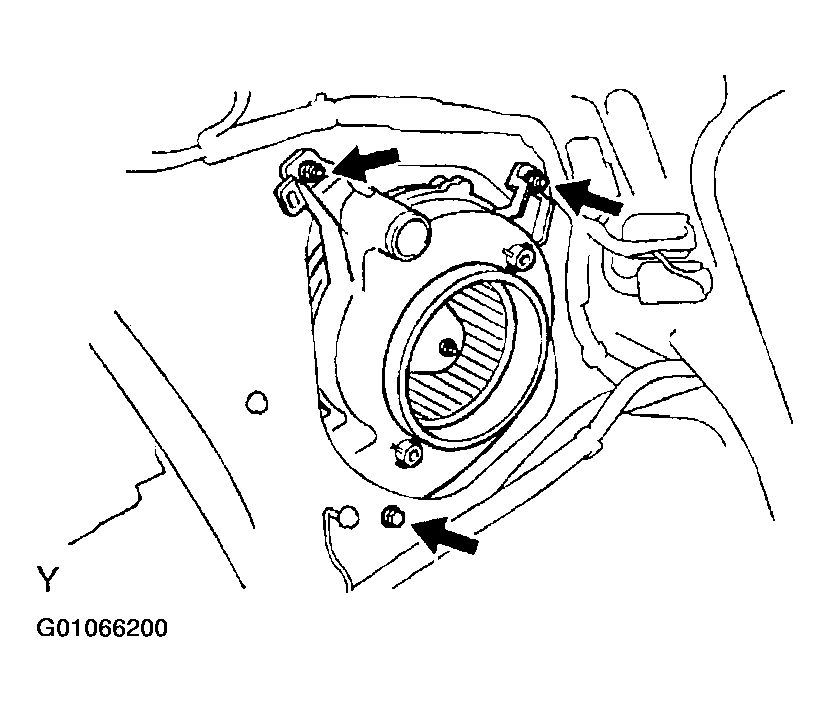

  Fig 1: Identifying Blower Assembly Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install quarter inner No. 2 duct .
Install the quarter inner No. 2 duct with the 2 screws.

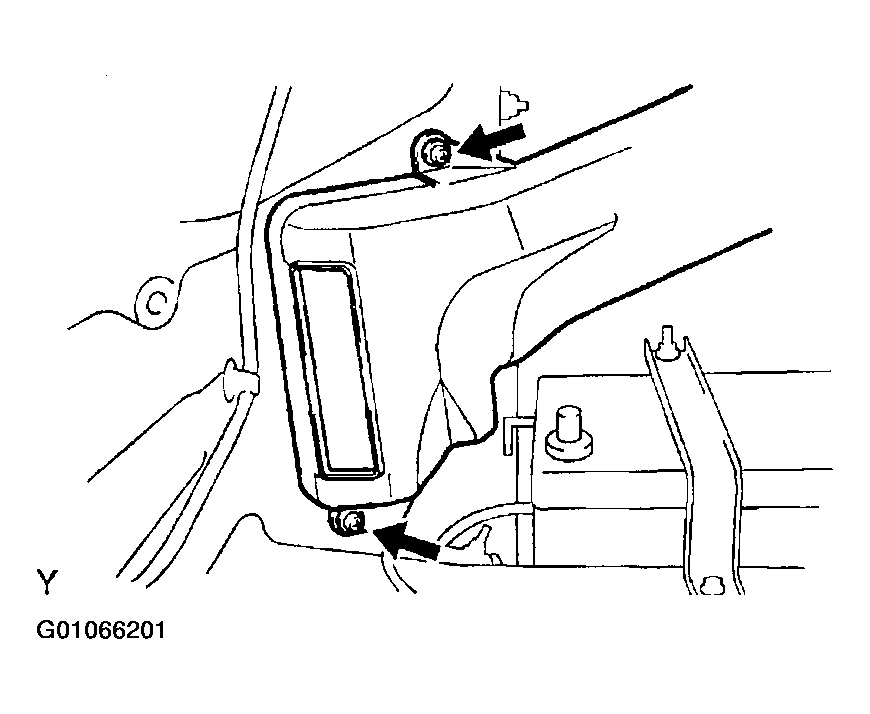

Fig 2: Identifying Quarter Inner No. 2 Duct Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install quarter ventilator duct .
1. Install the quarter ventilator duct with the 6 screws.
2. Connect the connector for blower motor control.

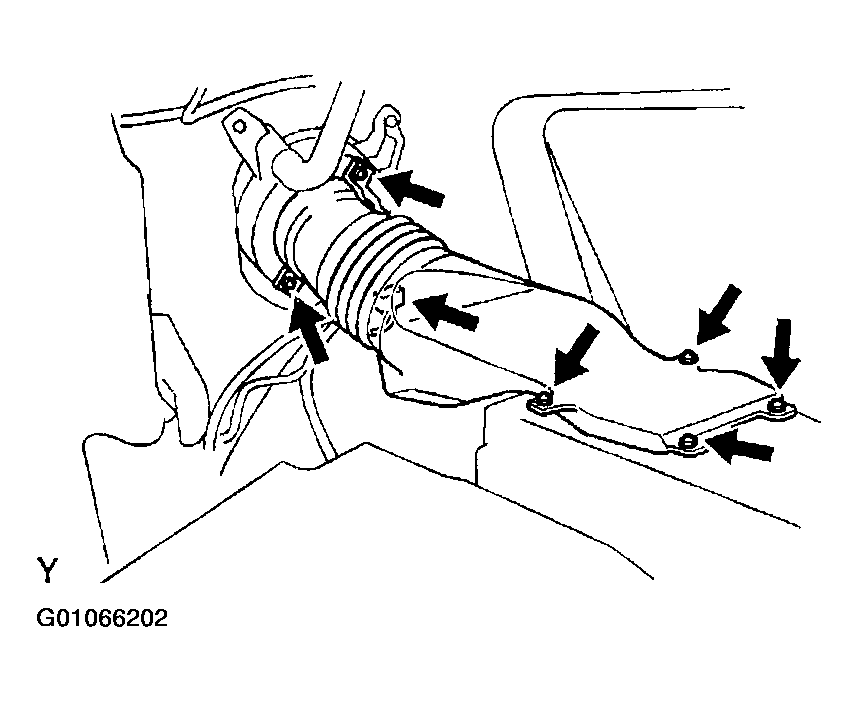

  Fig 3: Identifying Quarter Ventilator Duct Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install lower quarter ventilator .
Install the lower quarter ventilator duct with the 2 bolts.

Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf) .
Install inner ventilator duct .
Install the inner ventilator duct with the 4 bolts.

Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf) .
Install LUGGAGE TRIM .
Install . REAR SEAT .

Fig 4: Identifying Lower Quarter & Inner Ventilator Duct Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
