Checking Fluid Level

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Keep the vehicle level.

NOTE: Check that the fluid level is within the HOT LEVEL range on the reservoir/reservoir cap dipstick.
If the fluid is cold, check that it is within the COLD LEVEL range.

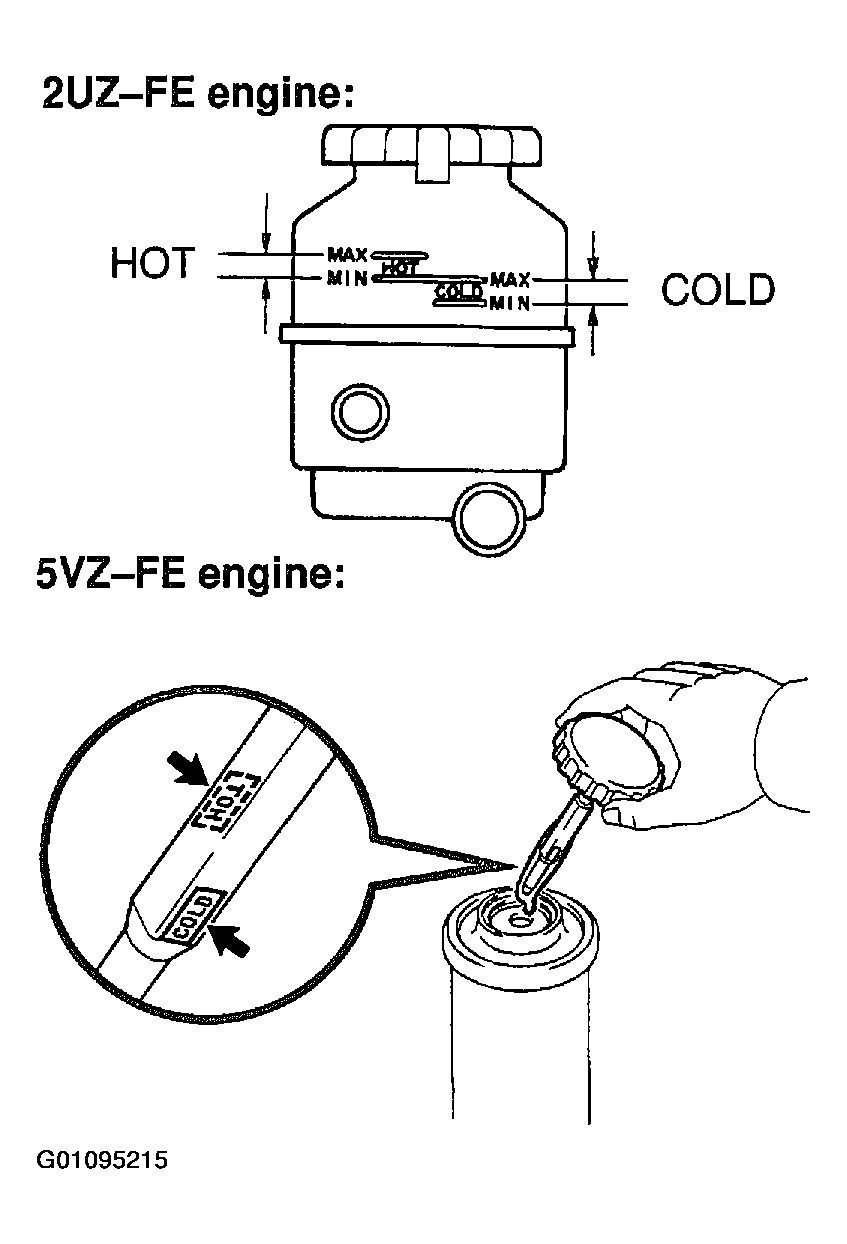

Fig 1: Identifying Power Steering Fluid Level Marks

With the engine stopped, check the fluid level in the oil reservoir.
If necessary, add fluid. ATF DEXRON™ II or III .
Start the engine and run it at idle.
Turn the steering wheel from lock to lock several times to boost fluid temperature.
Fluid temperature: 80°C (176°F)
Check for foaming or emulsification. If there is foaming or emulsification, bleed power steering system. See BLEEDING POWER STEERING FLUID .

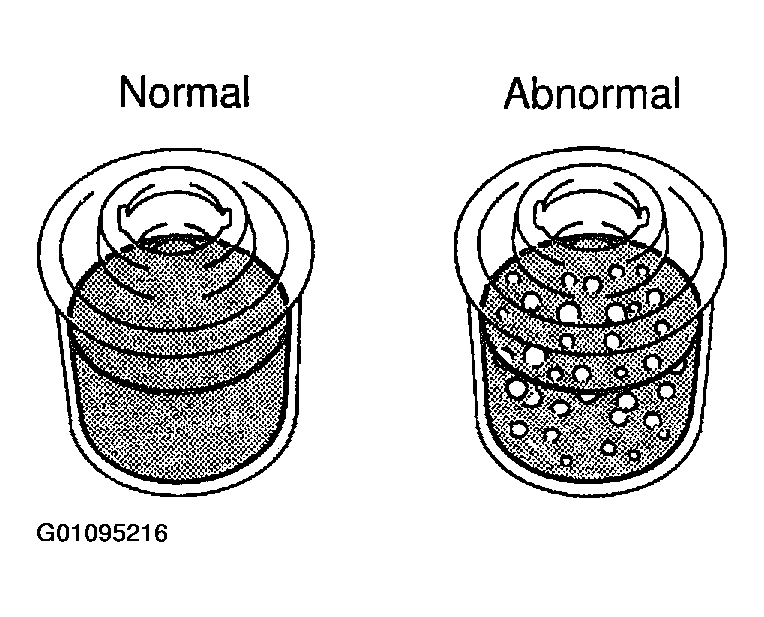

Fig 2: Inspecting Power Steering Fluid For Air Bubbles
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
With the engine idling, measure the fluid level in the oil reservoir.
Stop the engine.
Wait a few minutes and remeasure the fluid level in the oil reservoir.

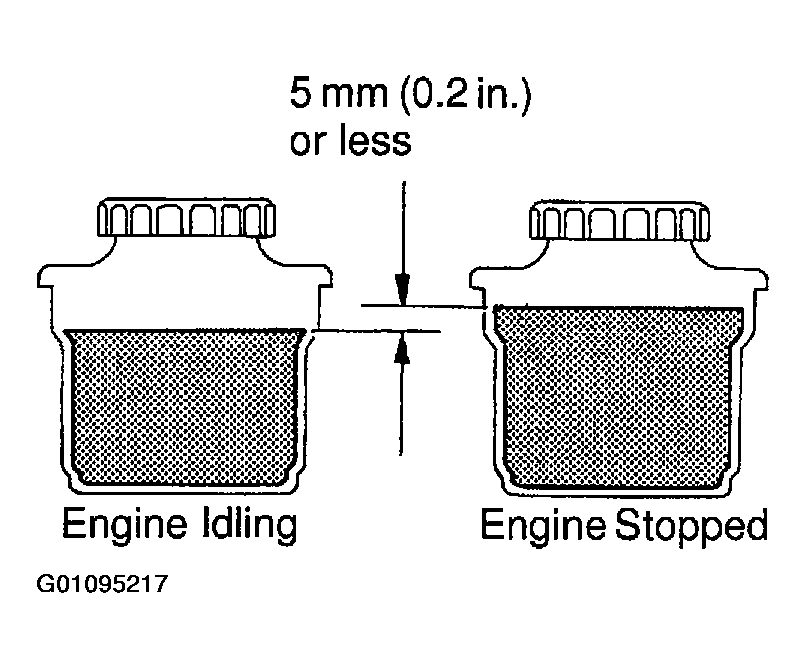

Fig 3: Identifying Power Steering Fluid Reservoir Fluid Level Marks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum fluid level rise: 5 mm (0.20 in.)
If a problem is found, bleed power steering system. See BLEEDING POWER STEERING FLUID .
Recheck the fluid level.
