Special Tools

WARNING: This page is about a different car, the 2004 Toyota 4Runner and 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

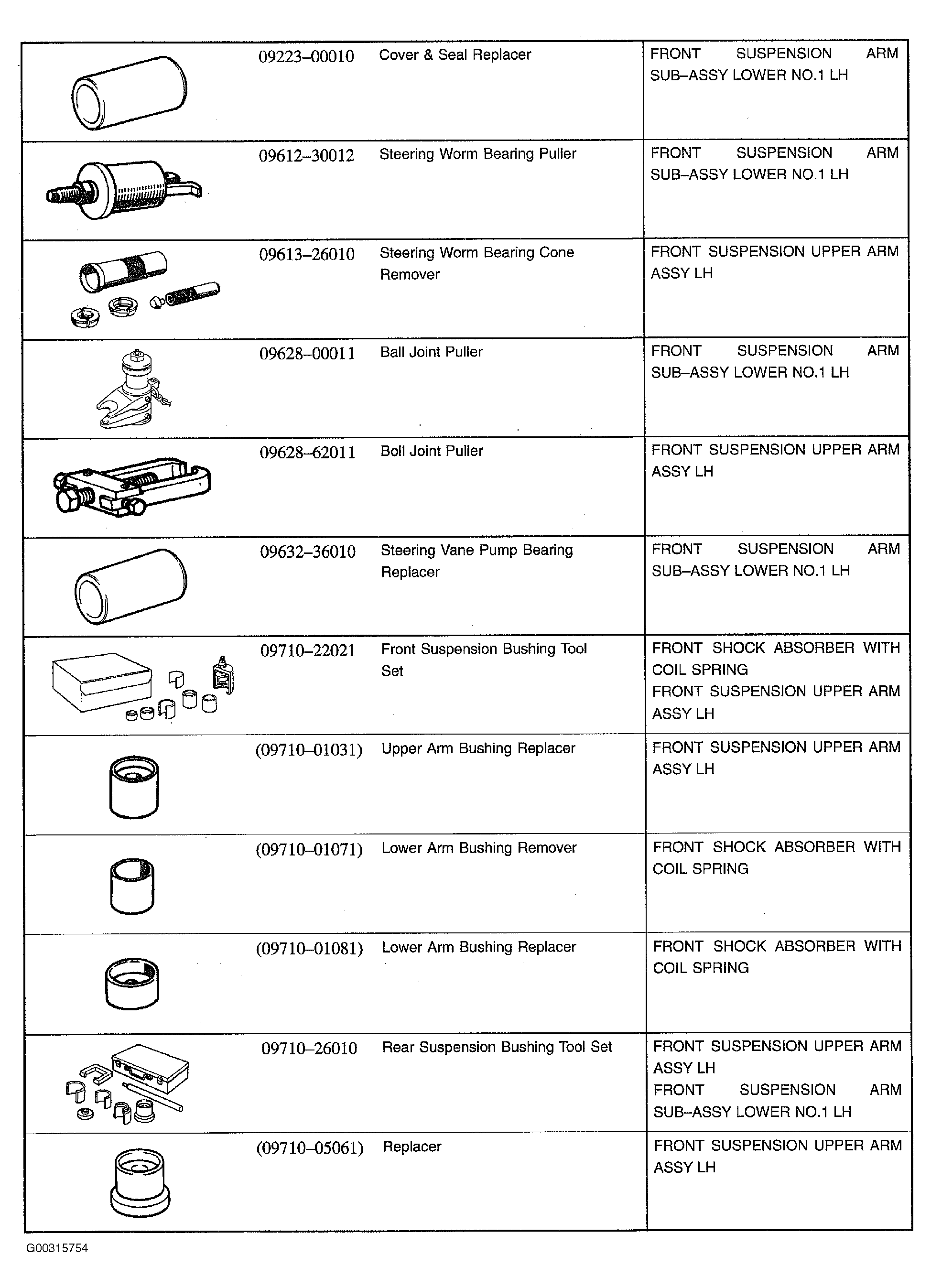

Fig 1: Special Service Tools (1 Of 2)
G00315754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

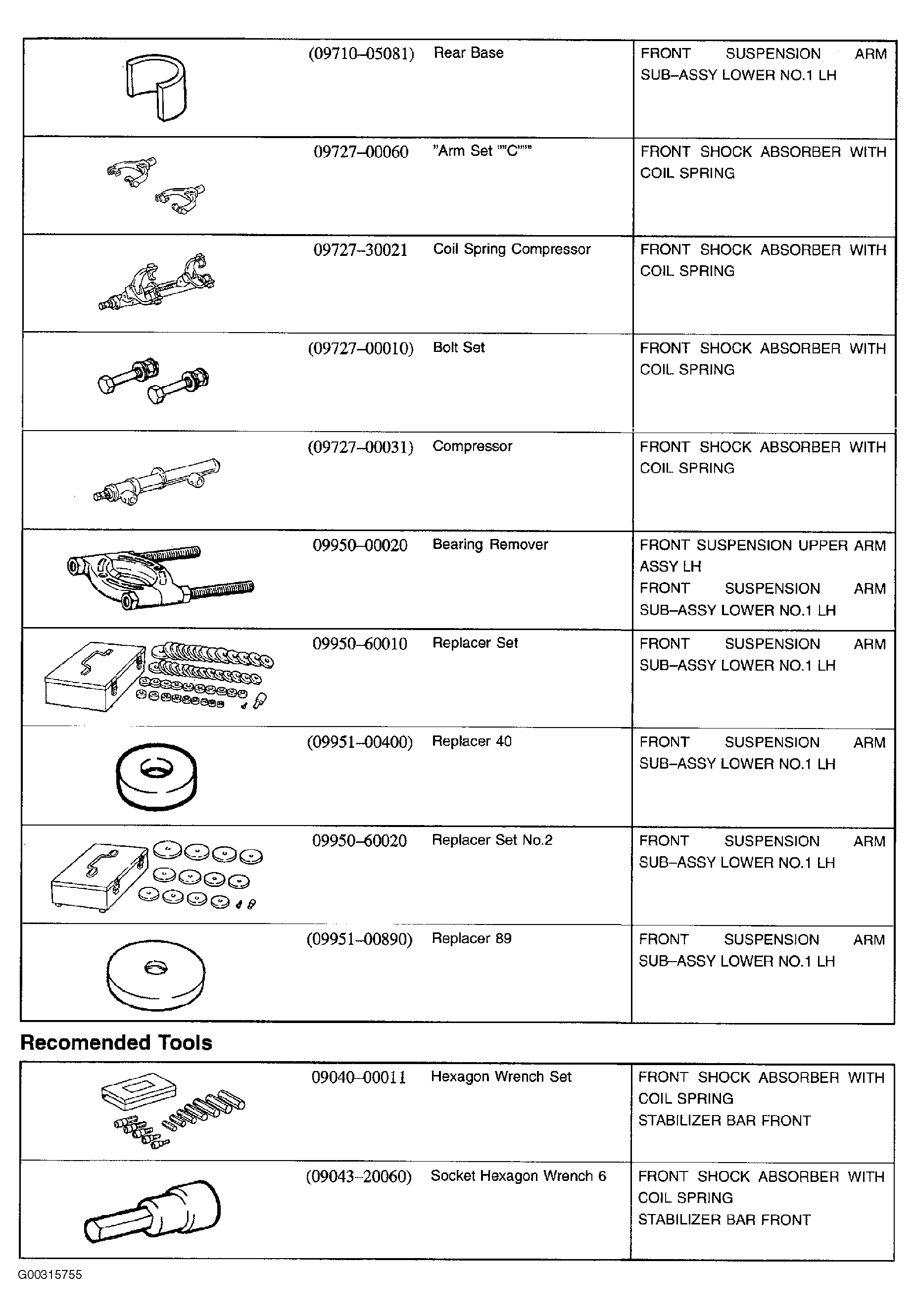

Fig 2: Special Service Tools (2 Of 2)
G00315755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
