Upper Control Arm: Notes

WARNING: This page is about a different car, the 2004 Toyota 4Runner and 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

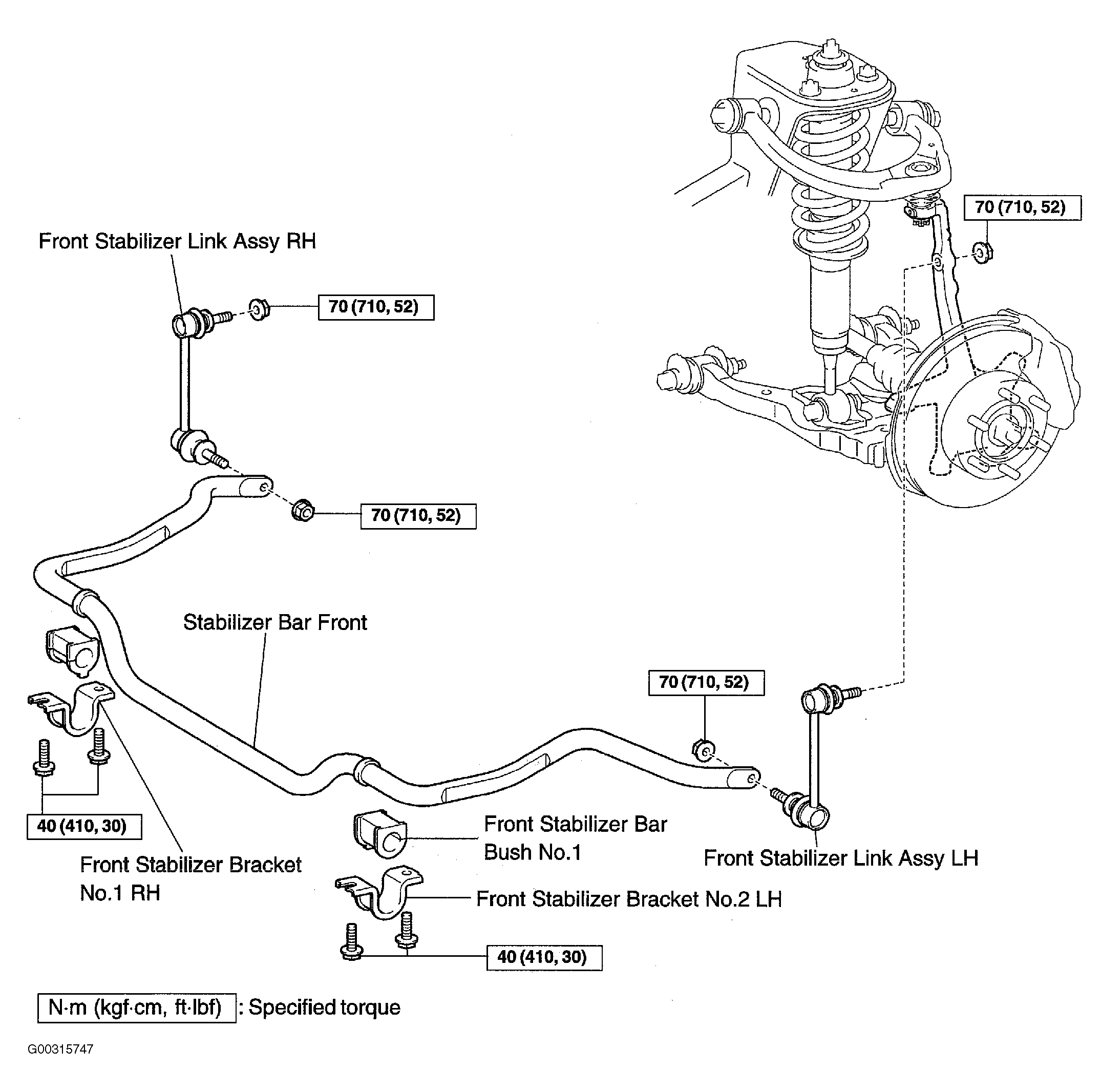

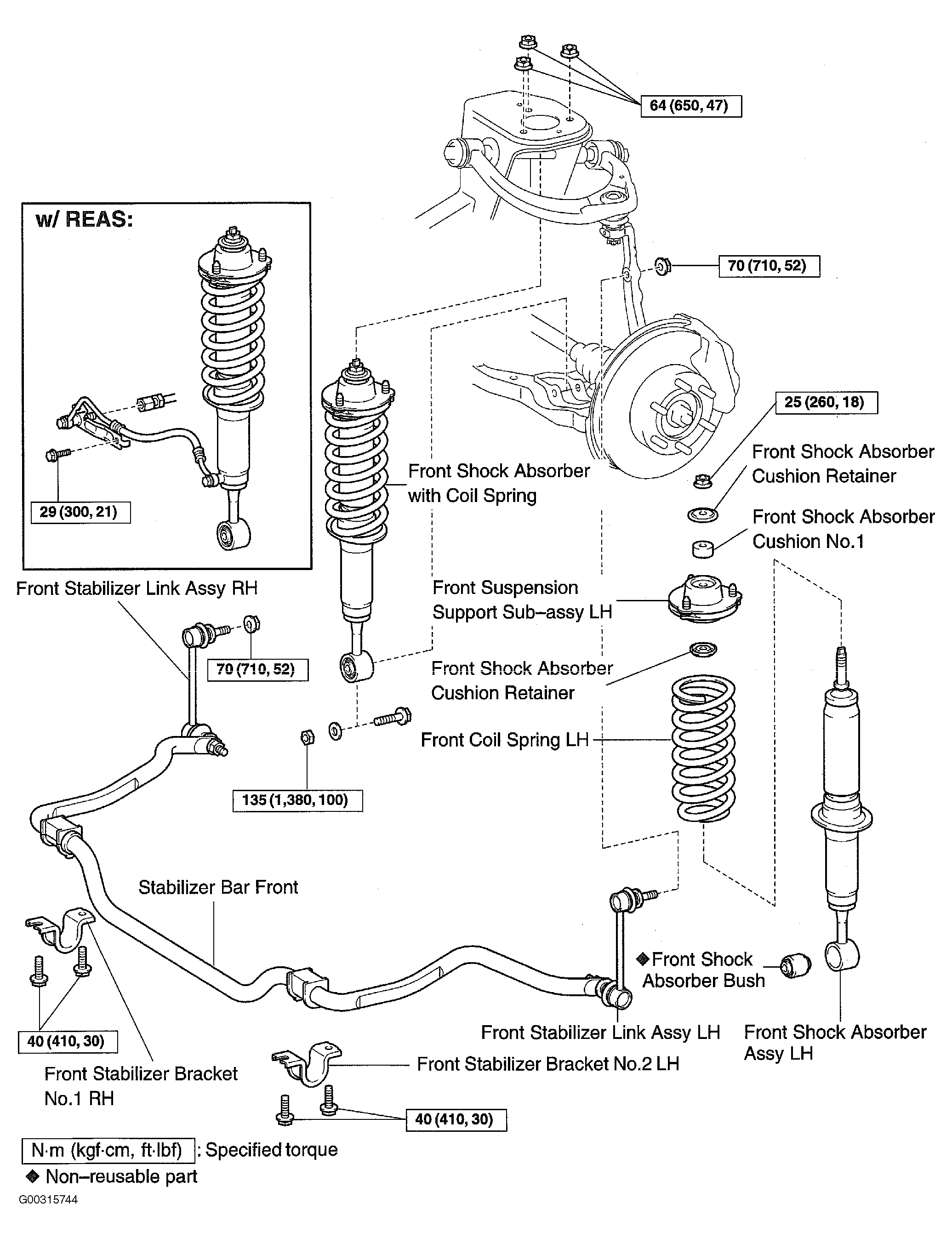

NOTE: For component view, see Figure-Figure .
