Removal & Installation

WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedure, see Fig 1.

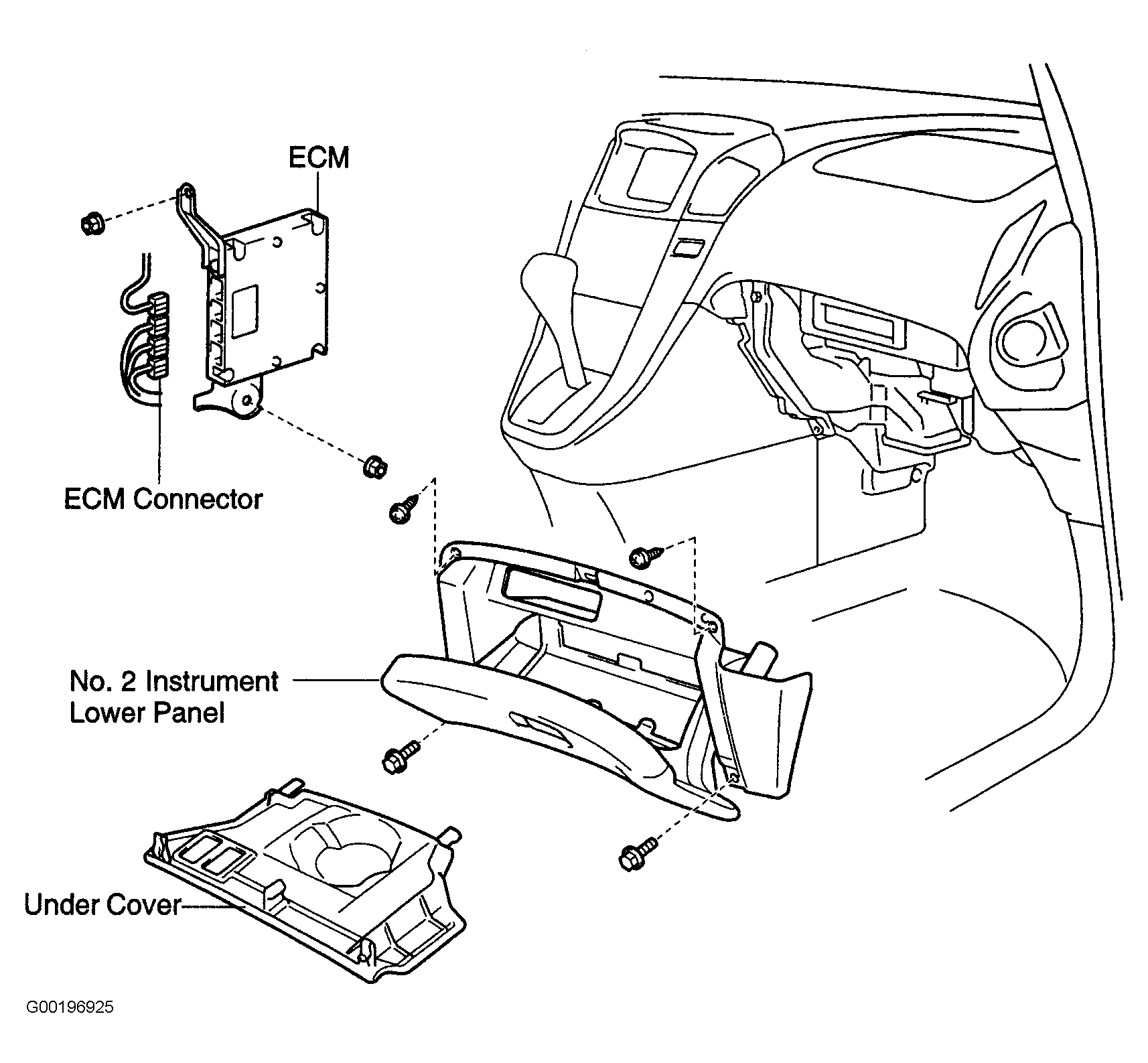

Fig 1: Removing & Installing ECM
G00196925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
