Home >> Lexus >> 2003 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heater System >> Location

Seat Heater System: Location

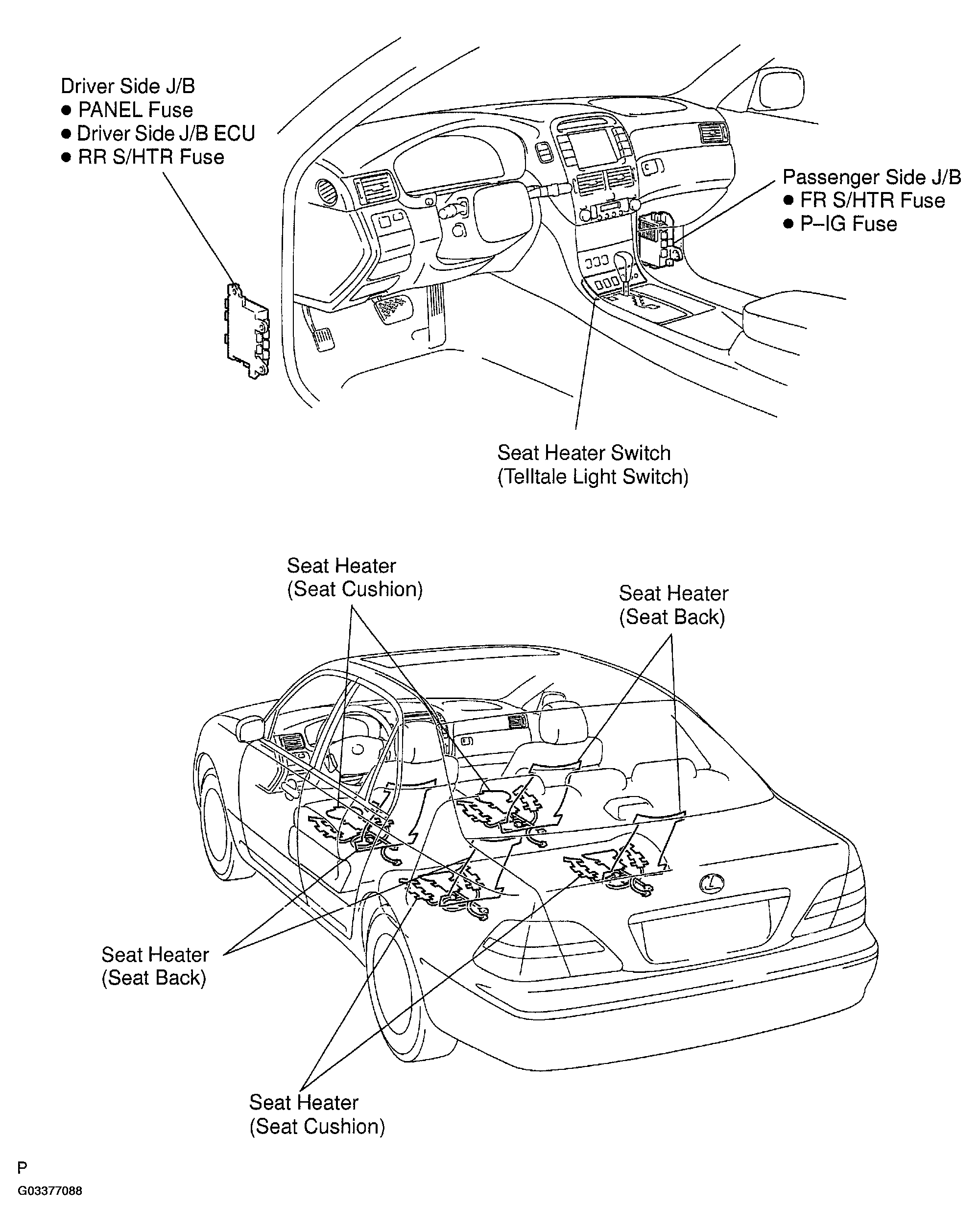

Fig 1: Identifying Component Location Seat Heater System

G03377088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
