Rear Bumper: Components

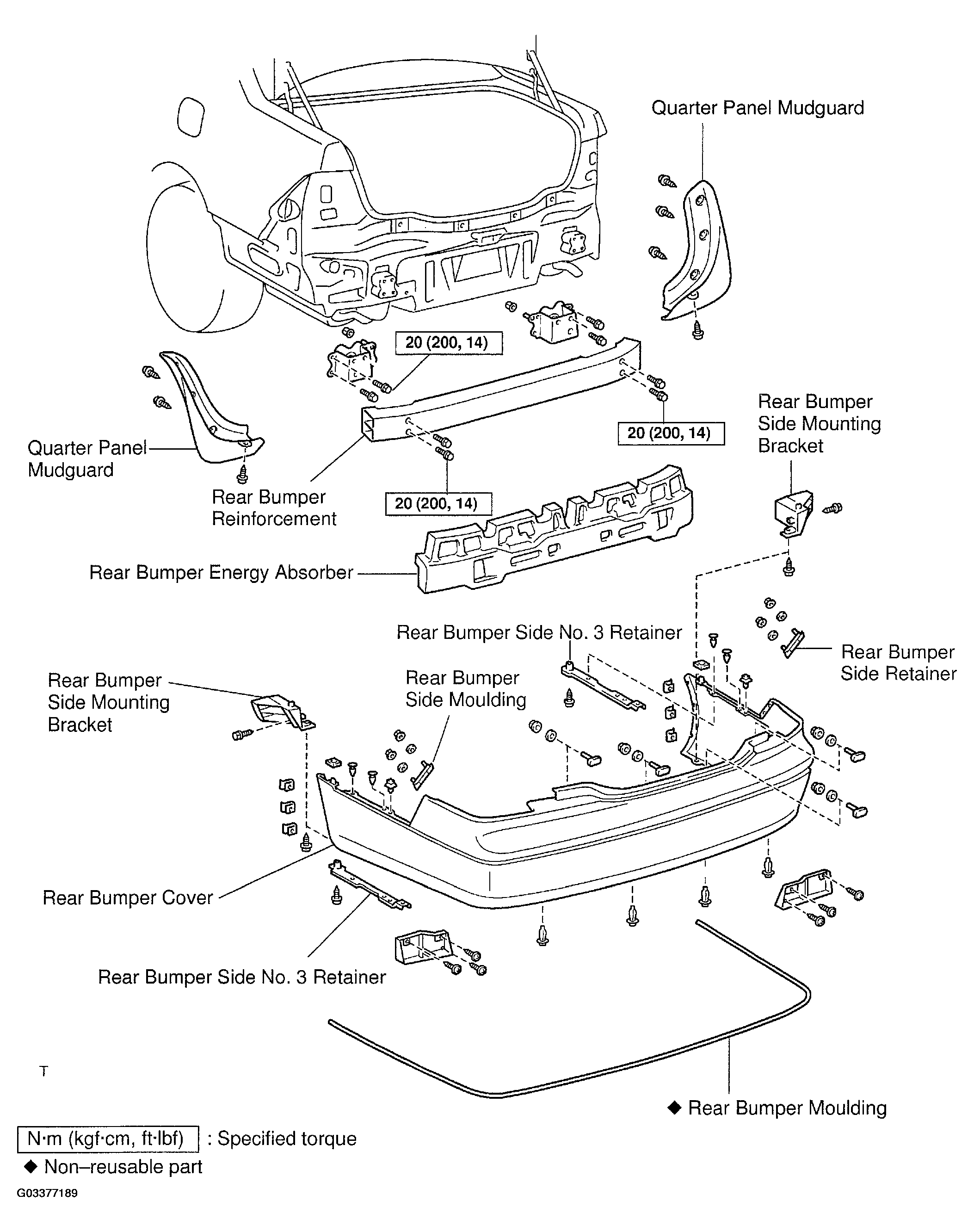

Fig 1: Identifying Rear Bumper Components
G03377189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

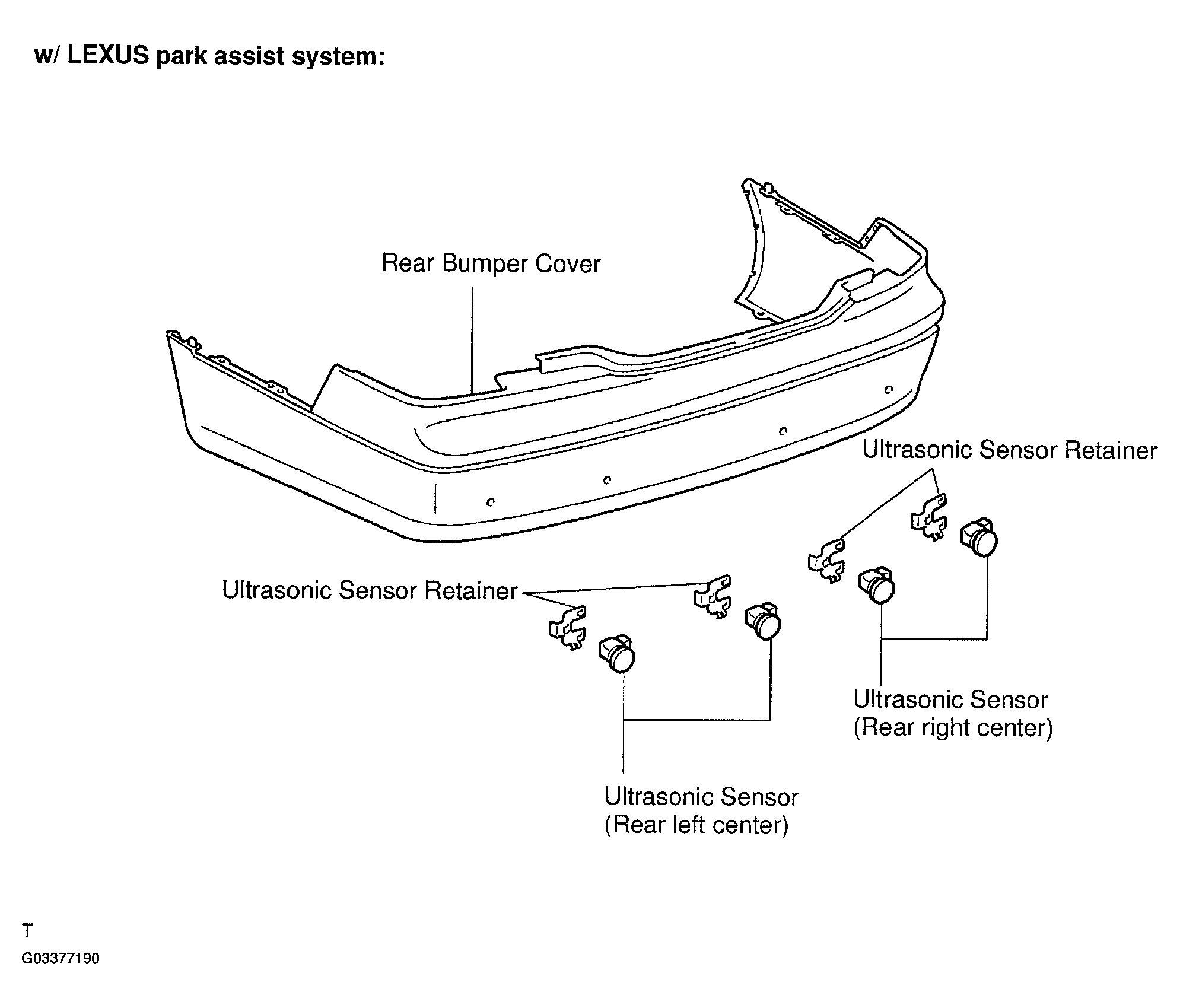

Fig 2: Identifying Rear Bumper Components (W/LEXUS Park Assist System)
G03377190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
