Fuel Lid Opener System: Location

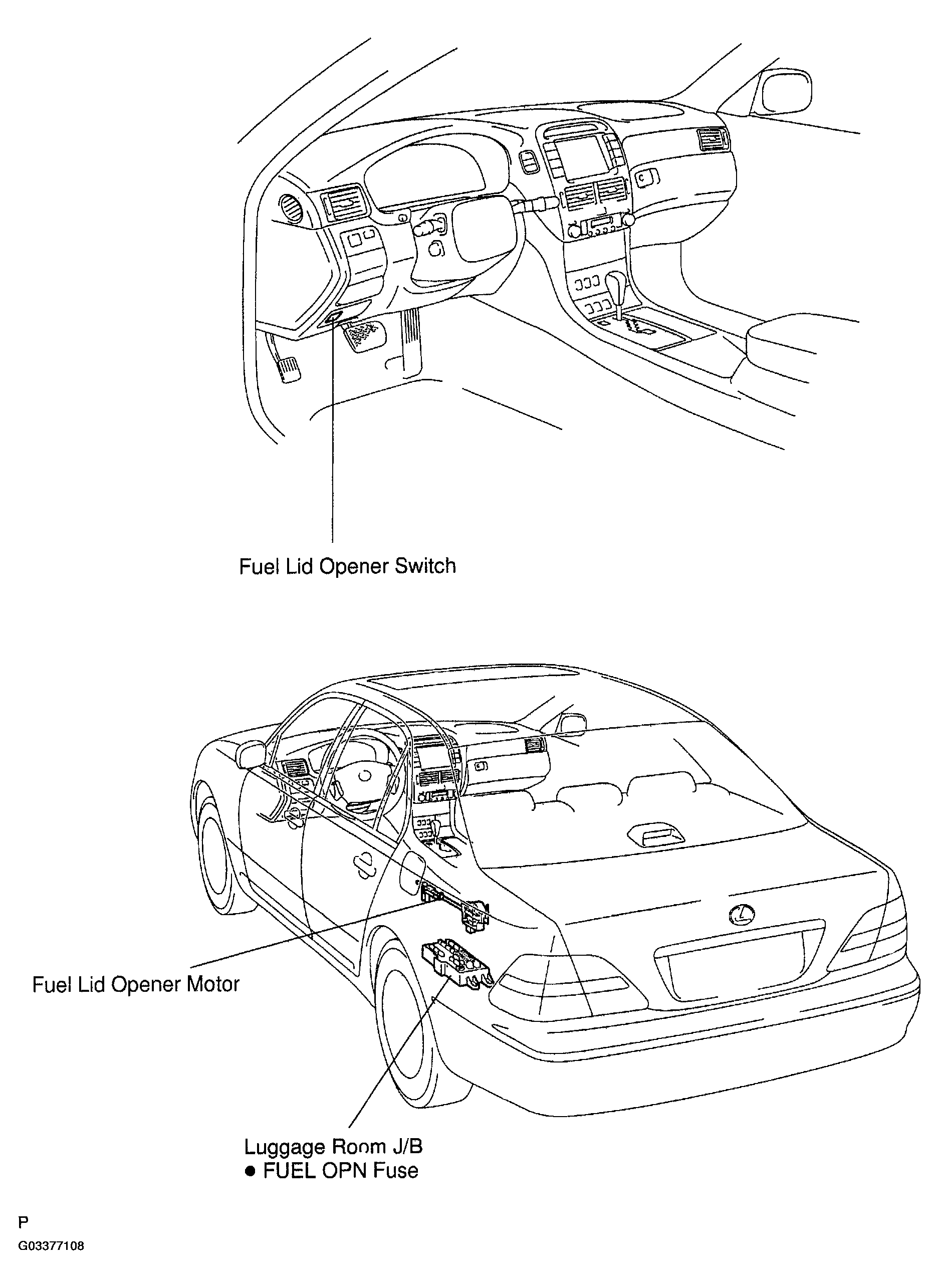

Fig 1: Locating Fuel Lid Opener System Components

G03377108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
