Home >> Lexus >> 2003 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Closer System >> Location

Door Closer System: Location

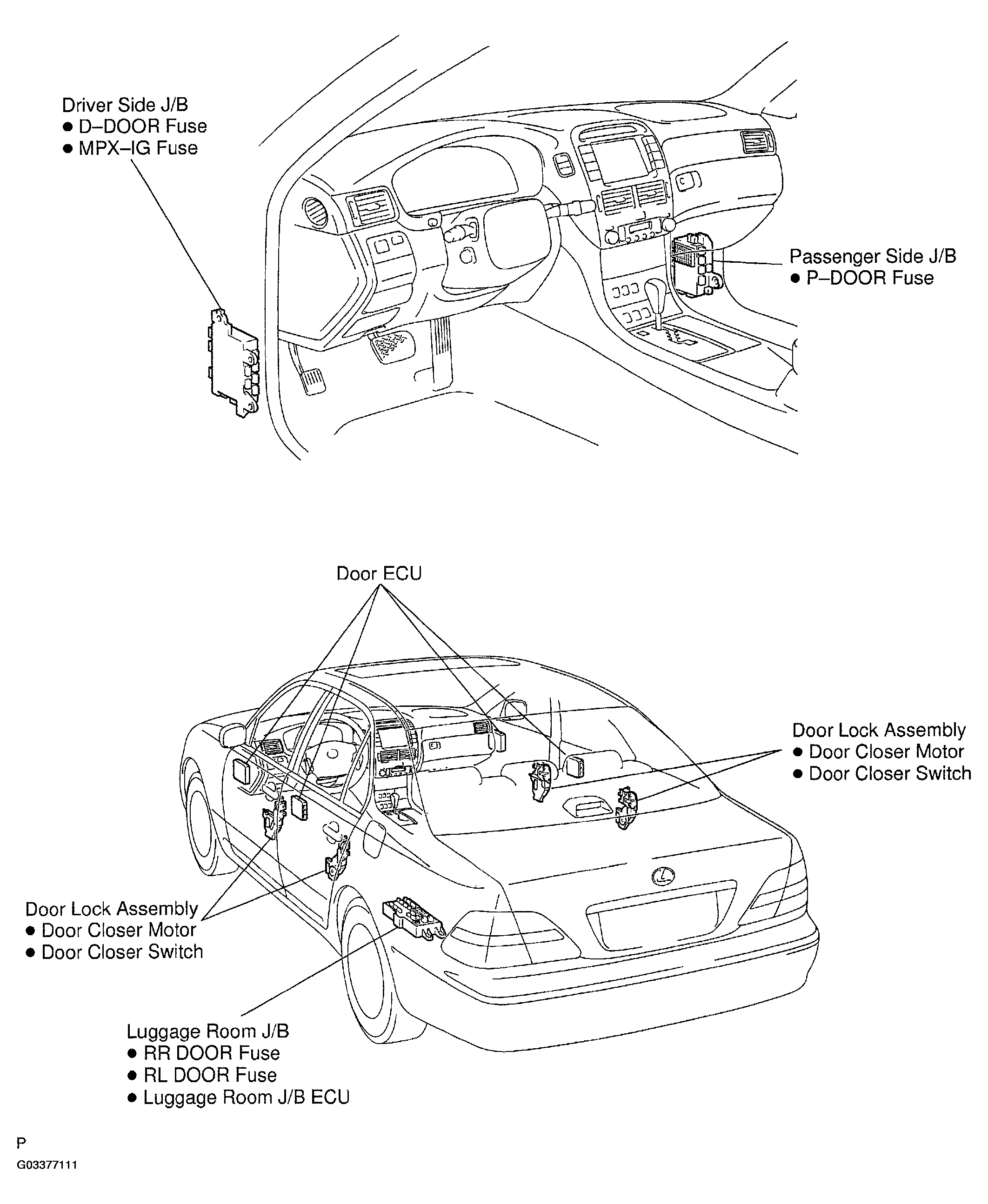

Fig 1: Locating Door Closer System Components

G03377111

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
