Circuit Inspection

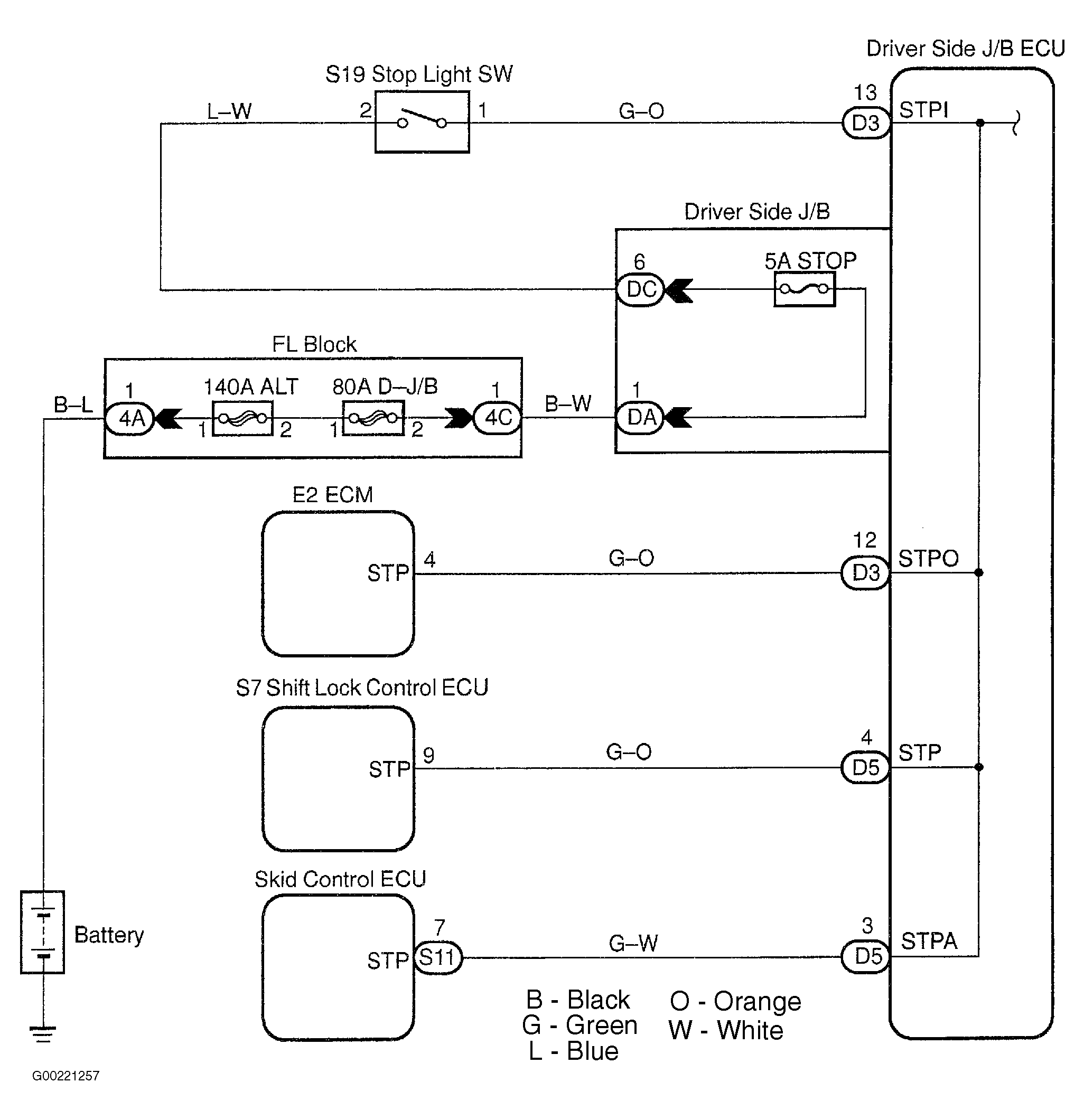

This circuit detects the conditions of the stop light switch. See Fig 1.

Fig 1: Identifying Stop Light Switch Circuit

G00221257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
