Circuit Description

The passenger side junction block (body No. 3) ECU sends A/T (automatic transmission) reverse position signal to the navigation ECU. For circuit diagram, see Fig 1.

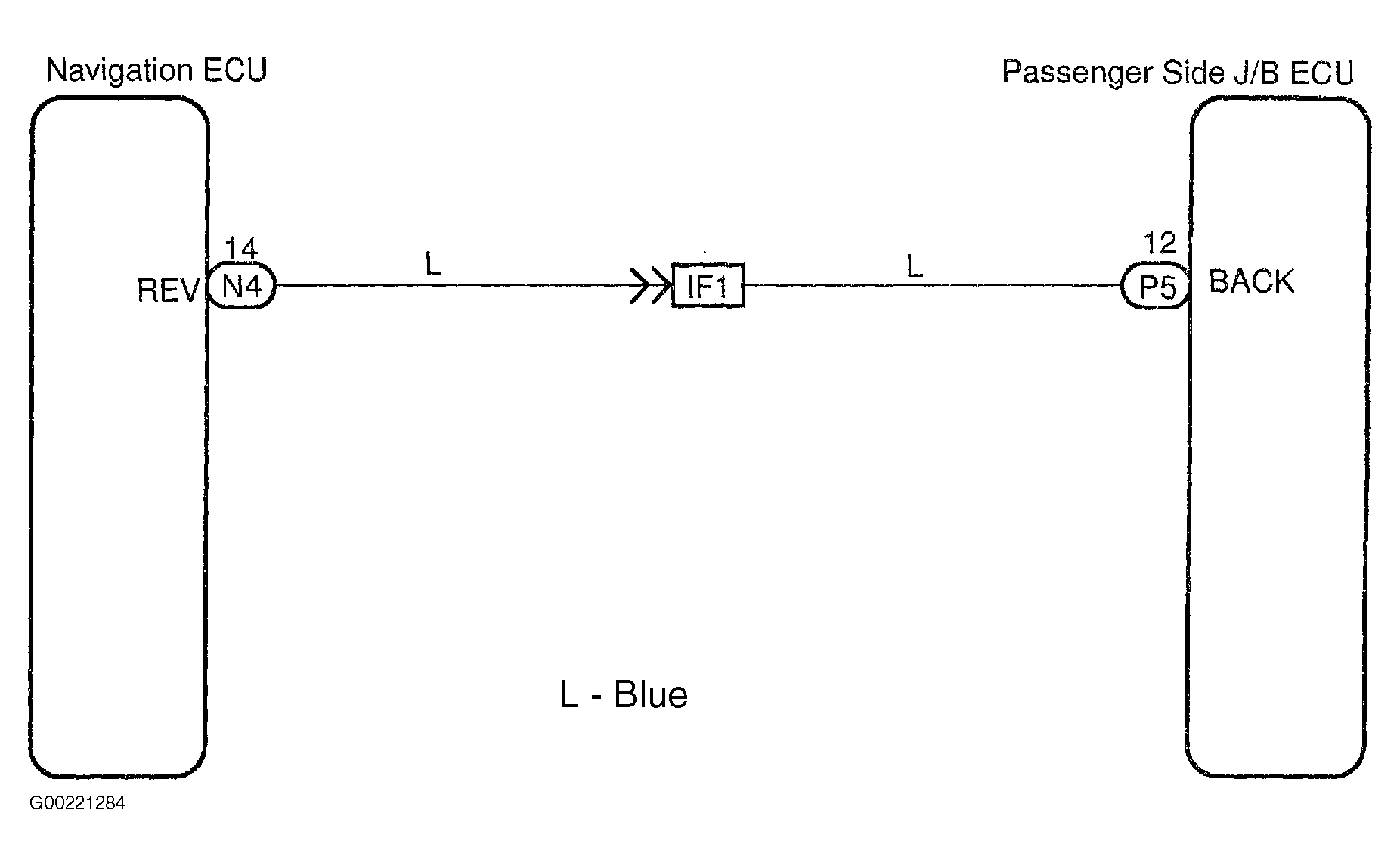

Fig 1: Identifying Navigation ECU Communication Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
