Circuit Description

This circuit detects the conditions of the headlight cleaner switch. For circuit diagram, see Fig 1.

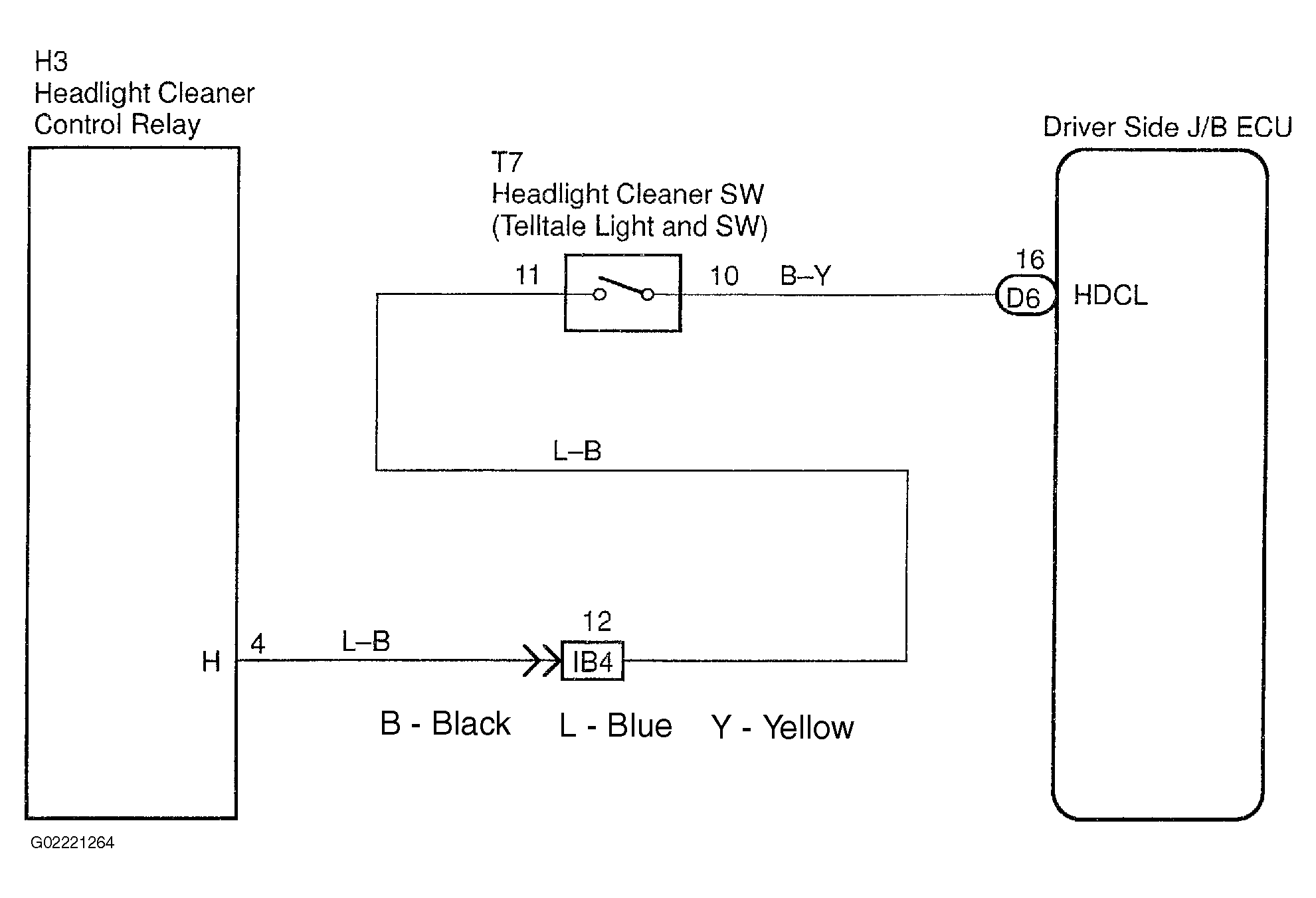

Fig 1: Identifying Headlight Cleaner Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
