Circuit Description

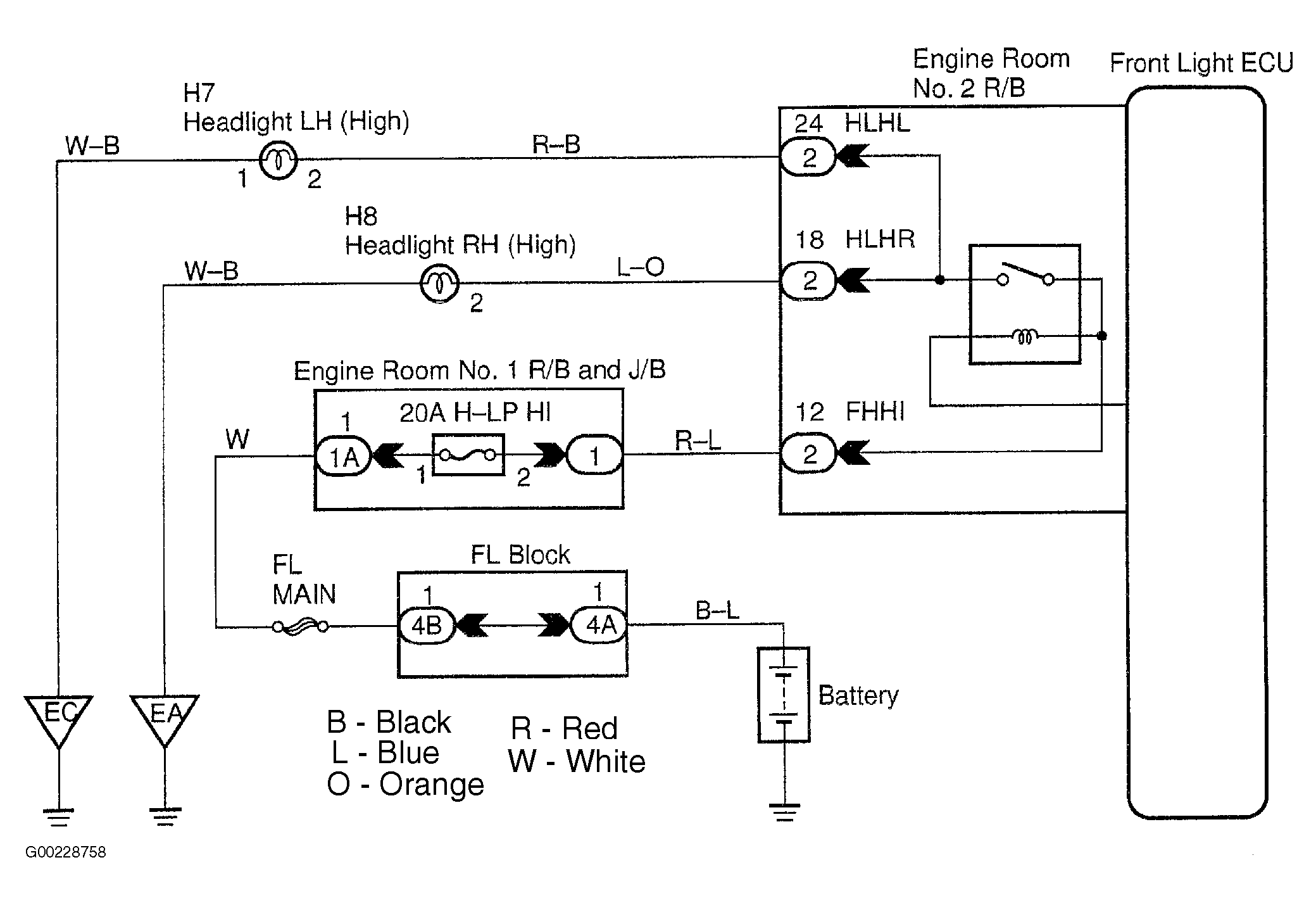

The front light (body No. 5) ECU receives headlight HI switch information from the combination switch and lights the headlight. For circuit diagram, see Fig 1.
The front light (body No. 5) ECU receives headlight HI switch information from the combination switch and lights the headlight. For circuit diagram, see Fig 1.
