Circuit Description

The front light (body No. 5) ECU receives the fog light switch information from the combination switch and lights the fog light. For circuit diagram, see Fig 1.

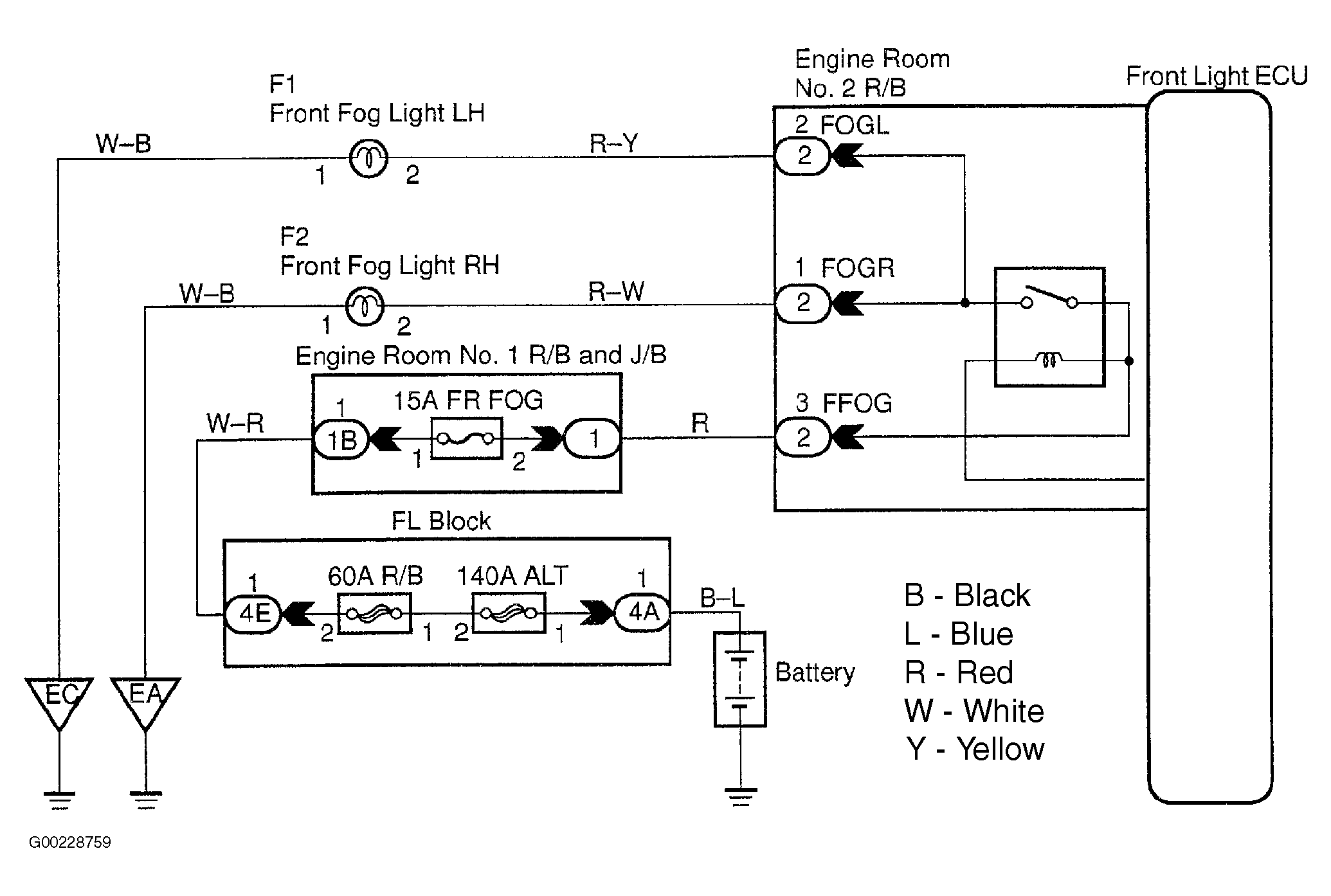

Fig 1: Identifying Front Fog Light Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
