Circuit Description

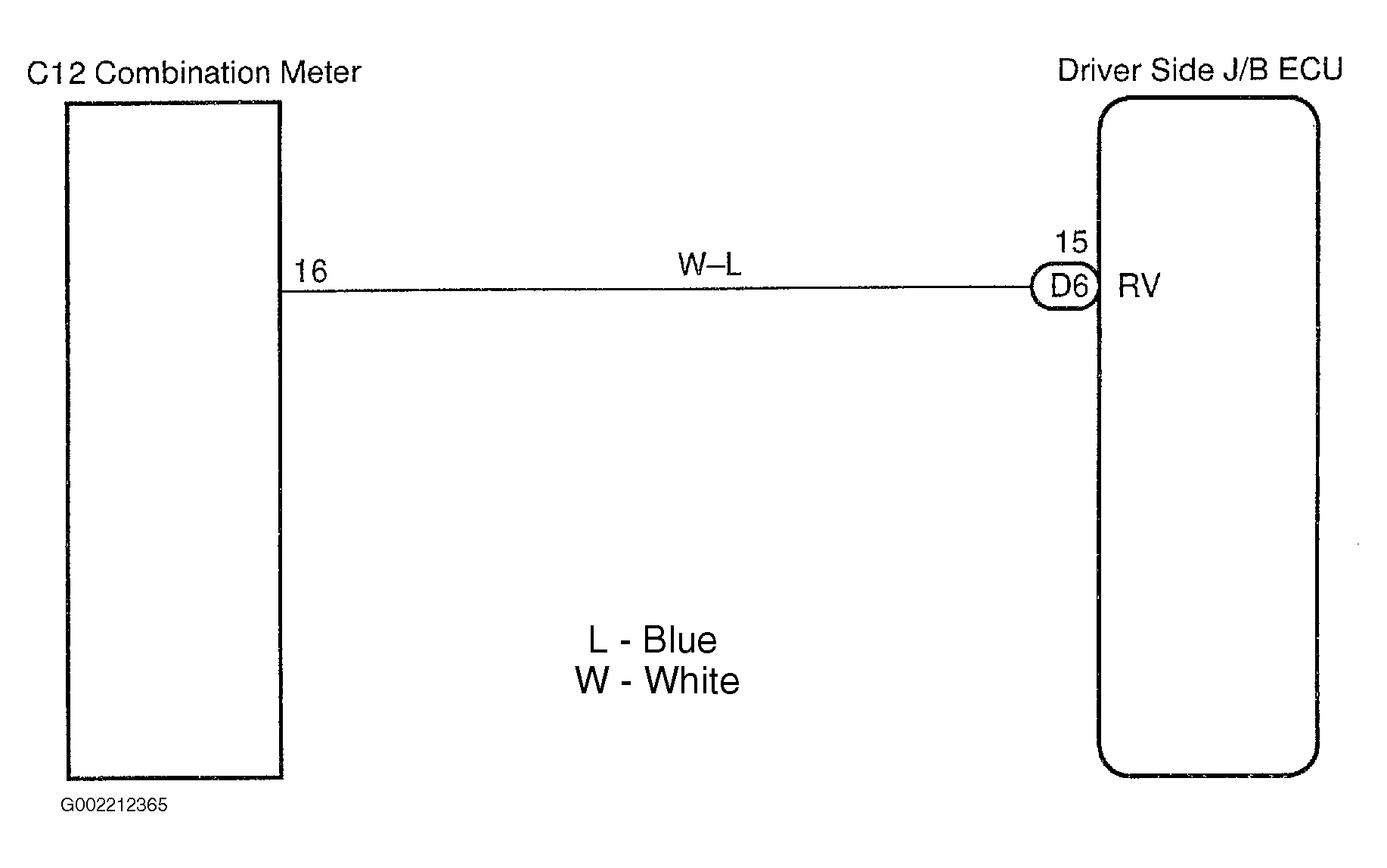

The driver side junction block (body No. 2) ECU receives the signals of the light control sensor and the rheostat light control volume to conduct the illumination control of the meter illumination. For circuit diagram, see Fig 1.
The driver side junction block (body No. 2) ECU receives the signals of the light control sensor and the rheostat light control volume to conduct the illumination control of the meter illumination. For circuit diagram, see Fig 1.
