Circuit Description

Receiving the PNP switch R position signal from the luggage room junction block (body No. 4) ECU makes the back-up light come on. For circuit diagram, see Fig 1.

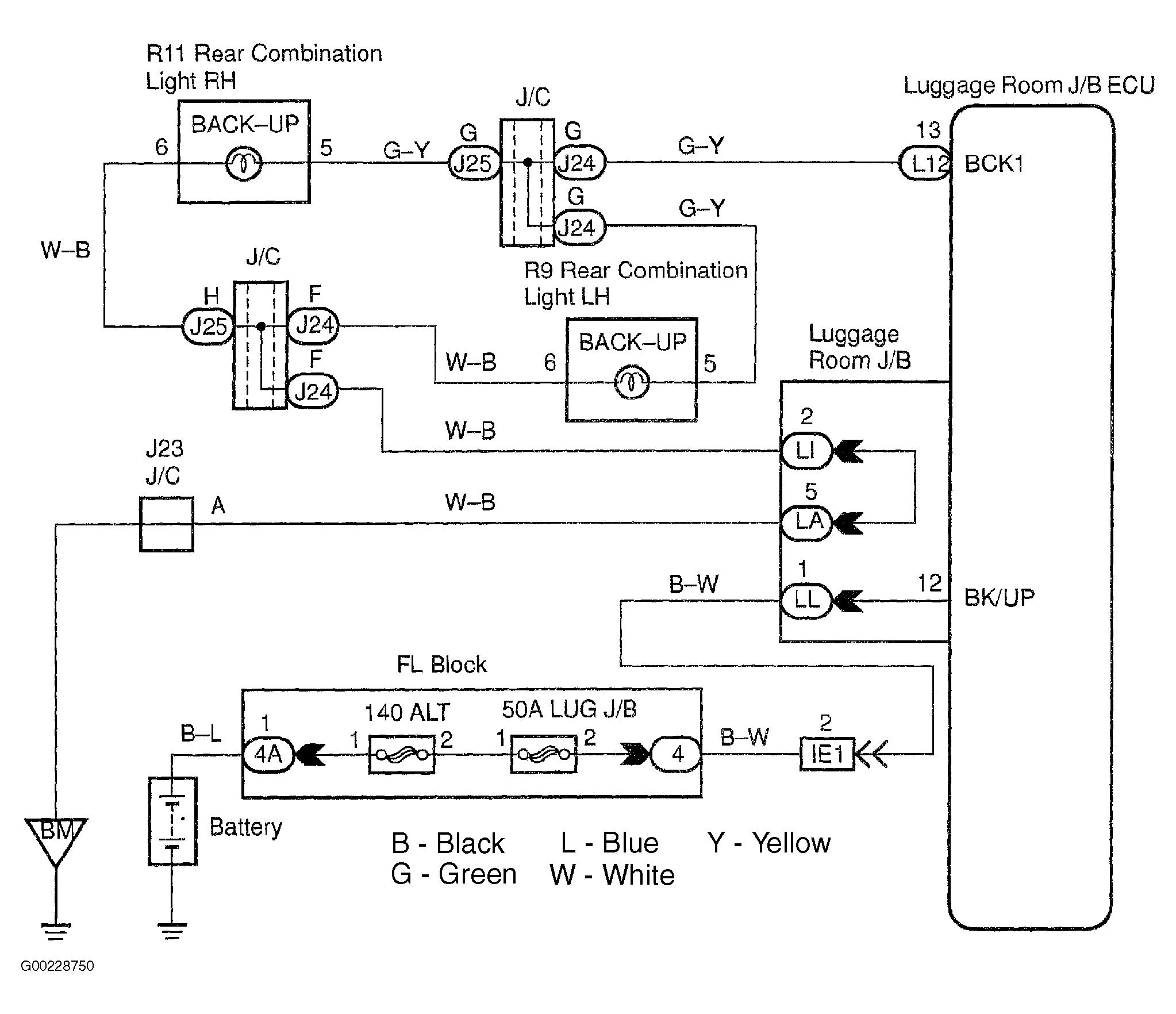

Fig 1: Identifying Back-Up Light Circuit
G00228750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
