Remove Multi Display

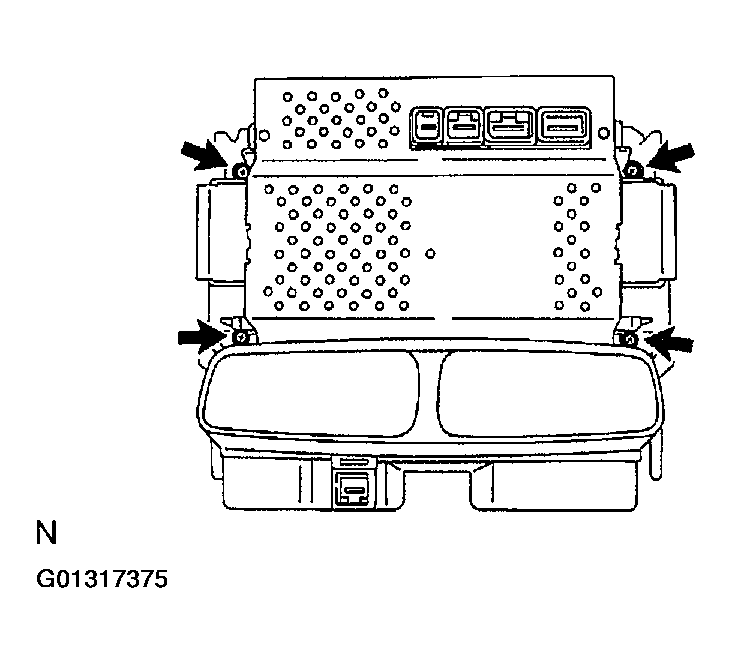

  1. Remove the 4 screws and multi display.
    Fig 1: Removing Multi Display
    G01317375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

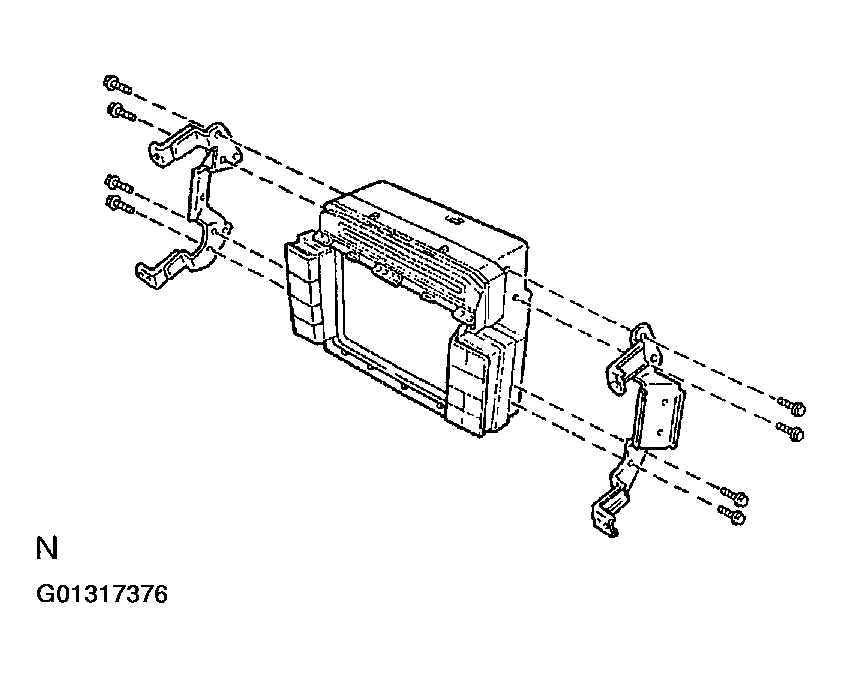

  2. Remove the 8 bolts and 2 brackets.
    Fig 2: Removing 8 Bolts & 2 Brackets
    G01317376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
