Special Tools

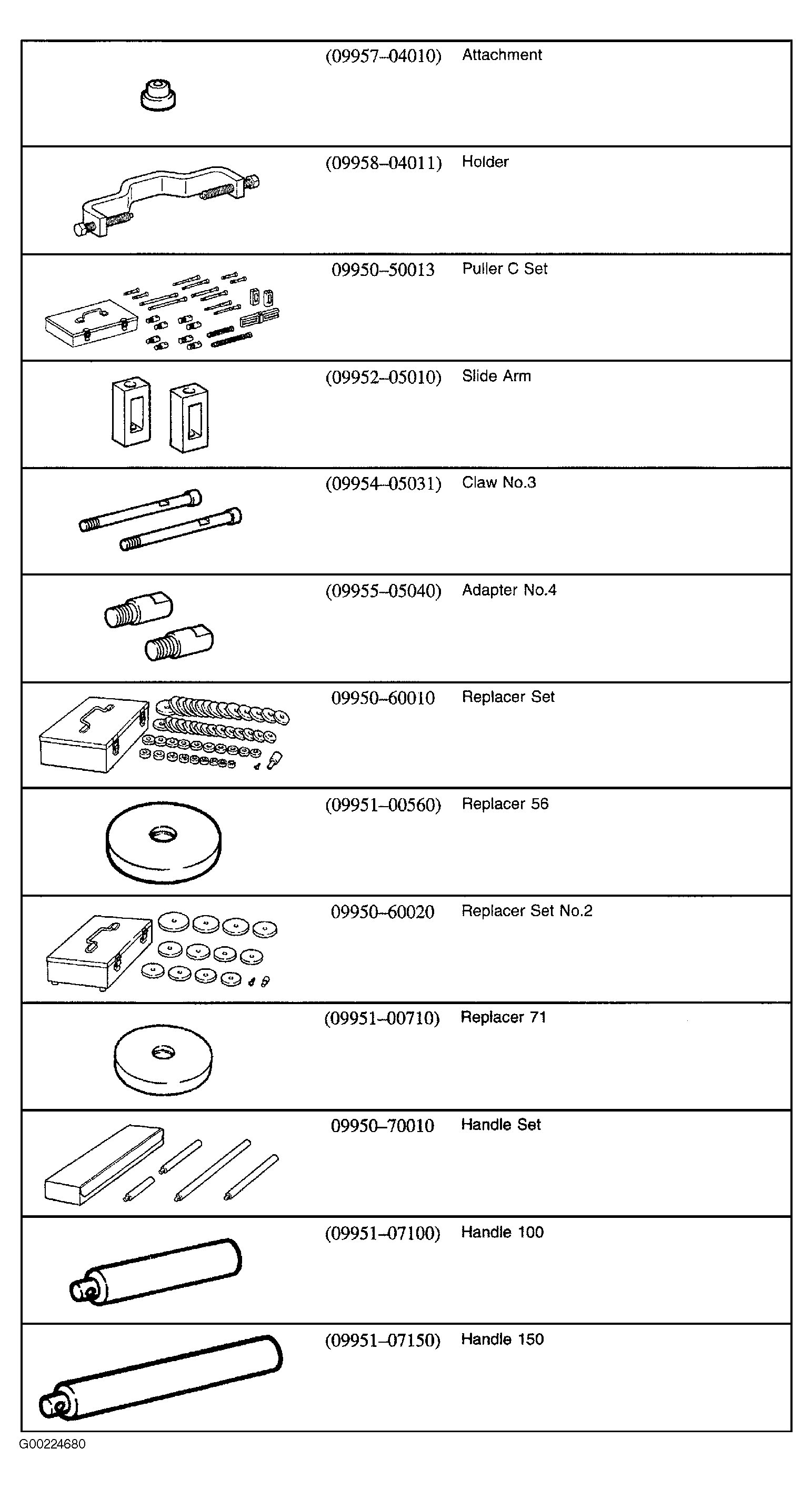

Fig 1: Identifying Special Tools (1 Of 3)
G00224680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

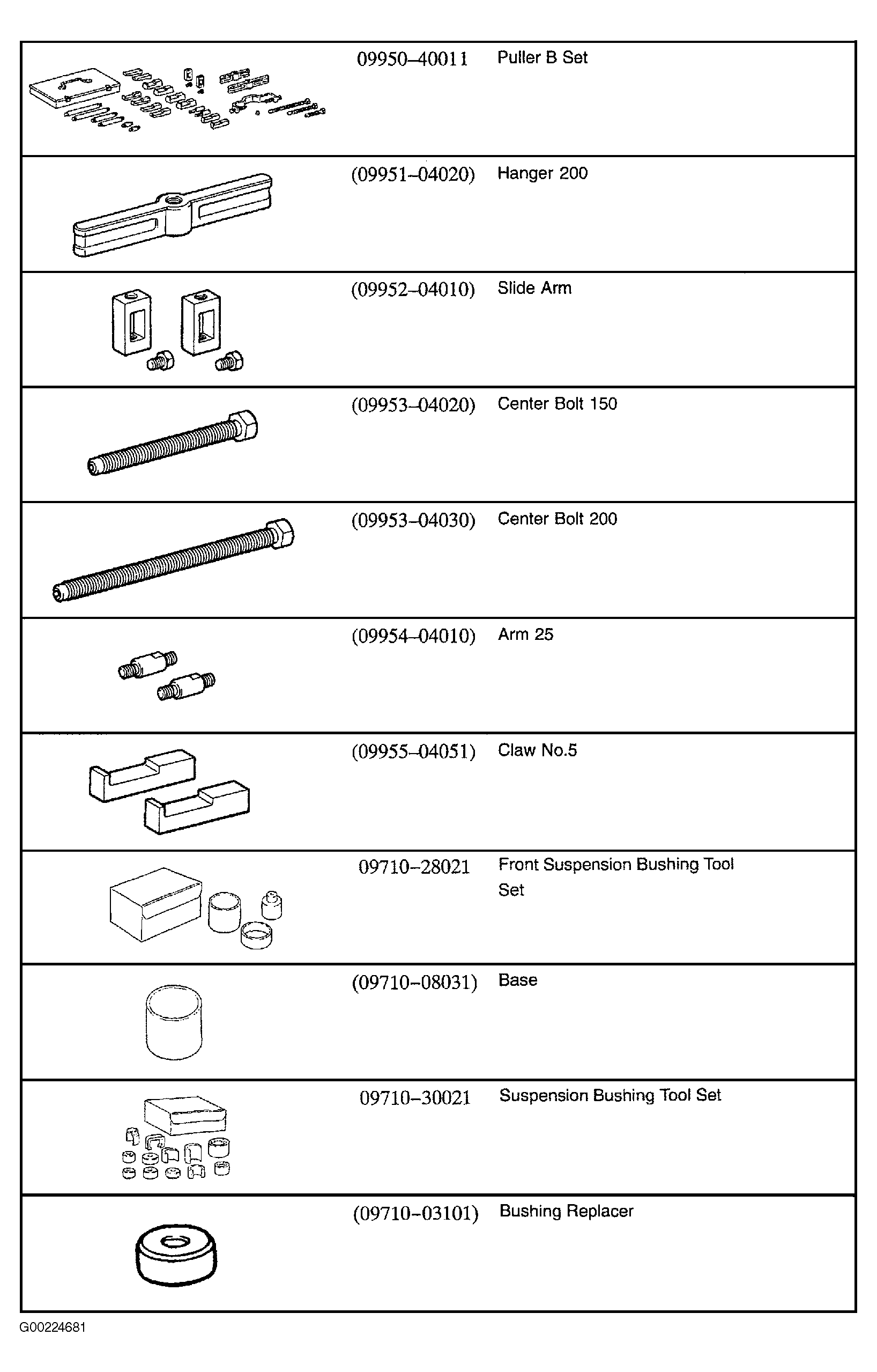

Fig 2: Identifying Special Tools (2 Of 3)
G00224681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

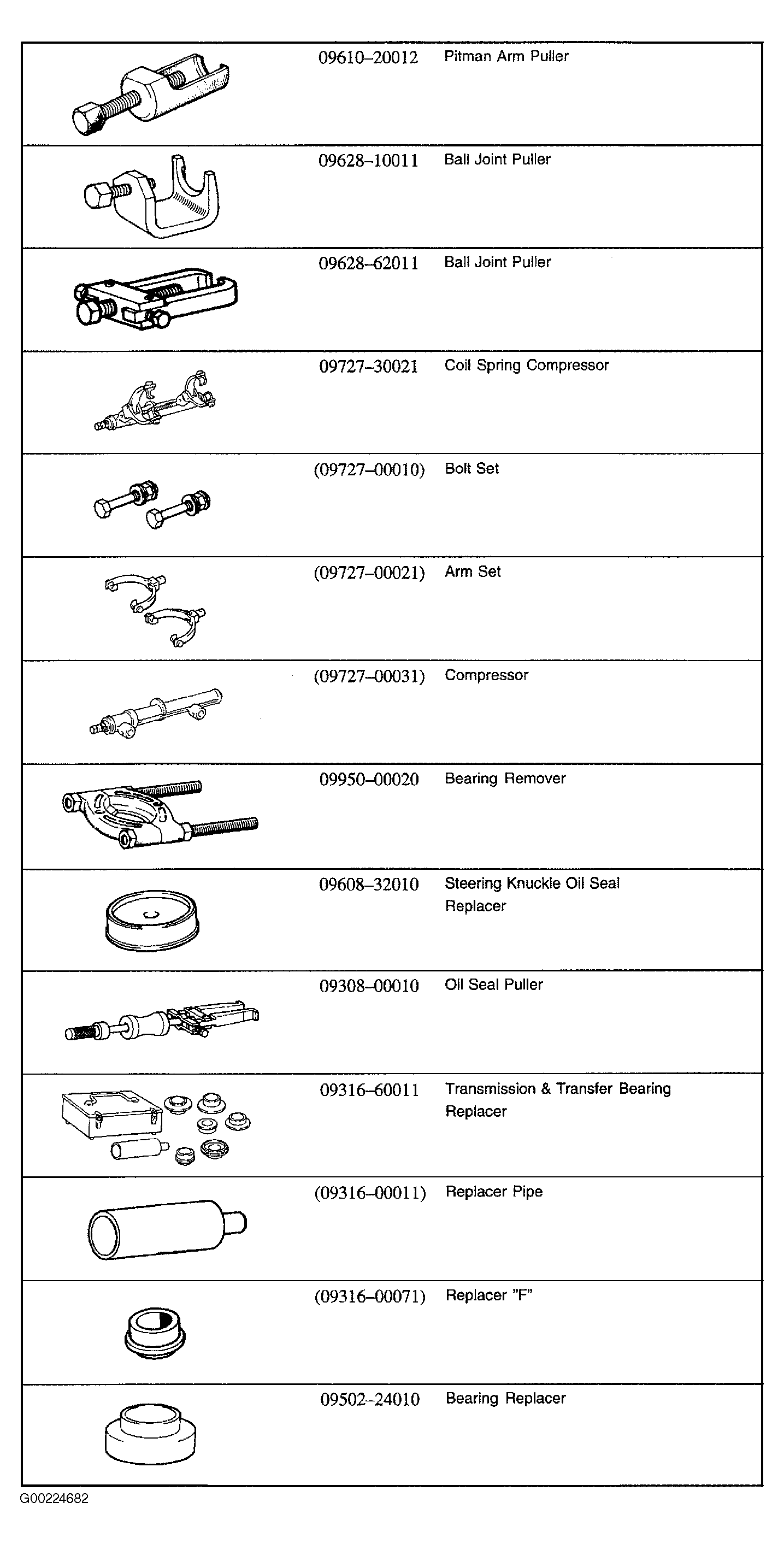

Fig 3: Identifying Special Tools (3 Of 3)
G00224682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
