How To Determine Bolt Strength

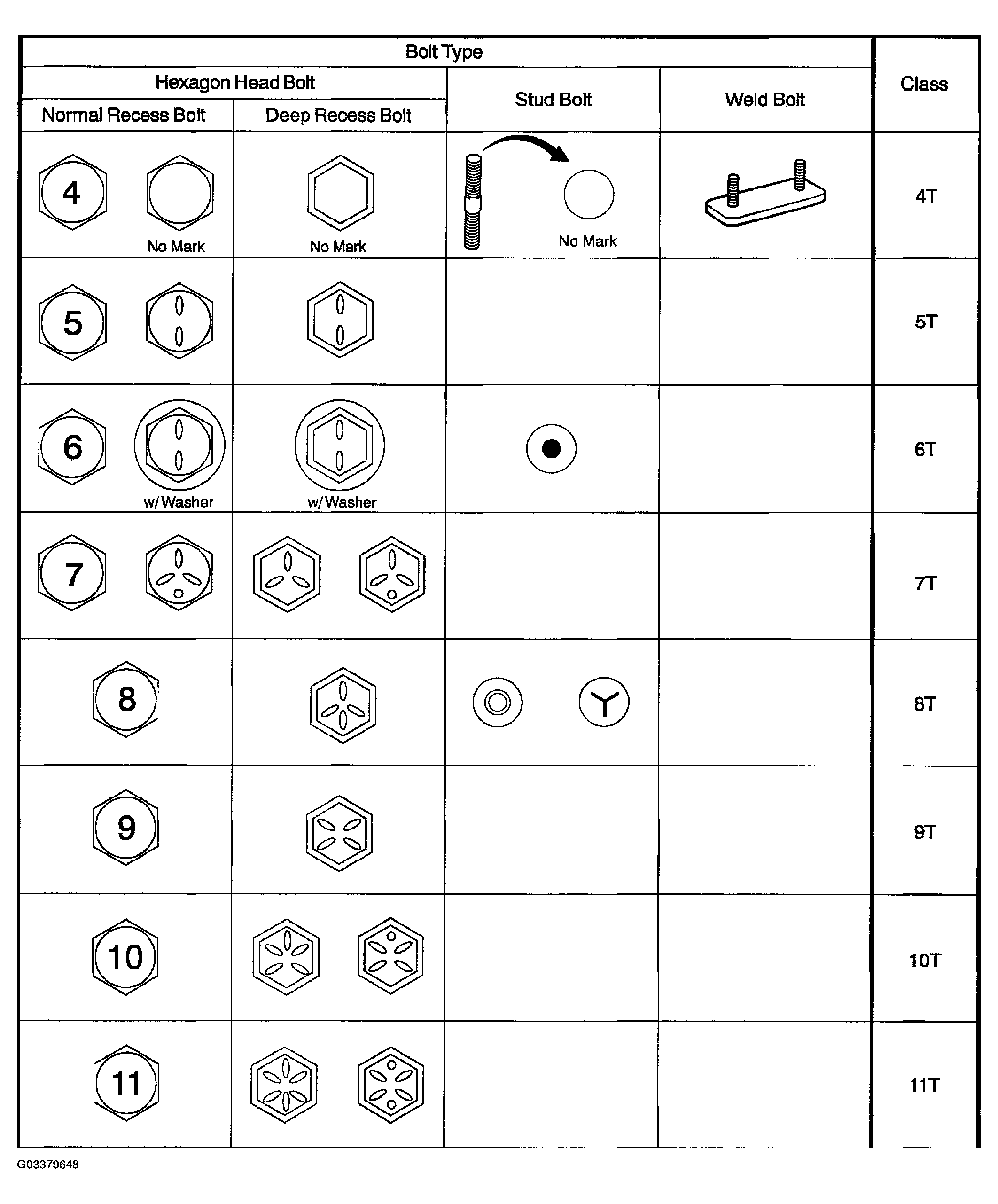

Fig 1: Hexagon Head Bolt Specifications Chart

G03379648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
