Instrument Panel (On-Vehicle Service): Removal

  1. REMOVE CENTER CLUSTER FINISH PANEL
    1. w/ LEXUS navigation system:

      Using a screwdriver, remove center register opening cover.

      HINT:

      Tape the screwdriver tip before use.

    2. w/ LEXUS navigation system:

      Remove the 2 screws.

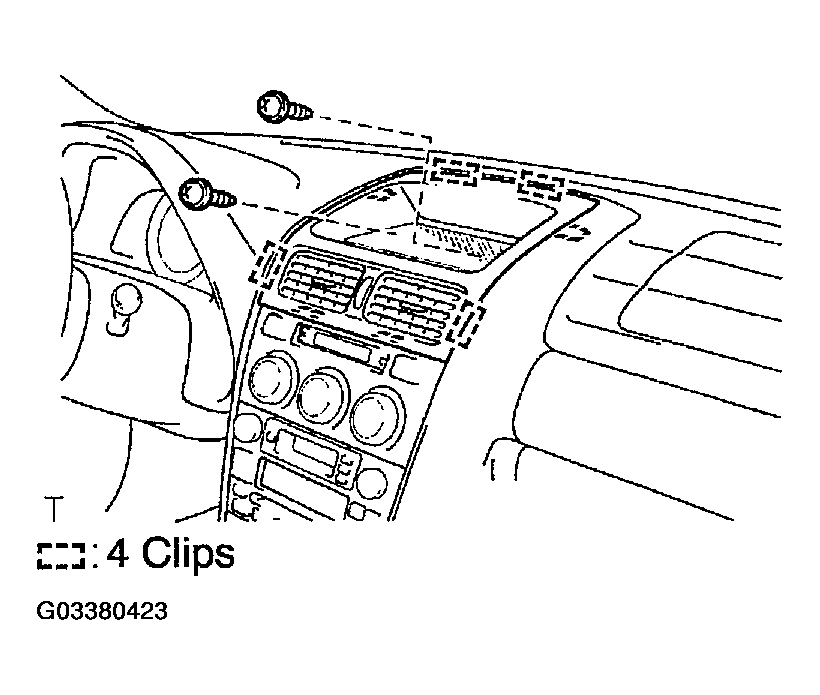

      Fig 1: Removing Center Cluster Finish Panel
      G03380423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, remove center cluster finish panel.

      HINT:

      Tape the screwdriver tip before use.

    4. w/ LEXUS navigation system:

      Disconnect the connectors.

  2. REMOVE LOWER CENTER CLUSTER FINISH PANEL
    1. Using a screwdriver, remove the lower center cluster finish panel.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connectors.

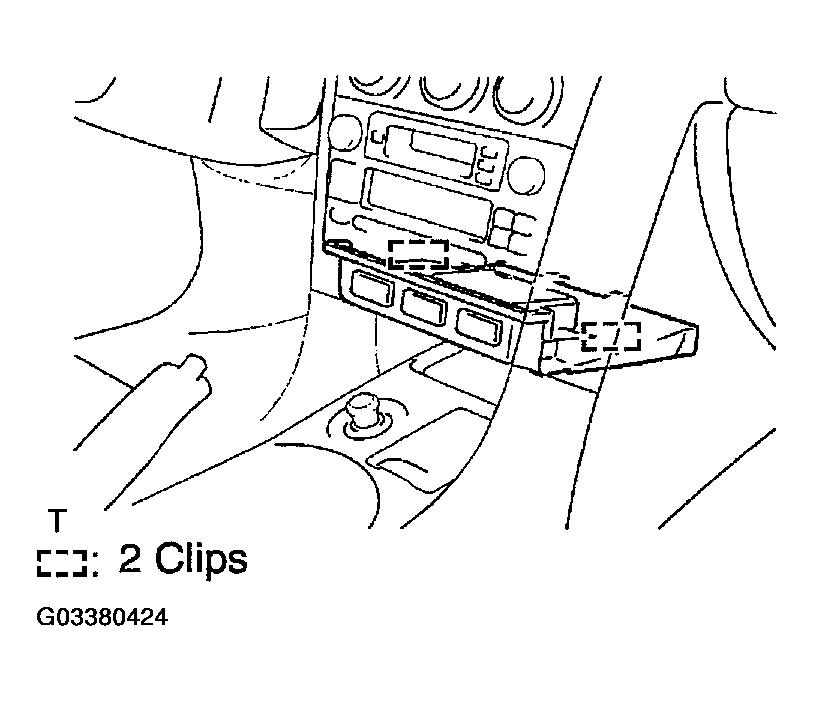

      Fig 2: Removing Lower Center Cluster Finish Panel
      G03380424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE A/C CONTROL WITH RADIO RECEIVER ASSEMBLY
    1. Remove the 4 bolts and A/C control with radio receiver assembly.
    2. Disconnect the connectors.

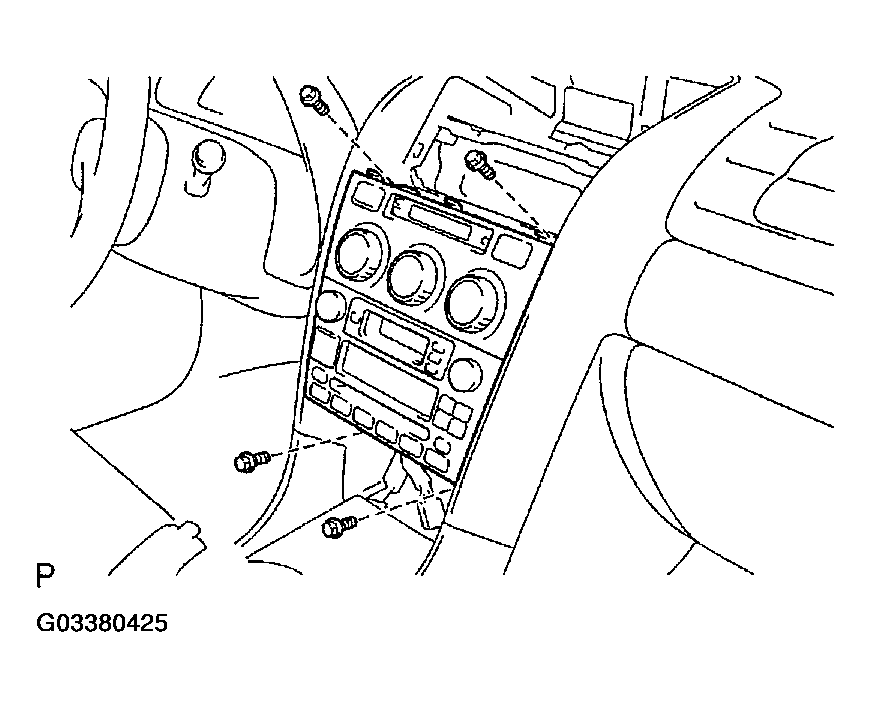

      Fig 3: Removing A/C Control With Radio Receiver Assembly
      G03380425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE UPPER CONSOLE PANEL
    1. M/T:

      Remove the shift lever knob.

    2. Using a screwdriver, remove the upper console panel as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connector.

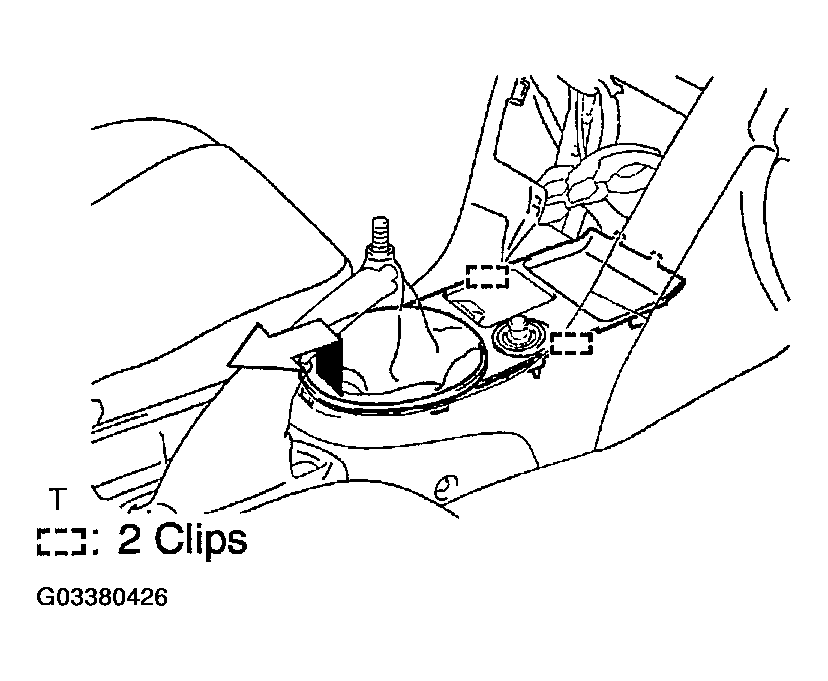

      Fig 4: Removing Upper Console Panel
      G03380426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE PARKING BRAKE HOLE COVER

    Using a screwdriver, remove the parking brake hole cover.

    HINT:

    Tape the screwdriver tip before use.

    Fig 5: Removing Parking Brake Hole Cover
    G03380427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. w/o ARM REST:

    REMOVE CONSOLE BOX

    1. Remove the 6 screws.
    2. w/o LEXUS navigation system:

      Pull the console box rearward to remove it.

    3. w/ LEXUS navigation system:

      Pull the console box rearward to remove it, then disconnect the connector.

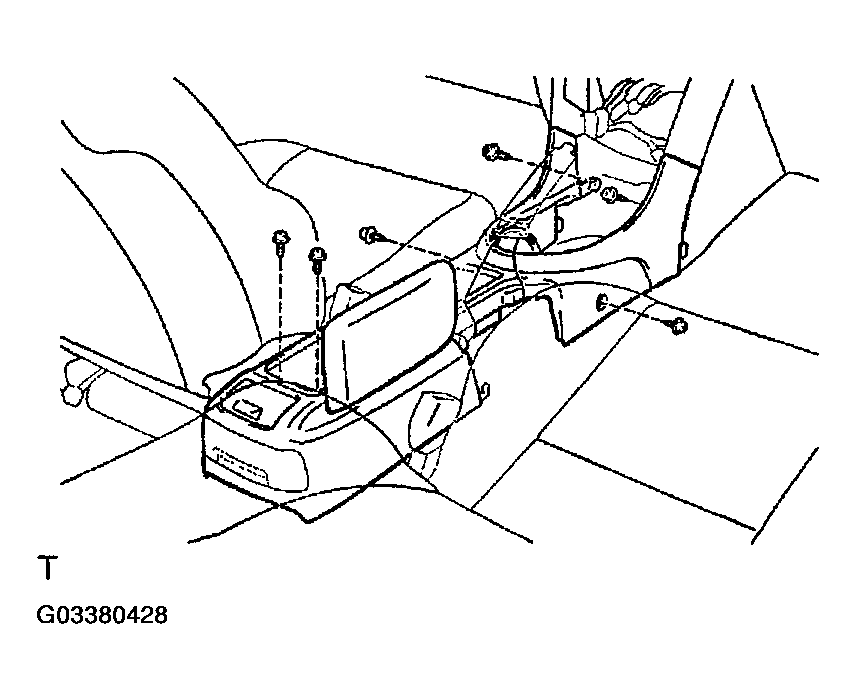

      Fig 6: Removing Console Box
      G03380428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. w/ ARM REST:

    REMOVE CONSOLE BOX

    1. Using a screwdriver, remove the box side No.1 and No.2 panel.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 bolts and console compartment door.
    3. Remove the console box cover rear.
    4. Remove the 6 screws.

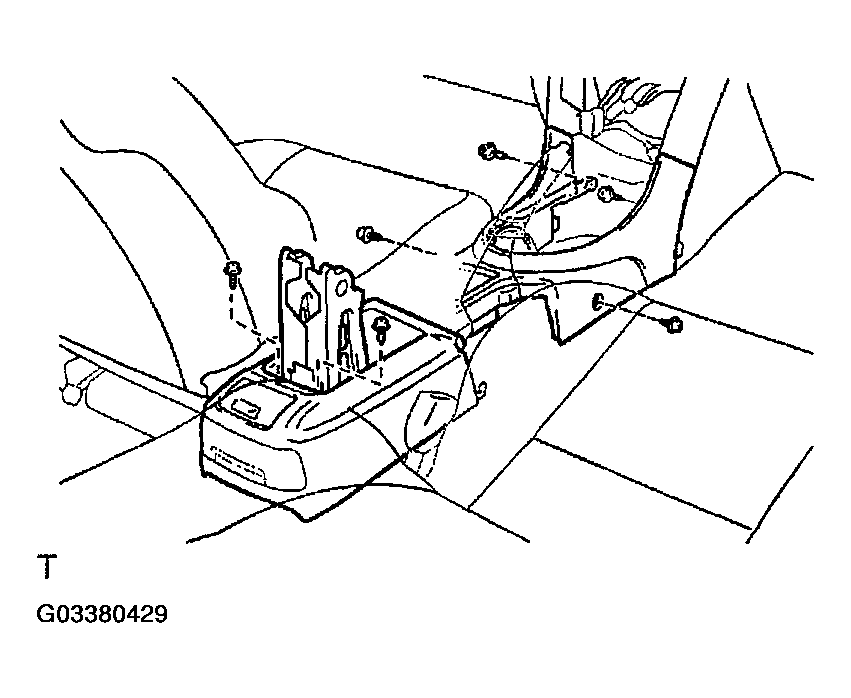

      Fig 7: Removing Console Box - W/ Arm Rest
      G03380429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/o LEXUS navigation system:

      Pull the console box rearward to remove it.

    6. w/ LEXUS navigation system:

      Pull the console box rearward to remove it, then disconnect the connector.

    7. Remove the 4 bolts and rear console armrest hinge.
  8. DISCONNECT PASSENGER AIRBAG CONNECTOR
    1. Using a clip remover, disengage the connector clamp.
    2. Disconnect the passenger airbag connector.
      NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.

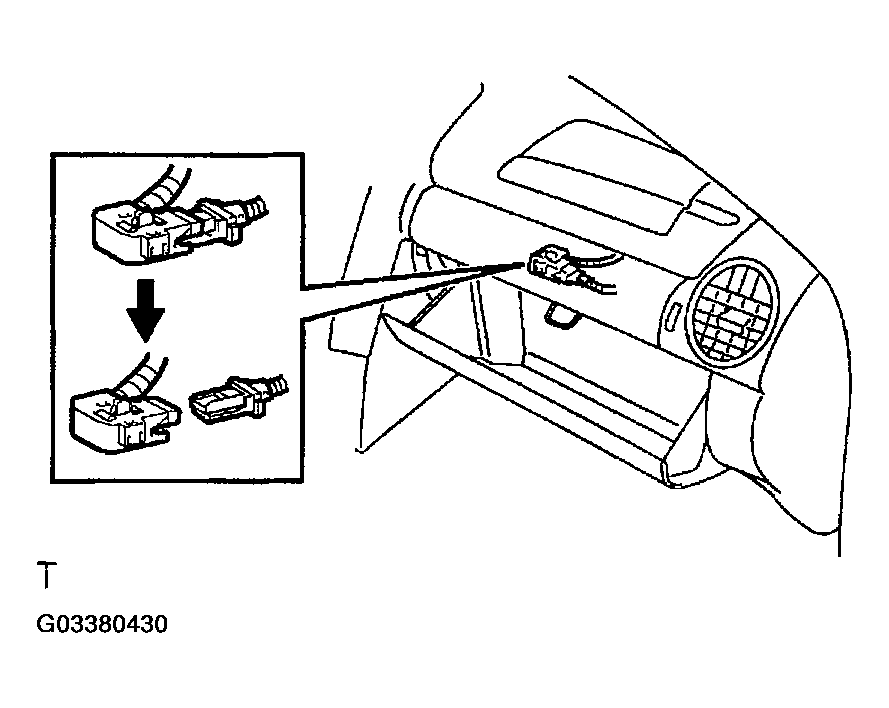

      Fig 8: Disconnecting Passenger Airbag Connector
      G03380430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE GLOVE COMPARTMENT DOOR

    Disconnect the hinge shaft and remove the glove compartment door.

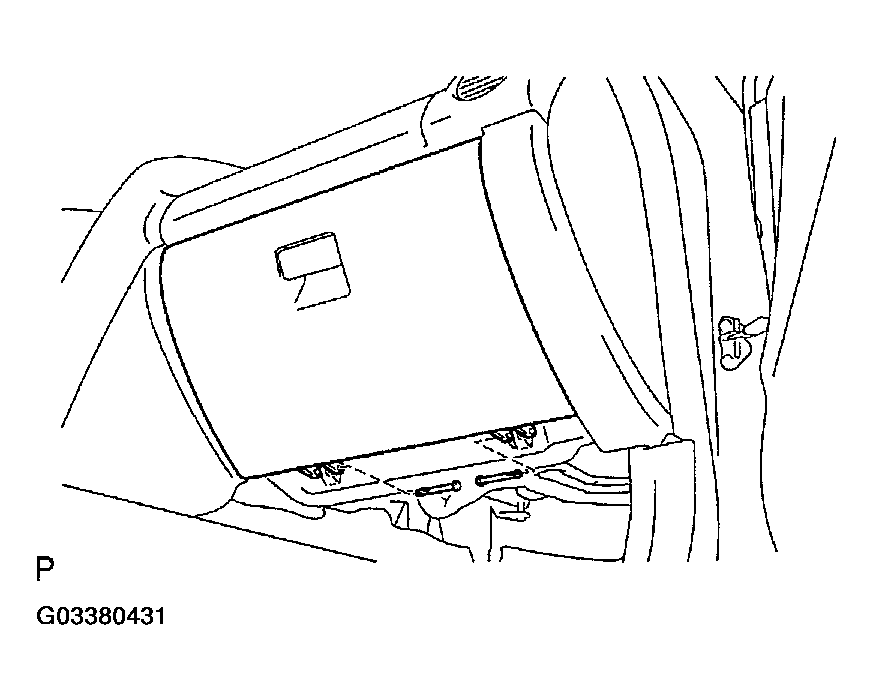

    Fig 9: Removing Glove Compartment Door
    G03380431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

    Remove the 2 bolts, 2 nuts and from passenger airbag assembly from the instrument panel.

    Torque:

    Bolt: 20 N.m (205 kgf.cm, 15 ft.lbf.)

    Nut: 5.5 N.m (56 kgf.cm, 49 in.lbf)

    CAUTION:
    • Do not store the front passenger airbag assembly with the airbag deployment side facing downward.
    • Never disassemble the front passenger airbag assembly.

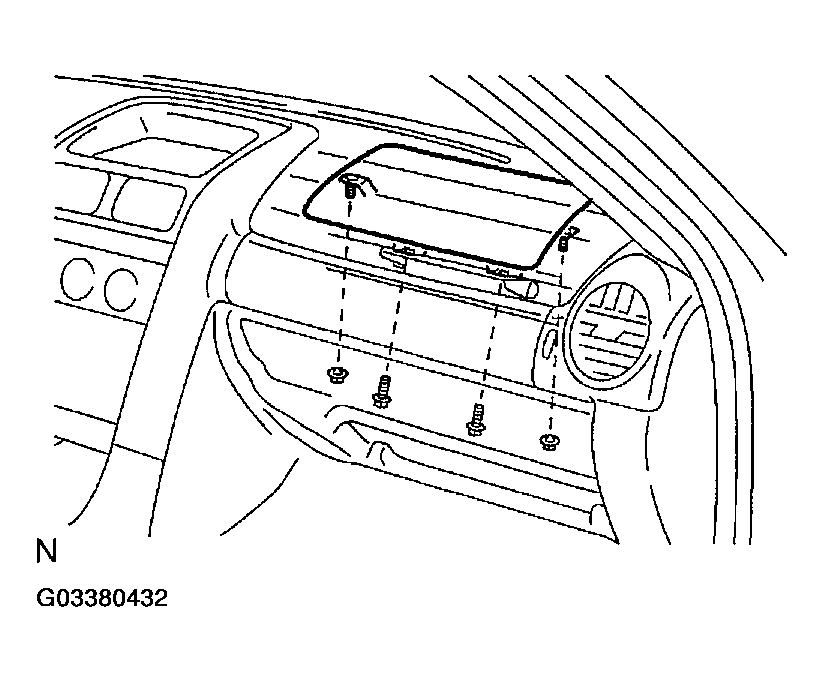

      Fig 10: Removing Front Passenger Airbag Assembly
      G03380432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE STEERING WHEEL PAD (See  REMOVAL  )
  12. REMOVE STEERING WHEEL (See  REMOVAL  )
  13. REMOVE COLUMN UPPER AND LOWER COVERS (See  REMOVAL  )
  14. REMOVE SPIRAL CABLE (See  REMOVAL  )
  15. REMOVE LOWER FINISH PANEL
    1. Remove the 3 screws and lower finish panel.
    2. Disconnect the connectors and hood lock control cable.

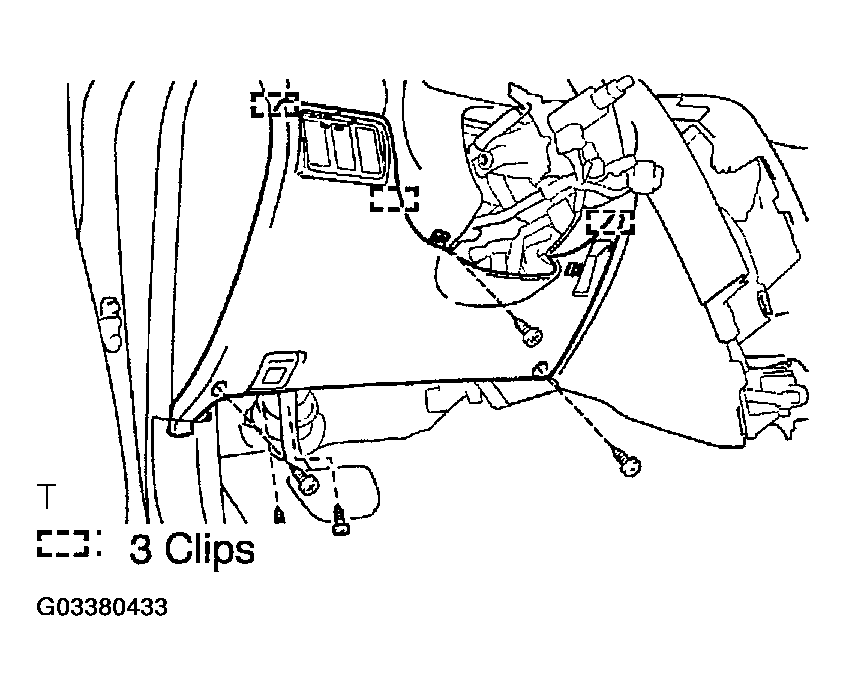

      Fig 11: Removing Lower Finish Panel
      G03380433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CLUSTER FINISH PANEL
    1. Remove the 2 screws.
    2. Using a screwdriver, remove the cluster finish panel.

      HINT:

      Tape the screwdriver tip before use.

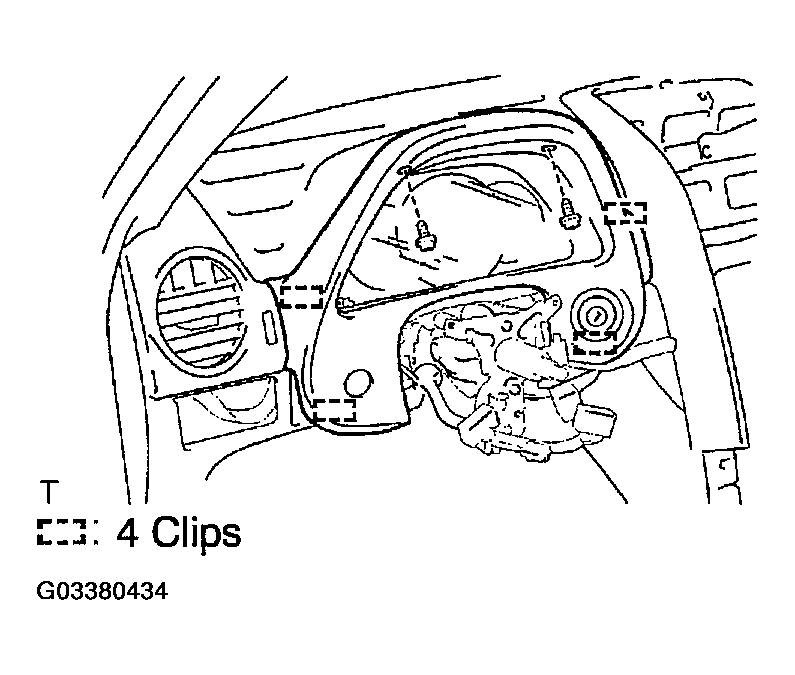

      Fig 12: Removing Cluster Finish Panel
      G03380434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE COMBINATION METER
    1. Remove the 3 screws and combination meter.
    2. Disconnect the connector.

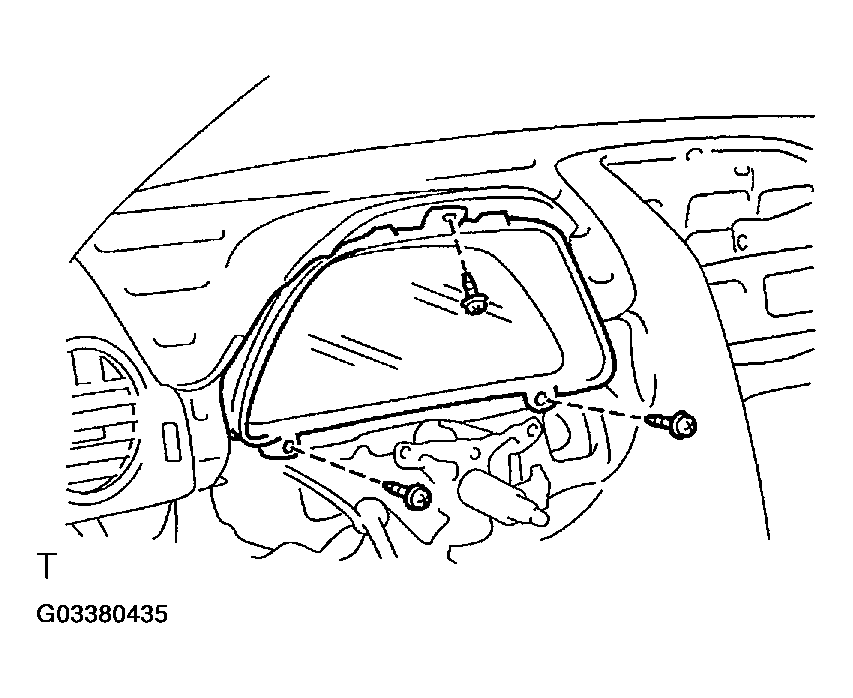

      Fig 13: Removing Combination Meter
      G03380435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR INSIDE SCUFF PLATE
    1. Using a screwdriver, remove the front door inside scuff plate.

      HINT:

      Tape the screwdriver tip before use.

    2. Employ the same manner described above to the other side.
      Fig 14: Removing Front Door Inside Scuff Plate
      G03380436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE COWL SIDE TRIM BOARD
    1. Remove the clip.
    2. Pull the cowl side trim board rearward to remove it.
    3. Employ the same manner described above to the other side.
  20. REMOVE FRONT PART OF FRONT DOOR OPENING TRIMS

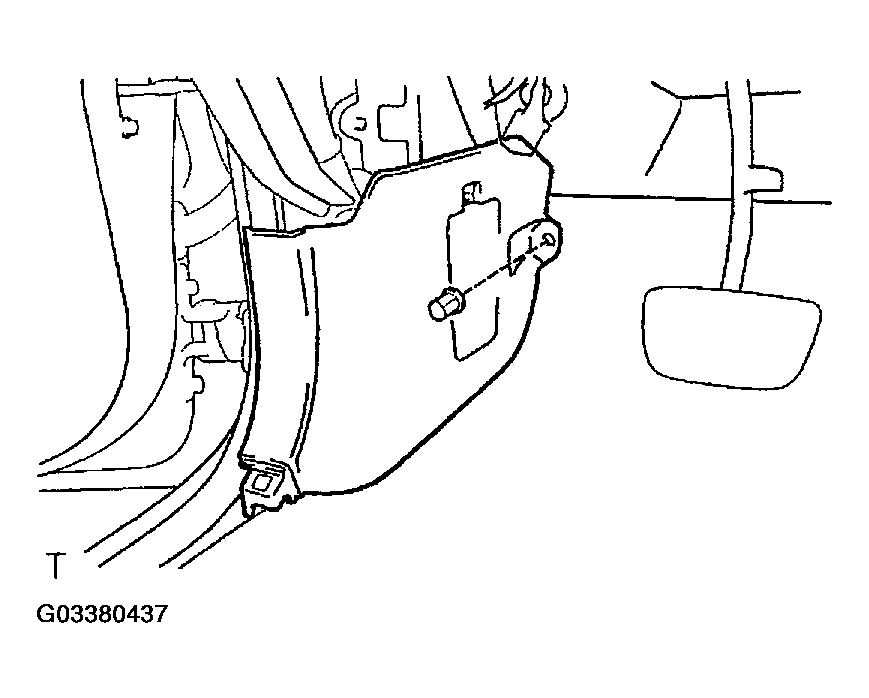

    Fig 15: Removing Front Part Of Front Door Opening Trims
    G03380437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT PILLAR GARNISH
    1. Using a screwdriver, remove the front pillar garnish cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt.
    3. Using a screwdriver, remove the front pillar garnish.
    4. Remove the bolt.

      Torque: 9.8 N.m (100 kgf.cm, 87in.lbf)

      Fig 16: Removing Front Pillar Garnish Cover
      G03380438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Pack the airbag with protection cover.
    6. Employ the same manner described above to the other side.

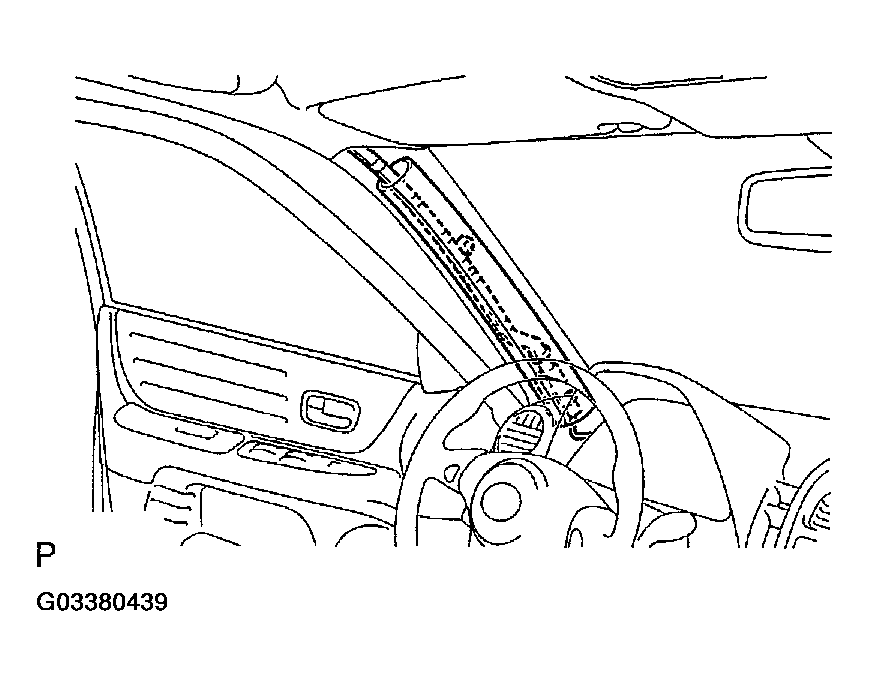

      Fig 17: Packing Airbag With Protection Cover
      G03380439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE INSTRUMENT PANEL
    1. Disconnect the connectors.
    2. Disengage the wire harness clamps.
    3. Remove the 3 bolts, 2 screws and 2 nuts.
    4. Pull the instrument panel rearward to remove it.
      NOTE: Be careful not to damage the instrument panel and wire harness.

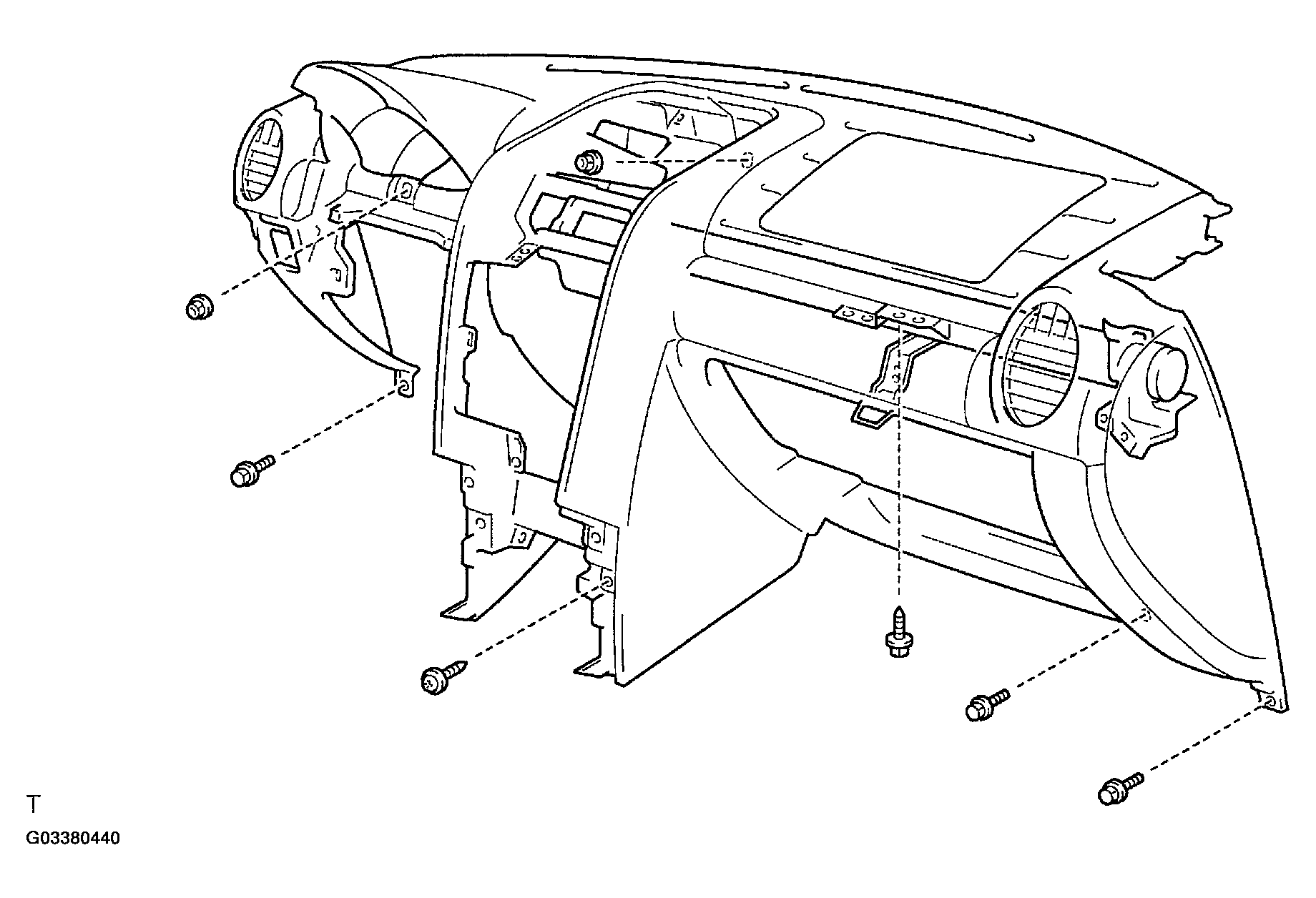

      Fig 18: Removing Instrument Panel
      G03380440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE INSTRUMENT PANEL REINFORCEMENT
    1. Disengage the wire harness clamps.
    2. Remove the 2 nuts and wire harness from the reinforcement.
    3. Remove the bolt and ground cable.
    4. Remove the 2 bolts and LH lower pad insert.
    5. Remove the bolt, screw and No.1 mounting bracket.
    6. Remove the bolt and panel to floor brace LH.
    7. Remove the bolt and No.2 mounting bracket.
    8. Remove the 4 bolts and No.1 brace.
    9. Remove the 5 bolts, 2 nuts, instrument panel reinforcement and lower mounting bracket.
      NOTE: Be careful not to damage the body and wire harness.

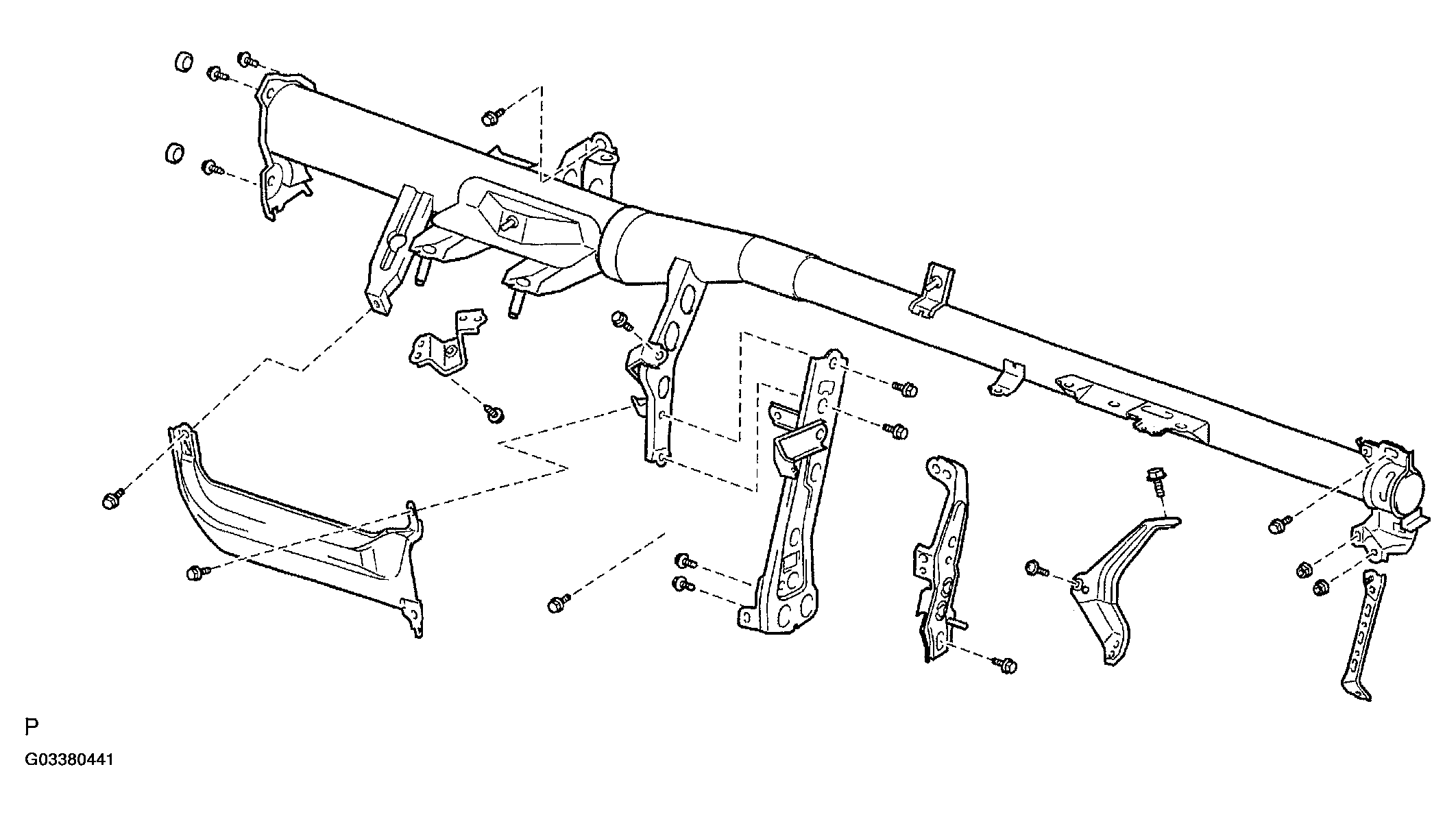

      Fig 19: Removing Instrument Panel Reinforcement
      G03380441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
